KTM 890 Adventure 2021 - Left Side Cover Installation and Storage Closure

WORK 3
15

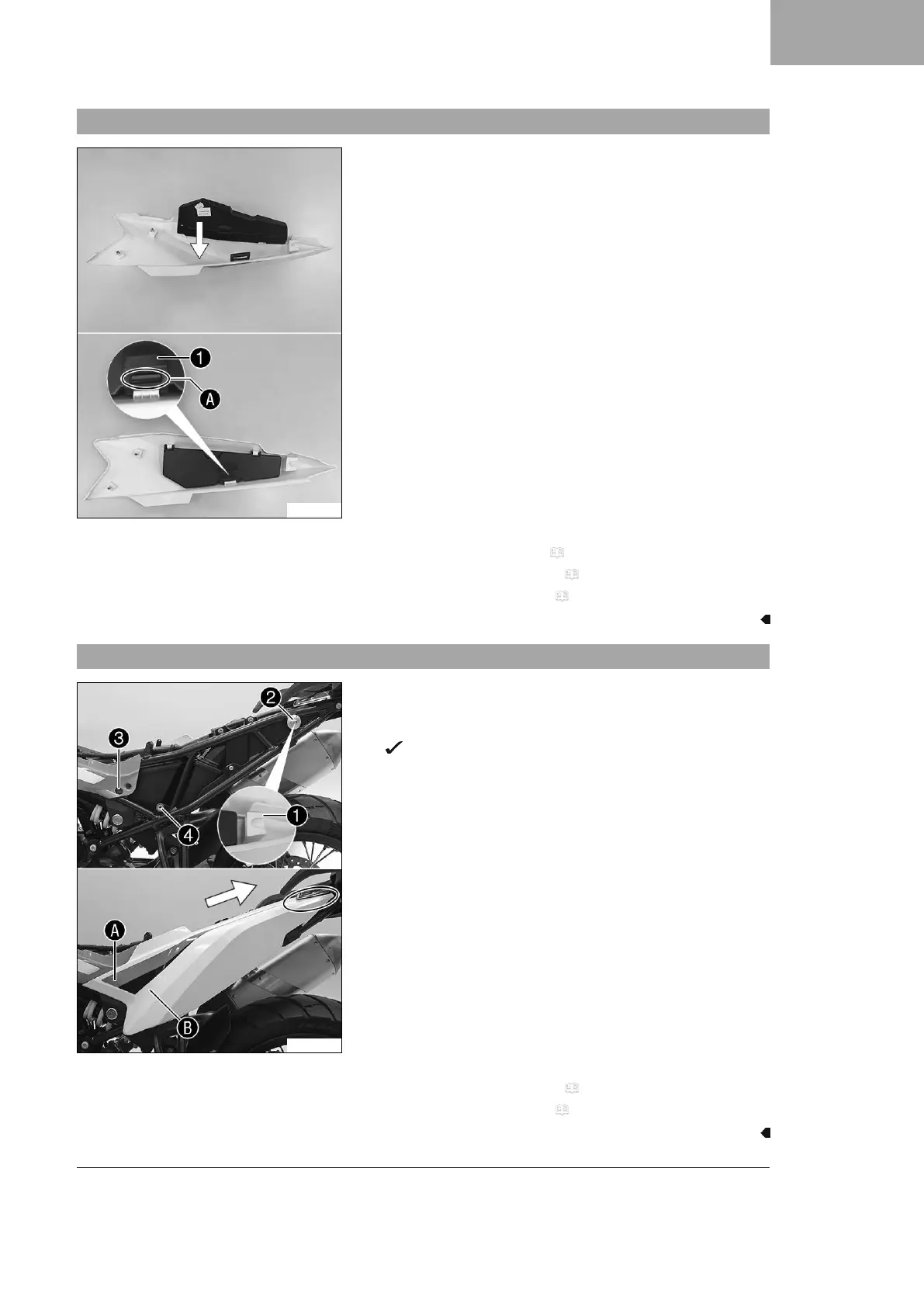

3.8 Closing the storage compartment on the left
F01899-10
Main work
– Close the storage compartment.
–
Raise elastic fastener
1
and hang up in area
A
.
Finishing work
– Install the left side cover. ( p. 15)
– Mount the front rider's seat. ( p. 13)
– Mount the passenger seat. ( p. 13)
3.9 Installing the left side cover
F03349-10
Main work
–
Position the left side cover with holding lug
1
on bushing
2
and push backward.
The left side cover engages under the tail part.
–
Press the left side cover in area
A
into rubber bushing
3
and press into rubber bushing
B
in area
4
.
Finishing work
– Mount the front rider's seat. ( p. 13)
– Mount the passenger seat. ( p. 13)
