– The rider now mounts the motorcycle with luggage and passen-
ger if applicable.
– Check the headlight setting.
The light-dark boundary must be exactly on the lower mark-
ing when the motorcycle is ready to be operated with the
rider mounted along with any luggage and a passenger if
applicable.
» If the boundary between light and dark does not meet
specifications:
– Adjust headlight range. ( p. 22)

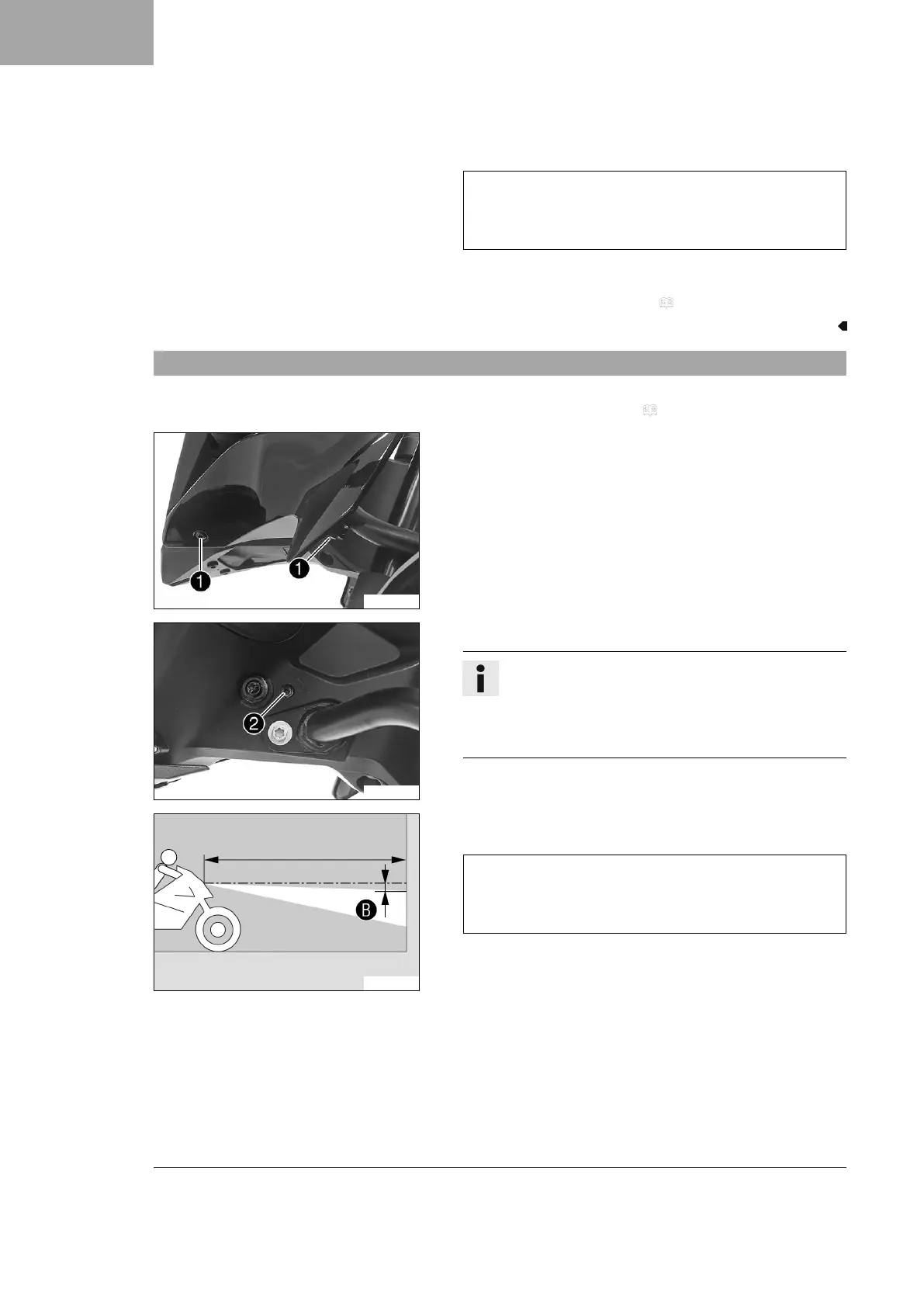

3.20 Adjusting the headlight range
Preparatory work
– Check the headlight setting. ( p. 21)
F01992-10
Main work
–
Remove screws
1
.
– Remove the left mask spoiler.
F01993-10
–
Turn adjusting screw
2
to adjust the headlight range.
Info
Turn clockwise to reduce the headlight range; turn
counterclockwise to increase the headlight range.
If you have a payload, you may have to correct the
headlight range.
400726-11
–
Set the headlight to marking
B
.
Guideline
The light-dark boundary must lie exactly on lower mark-
ing
B
when the motorcycle is ready to operate with the
rider mounted along with any luggage and a passenger, if
applicable.
