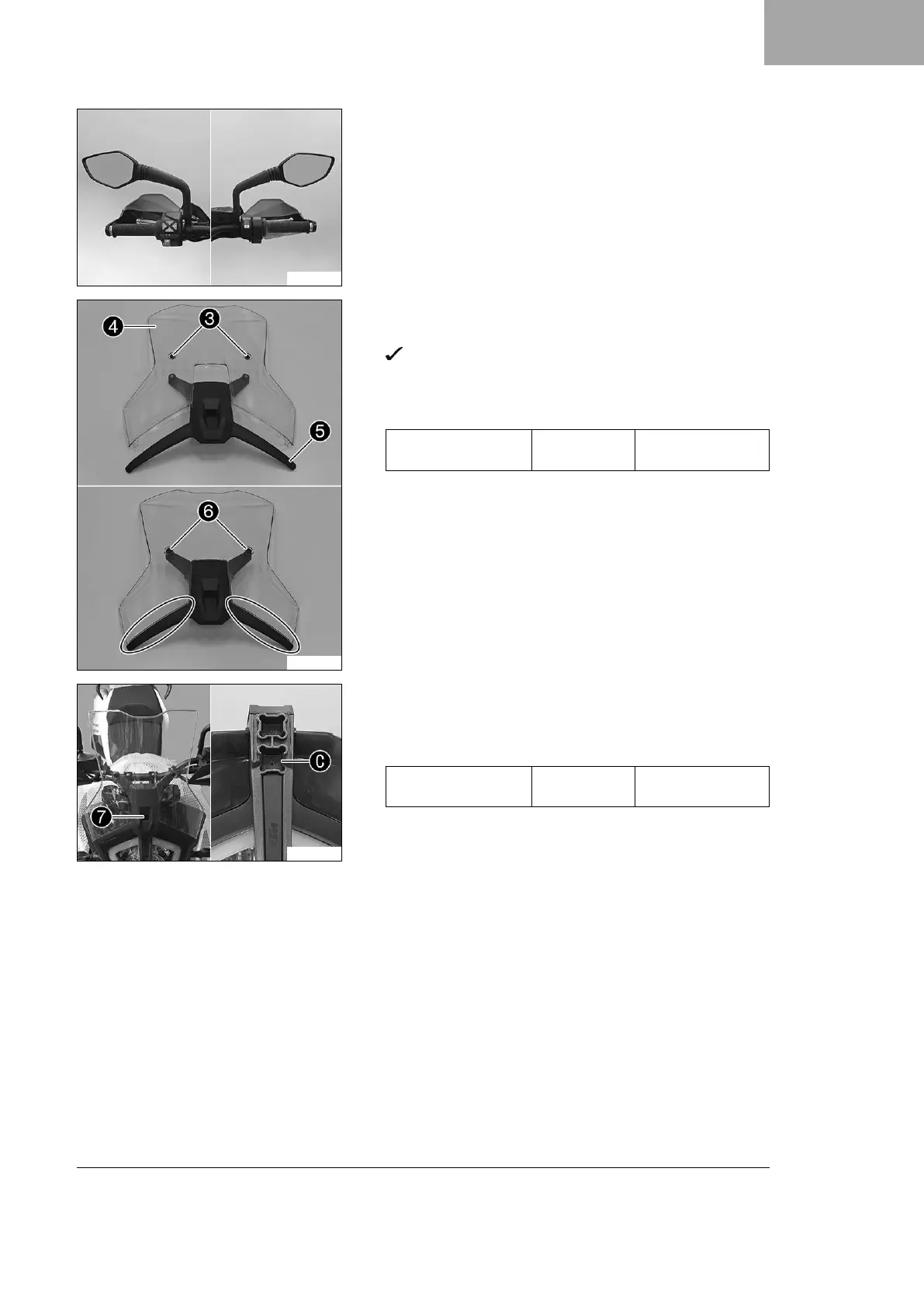

KTM 890 Adventure 2021 - Windshield Installation

SETUP 2
7
F02144-01
– Mount and tighten the rear mirror on both sides.
F02134-10
–
Mount rubber bushings
3
on windshield
4
.
–
Mount windshield
4
on windshield bracket
5
.
The windshield engages on the left and right in the
recesses of the windshield bracket.
–
Mount and tighten screws
6
.
Guideline
Remaining screws,
chassis
M5 5 Nm (3.7 lbf ft)
F02133-10
– Position the windshield bracket with the windshield in lower
recess
C
.
–
Mount and tighten screw
7
.
Guideline
Remaining screws,
chassis
M5 5 Nm (3.7 lbf ft)
