TUNING THE CHASSIS 12
139
F02737-10
–

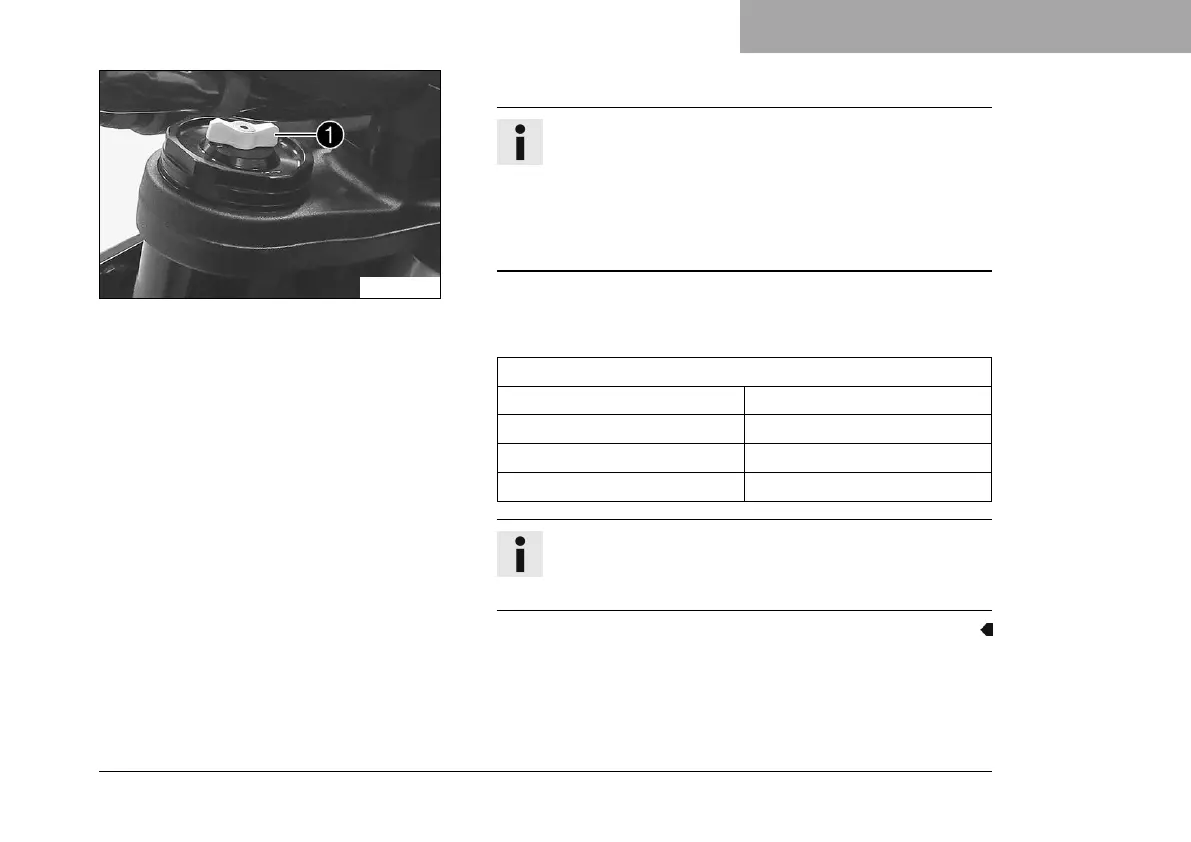

Turn white adjuster
1
clockwise as far as it will go.
Info
Adjuster
1
is located at the upper end of the left fork
leg.
The compression damping is located in left fork
leg COMP (white adjuster). The rebound damping is
located in right fork leg REB (red adjuster).
– Turn counterclockwise by the number of clicks corresponding
to the fork type.
Guideline
Compression damping
Comfort 20 clicks
Standard 15 clicks
Sport 4 clicks
Full payload 15 clicks
Info
Turn clockwise to increase damping; turn counterclock-
wise to reduce damping during compression.
