16 ELECTRICAL SYSTEM
206

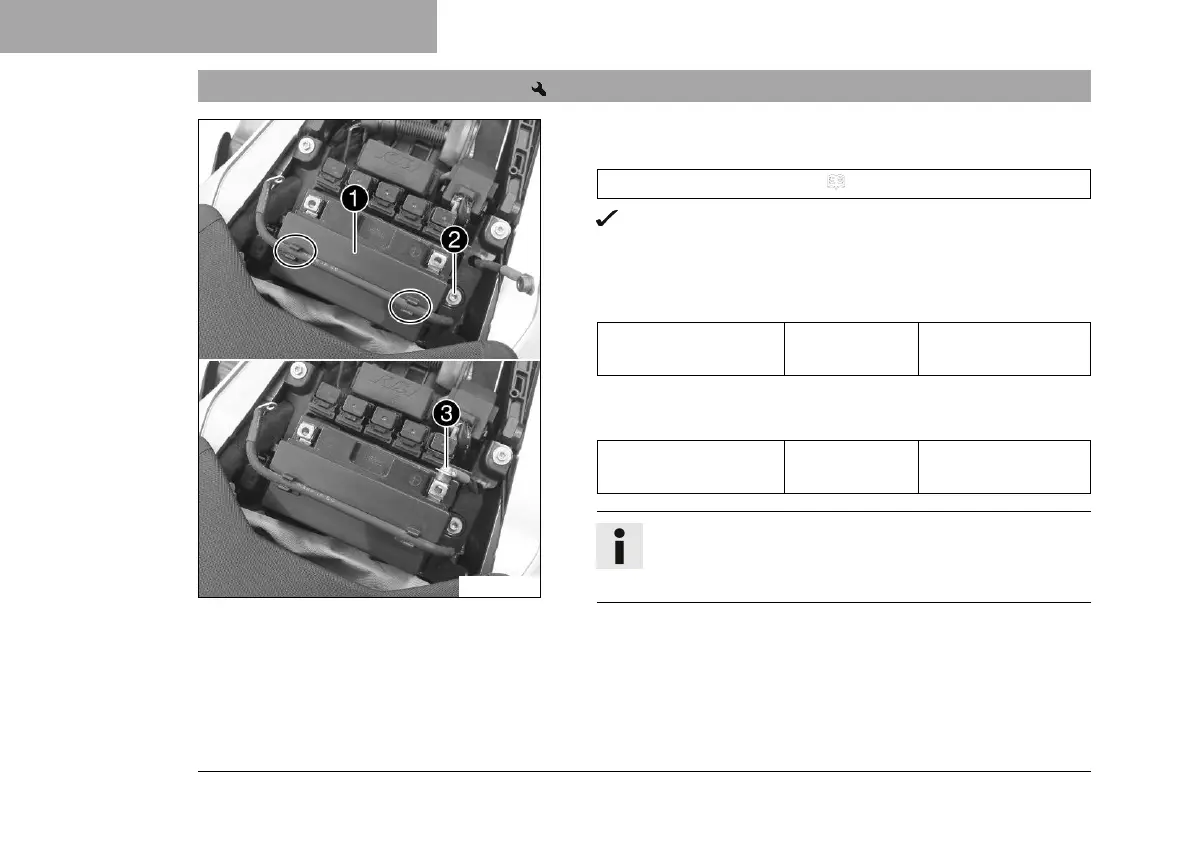

16.3 Installing the 12-V battery
V01202-10
Main work
– Position the 12-V battery in the battery compartment.
12 V battery (HTZ12A-BS) ( p. 276)
The battery terminals face opposite the direction of travel.
–
Position battery support bracket
1
.
–
Mount and tighten screw
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
–
Connect positive cable
3
to the 12 V battery.
Guideline
Screw, battery termi-
nal
M6x20 4.5 Nm
(3.32 lbf ft)
Info
Make sure the cable lies in the recess provided for this
next to the battery compartment.
– Hook negative cable into the holders on the battery support
bracket.
