12
TUNING
THE
CHASSIS
144
F02739-11
–

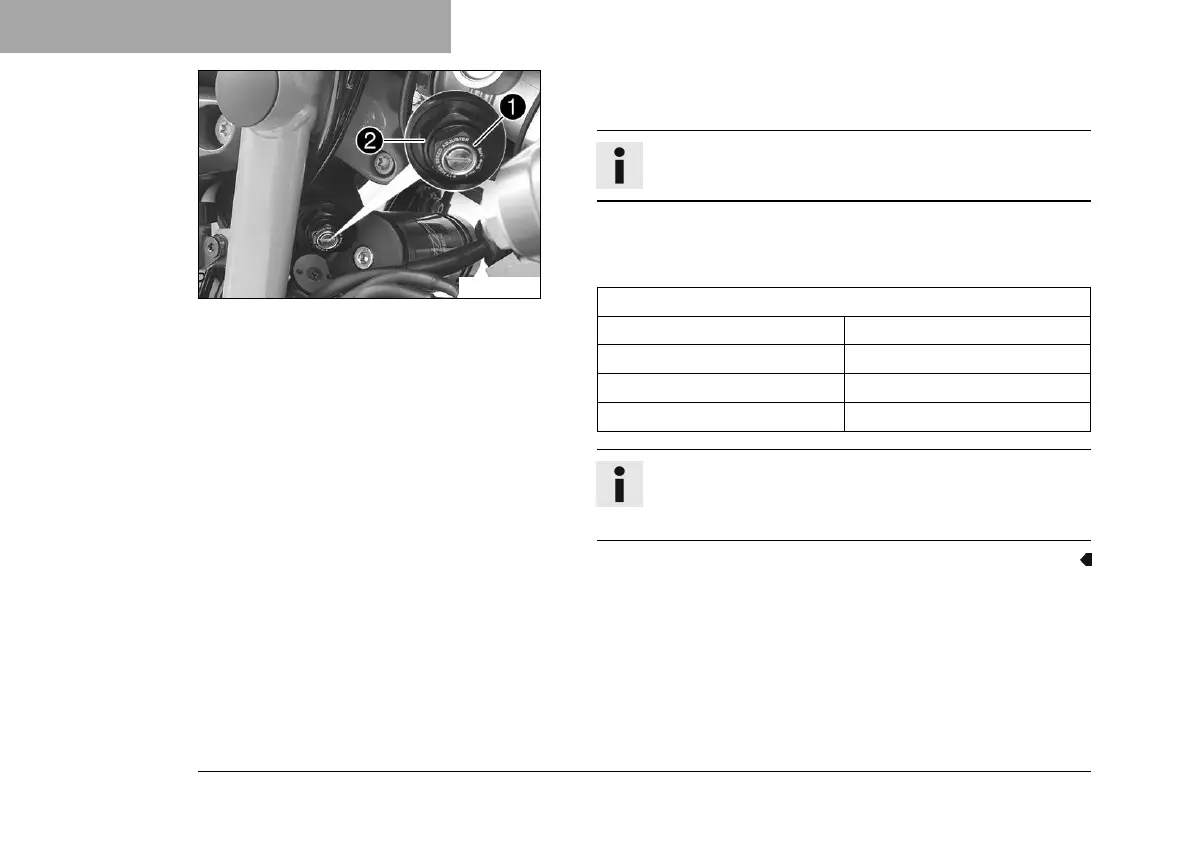

Using
an
open
end
wrench,
turn
adjusting
screw
1
clockwise
all
the
way.
Info
Do
not
loosen
fitting
2
!
–
Turn
counterclockwise
by
the
number
of
turns
corresponding
to
the
shock
absorber
type.
Guideline
High-speed
compression
damping
Comfort
1.5
turns
Standard
1
.5
turns
Sport
1.5
turns
Full
payload
1.5
turns
Info
Turn
clockwise
t
o
increase
damp
ing;
turn
counte
rclock-
wise
to
reduce
damping
during
fast
compressio
n.
145
147
Table of Contents
Table of Contents
5
Means of Representation
12
Symbols Used
12
Formats Used
13
Safety Advice
14
Use Definition - Intended Use
14
Misuse
14
Degrees of Risk and Symbols
15
Tampering Warning
16
Safe Operation
16
Protective Clothing
17
Work Rules
18
Environment
18
Owner's Manual
19
Important Notes
20
Manufacturer Warranty, Implied Warranty
20
Fuel, Auxiliary Substances
20
Spare Parts, Accessories
20
Service
21
Figures
21
Customer Service
21
View of Vehicle
22
View of Vehicle, Front Left (Example)
22
View of Vehicle, Rear Right (Example)
24
Serial Numbers
26
Vehicle Identification Number
26
Type Label
26
Key Number
27
Engine Number
27
Fork Part Number
28
Shock Absorber Article Number
28
Steering Damper Article Number
29
Controls
30
Clutch Lever
30
Hand Brake Lever
30
Throttle Grip
31
Switches on the Left Side of the Handlebar
31
Combination Switch
31
Light Switch
32
Cruise Control System Tip Switch (Optional)
33
Menu Buttons
36
Turn Signal Switch
37
Horn Button
38
Switches on the Right Side of the Handlebar
38
Start Button/Emergency off Switch
38
Ignition and Steering Lock
39
Opening Fuel Tank Filler Cap
40
Closing the Fuel Tank Filler Cap
42
Seat Lock
43
Tool Set
43
Grab Handle
44
Passenger Foot Pegs
45
Shift Lever
46
Foot Brake Lever
47
Side Stand
47
Combination Instrument 7
49
Activation and Test
49
Day-Night Mode
51
Warnings
52
Indicator Lamps
54
Display
58
TRACK Display (Optional)
60
Heated Grip (Optional)
61
Cruise Control Indicator (Optional)
62
Fuel Level Display
62
Coolant Temperature Indicator
63
Trip Odometer
64
Time
65
ABS Display
65
Shift Warning Light
66
Menu
67
Favorites
67
Trip 1
68
Trip 2
69
General Info
70
Settings
71
Bluetooth ® (Optional)
71
Distance
72
Temperature
73
Pressure
74
Consumption
75
Language
76
Clock/Date
76
Drl
77
TPMS Warning
79
Quick Selector 1
80
Quick Selector 2
81
Set Favorites
82
Heated Grips (Optional)
83
Service
84
Extra Functions
84
Warnings
85
Ride Mode
86
Track (Optional)
87
Anti-Wheelie Mode (Optional)
88
Launch Control (Optional)
89
Heated Grips (Optional)
89
Mtc
90
MTC + MSR (Optional)
91
ABS Mode
92
Quickshifter + (Optional)
93
Shift Light
93
KTM MY RIDE (Optional)
94
Pairing (Optional)
95
Audio Player (Optional)
97
Telephony (Optional)
99
Ergonomics
100
Handlebar Position
100
Adjusting the Handlebar Position
100
Adjusting the Basic Position of the Clutch Lever
102
Adjusting the Basic Position of the Hand Brake Lever
103
Adjusting the Response of the Hand Brake Lever
104
Adjusting the Basic Position of the Foot Brake Lever
105
Checking the Basic Position of the Shift Lever
107
Adjusting the Basic Position of the Shift Lever
108
Preparing for Use
110
Advice on Preparing for First Use
110
Running in the Engine
112
Loading the Vehicle
112
Riding Instructions 10
115
Checks and Maintenance Measures When Preparing for Use
115
Starting the Vehicle
116
Starting off
117
Launch-Control (Optional)
118
Starting off with Launch Control (Optional)
118
Quickshifter + (Optional)
120
Shifting, Riding
121
Engine Traction Torque Control (MSR)
127
Applying the Brakes
128
Stopping, Parking
130
Transporting
132
Refueling
133
Service Schedule
136
Additional Information
136
Required Work
136
Recommended Work
139
Tuning the Chassis
140
Fork/Shock Absorber
140
Adjusting the Compression Damping of the Fork
140
Adjusting the Rebound Damping of the Fork
142
Compression Damping of the Shock Absorber
143
Adjusting the Low-Speed Compression Damping of the Shock Absorber
144
Adjusting the High-Speed Compression Damping of the Shock Absorber
145
Adjusting the Rebound Damping of the Shock Absorber
147
Adjusting the Spring Preload of the Shock Absorber
148
Service Work on the Chassis
150
Raising the Motorcycle with the Rear Lifting Gear
150
Removing the Rear of the Motorcycle from the Lifting Gear
150
Lifting the Motorcycle with the Front Lifting Gear
151
Taking the Motorcycle off the Front Lifting Gear
153
Cleaning the Dust Boots of the Fork Legs
154
Removing the Passenger Seat
156
Mounting the Passenger Seat
157
Removing the Front Rider's Seat
158
Mounting the Front Rider's Seat
159
Checking the Chain for Dirt
160
Cleaning the Chain
161
Checking the Chain Tension
163
Adjusting the Chain Tension
165
Checking the Chain, Rear Sprocket, Engine Sprocket, and Chain Guide
167
Brake System 14
171
Anti-Lock Braking System (ABS)
171
Checking the Brake Discs
173
Checking the Front Brake Fluid Level
174
Adding Front Brake Fluid
175
Checking the Front Brake Linings
178
Checking the Free Travel of the Foot Brake Lever
179
Checking the Rear Brake Fluid Level
180
Adding Rear Brake Fluid
181
Checking the Brake Linings of the Rear Brake
184
Wheels, Tires 15
185
Removing the Front Wheel
185
Installing the Front Wheel
187
Removing the Rear Wheel
191
Installing the Rear Wheel
194
Checking the Rear Hub Damping Rubber Pieces
197
Checking the Tire Condition
199
Checking Tire Pressure
201
Using Tire Repair Spray
203
Electrical System
204
Daytime Running Light (DRL)
204
Removing the 12-V Battery
205
Installing the 12-V Battery
208
Charging the 12-V Battery
210
Changing the Main Fuse
213
Changing the ABS Fuses
216
Changing the Fuses of Individual Electrical Power Consumers
218
Loosening the Headlight Mask with the Headlight
221
Mounting the Headlight Mask with the Headlight
222
Removing the Cover of the Headlight Mask Rack
223
Installing the Cover of the Headlight Mask Rack
225
Checking the Headlight Setting
227
Adjusting the Headlight Range
228
Diagnostics Connector
229
Front ACC1 and ACC2
229
ACC1 and ACC2 Rear
230
Cooling System 17
231
Checking the Antifreeze and Coolant Level
232
Checking the Coolant Level in the Compensating Tank
234
Draining the Coolant
236
Filling/Bleeding the Cooling System
238
Changing the Coolant
240
Tuning the Engine 18
243
Ride Mode
243
Motorcycle Traction Control (MTC)
244
Slip Adjustment (Optional)
245
Throttle Response (Optional)
245
Service Work on the Engine 19
247
Checking the Engine Oil Level
247
Changing the Engine Oil and Oil Filter, Cleaning the Oil Screens
248
Adding Engine Oil
252
Checking the Free Travel of the Clutch Lever
254
Setting the Free Travel of the Clutch Lever
255
Cleaning, Care
256
Cleaning the Motorcycle
256
Checks and Maintenance Steps for Winter Operation
259
Storage 21
261
Preparing for Use after Storage
263
Troubleshooting
264
Technical Data
268
Engine
268
Engine Tightening Torques
270
Capacities
276
Engine Oil
276
Coolant
276
Fuel
276
Chassis
277
Electrical System
278
Tires
279
Fork
279
Shock Absorber
280
Chassis Tightening Torques
282
Declarations of Conformity
290
Country-Specific Declarations of Conformity
292
Substances 25
293
Auxiliary Substances
296
Standards
298
Index of Special Terms 28
299
List of Abbreviations
300
List of Symbols 30
301
Red Symbols
301
Yellow and Orange Symbols
301
Green and Blue Symbols
302
Index
303
