15 WHEELS, TIRES
196
V01252-10
Main work
–

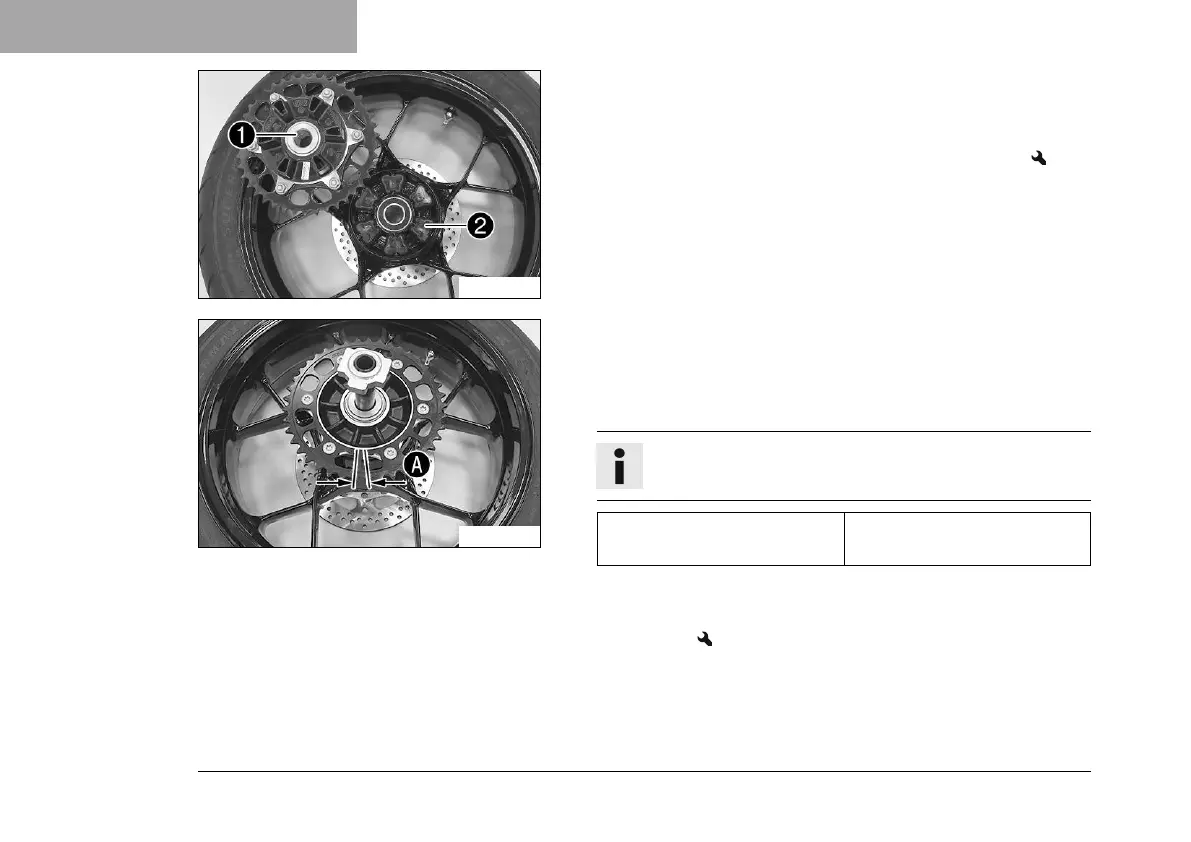

Check bearing
1
.
» If the bearing is damaged or worn:
– Change the bearing of the rear sprocket carrier.
–
Check the damping rubber pieces
2
of the rear hub for dam-
age and wear.
» If the damping rubber pieces of the rear hub are damaged
or worn:
– Change all the damping rubber pieces of the rear hub.
V01253-10
– Lay the rear wheel on a workbench with the rear sprocket fac-
ing upwards and insert the wheel spindle in the hub.
–
To check play
A
, hold the rear wheel tight and try to turn the
rear sprocket with your hand.
Info
Measure the play on the outside of the rear sprocket.
Play of damping rubber
pieces on rear wheel
≤ 5 mm (≤ 0.2 in)
»
If clearance
A
is larger than the specified value:
– Change all the damping rubber pieces of the rear
hub.
