KTM 890 DUKE R 2022 User Manual

2 SETUP
4
Info
The procedure in the event of transport damage is
described in the Customer Service Manual.

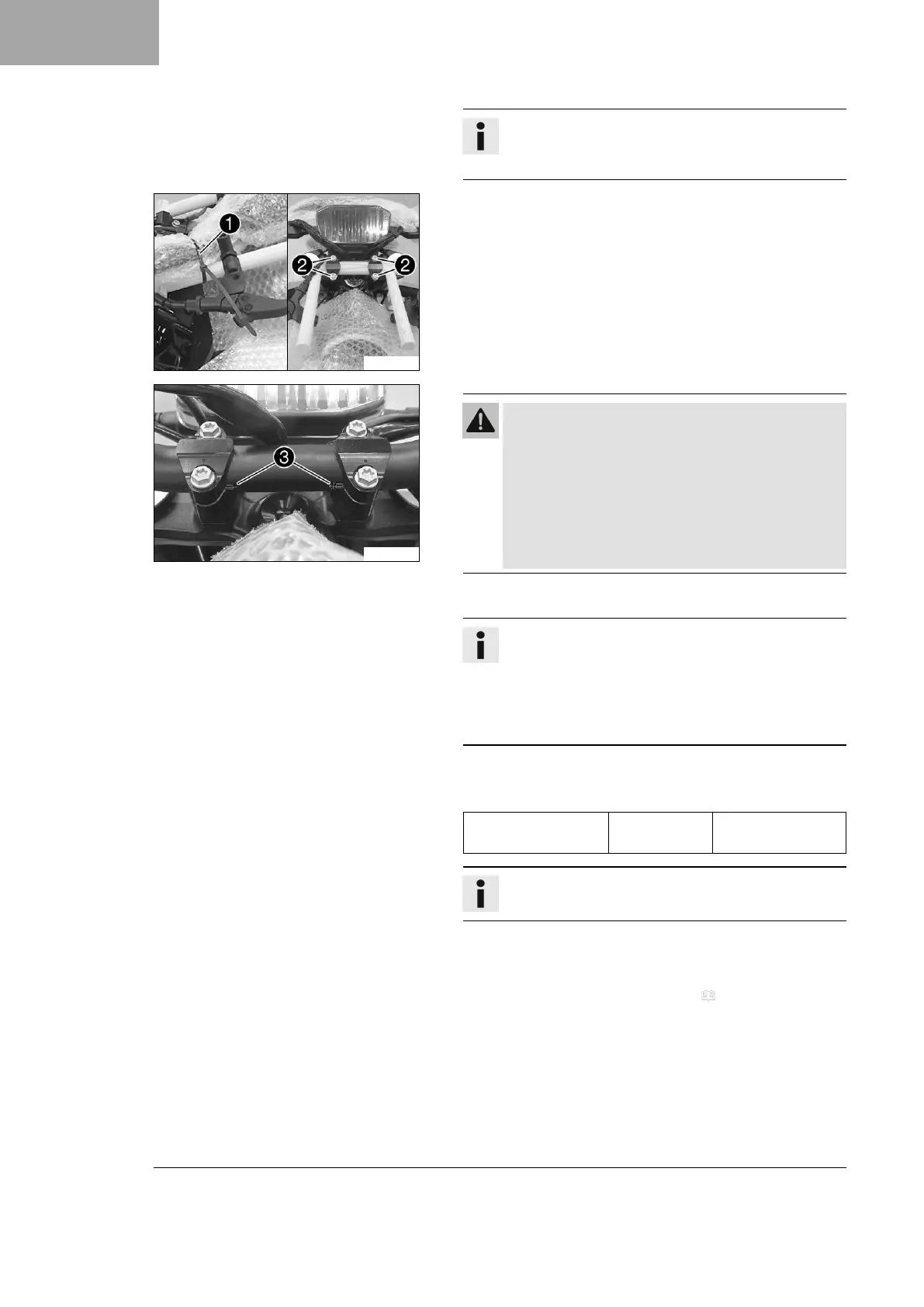

F03432-10
–
Remove cable tie(s)
1
. Place the handlebar at the front.
– Remove the clutch and the brake assembly from the transport
holder.
–
Remove screws
2
from the handlebar clamps. Take off the
handlebar clamps and transport holder.
F03433-10
Warning
Danger of accidents A repaired handlebar poses a
safety risk.
If the handlebar is bent or straightened, the mate-
rial becomes fatigued. The handlebar may break as a
result.
– Change the handlebar if the handlebar is damaged
or bent.
– Unpack handlebar and position.
Info
Make sure the cables and wiring are positioned cor-
rectly.
The markings
3
on the handlebar should be at the
height of the gap between the handlebar supports and
the handlebar clamps.
– Position the handlebar clamps. Mount and tighten the screws
evenly.
Guideline
Screw, handlebar
clamp
M8 20 Nm (14.8 lbf ft)
Info
Keep the installed gap widths equal when tightening.
– Check the handlebar position.
» If the handlebar position is not adjusted as required by the
customer:
– Adjust the handlebar position. ( p. 12)

KTM 890 DUKE R 2022 Specifications

General

Engine Type	2-cylinder, 4-stroke, parallel twin
Displacement	889 cm³
Transmission	6-speed
Cooling	Liquid cooled
Seat Height	834 mm
Weight (without fuel)	166 kg
Front Suspension	WP APEX 43
Front Tire	120/70 ZR 17
Rear Tire	180/55 ZR 17
Bore x Stroke	90.7 mm x 68.8 mm
Compression Ratio	13.5:1
Fuel System	Electronic Fuel Injection
Final Drive	Chain
Power	121 hp
Torque	99 Nm
Fuel Tank Capacity	14 liters
Rear Suspension	WP APEX
Rear Brake	240 mm disc, single-piston floating caliper
ABS	Bosch 9.1 MP (incl. Cornering-ABS and Supermoto mode)
Frame	Chromoly-steel trellis frame, powder coated
Front Brake	2 x Brembo Stylema four piston, radially mounted calipers
Wheelbase	1, 482 mm
