SETUP 2
5
V02051-10

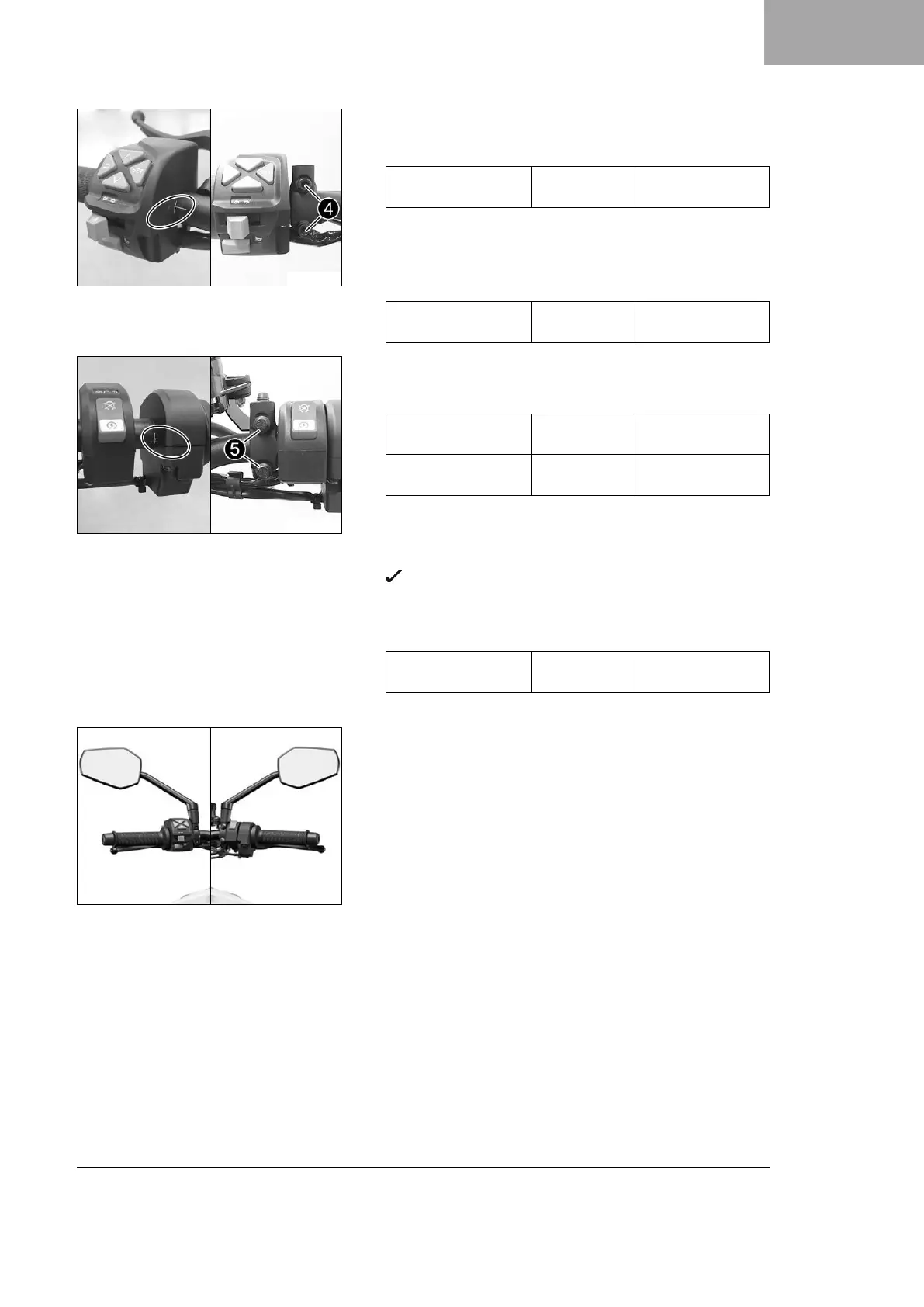

– Align the controls of the left handlebar half with the markings
on the handlebar. Tighten the screws.
Guideline
Screw, combination
switch, left
M5 2 Nm (1.5 lbf ft)
– Position the clutch assembly on the handlebar.
– Position the clutch assembly clamp on the handlebar.
–
Mount and tighten screws
4
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
V02052-10
– Align the control of the right handlebar half with the markings
on the handlebar. Tighten the screws.
Guideline
Screw, throttle grip M5 3.5 Nm
(2.58 lbf ft)
Screw, combination
switch, right
M5 5 Nm (3.7 lbf ft)
– Check the throttle grip for smooth operation.
– Position the brake assembly on the handlebar.
– Position brake assembly clamp on the handlebar.
The holding lug of the clamp engages in the combination
switch.
–
Mount and tighten screws
5
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
– Tie the cables together with the rubber straps supplied.
F03434-01
– Mount and tighten the rear mirror on both sides.
