2 SETUP
6
V02053-10
–

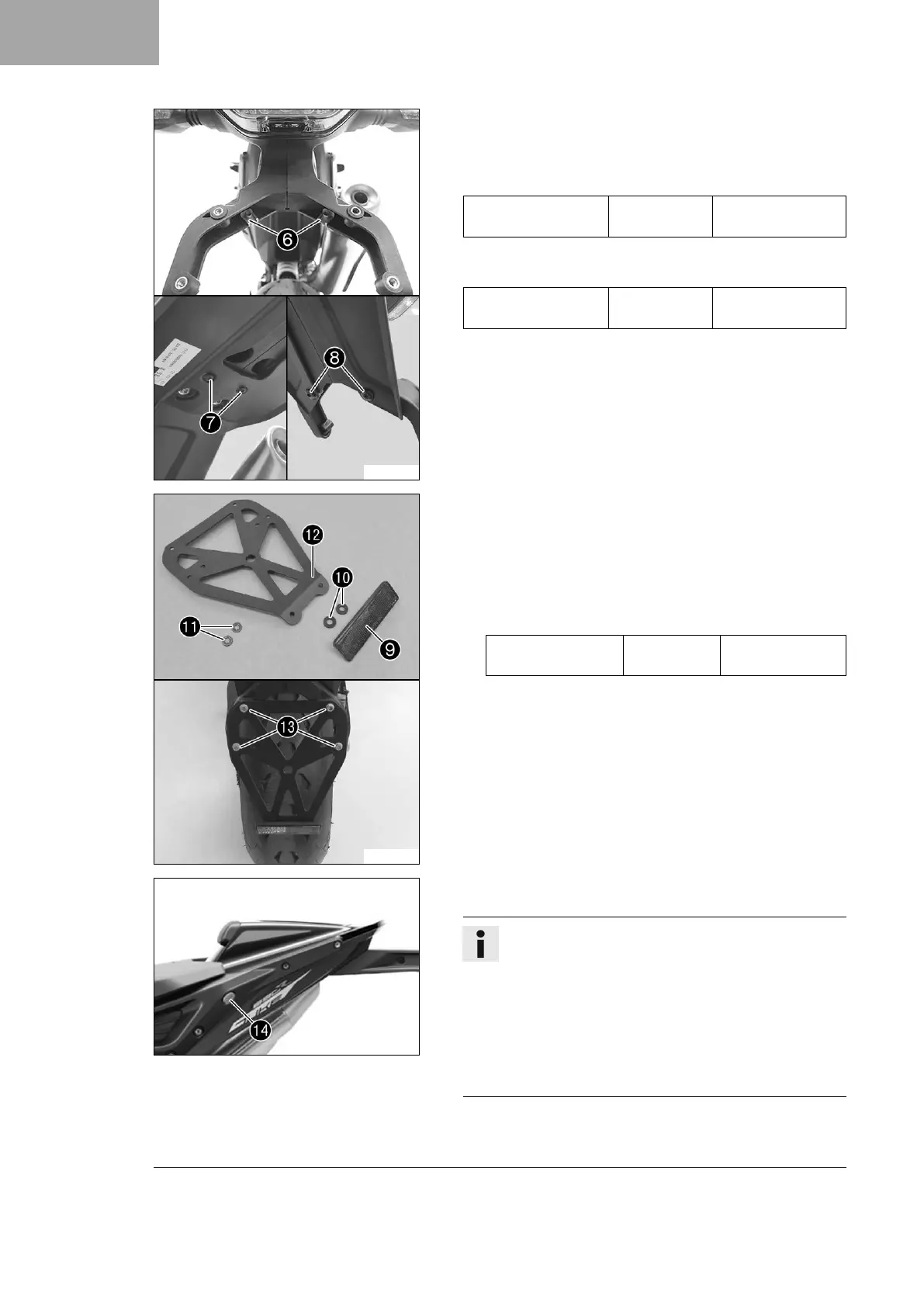

Mount speed nuts
6
on the license plate support.
– Position the splash protector.
–
Mount and tighten screws
7
.
Guideline
Remaining screws,
chassis
EJOTPT
®
K50x18
2 Nm (1.5 lbf ft)
–
Mount and tighten screws
8
.
Guideline
Remaining screws,
chassis
M5 5 Nm (3.7 lbf ft)
V02054-10
(EU/ASEAN/CN)
–
Mount reflector
9
with rubber bushings
bk
and tension
washers
bl
on the license plate holder
bm
.
– Position the license plate bracket on the license plate sup-
port.
–
Mount and tighten screws
bn
.
Guideline
Screw, license plate
holder
M5 3 Nm (2.2 lbf ft)
F03435-10
Condition
Operation with a passenger
Info
The vehicle has been set up in the factory for one-
person operation.
The components for one-person operation and for oper-
ation with a passenger are included in the scope of
supply.
Assemble the vehicle according to the customer's
requirements and point out legal regulations, e.g., entry
in the vehicle documents, if necessary.
