SETUP 2
7
–

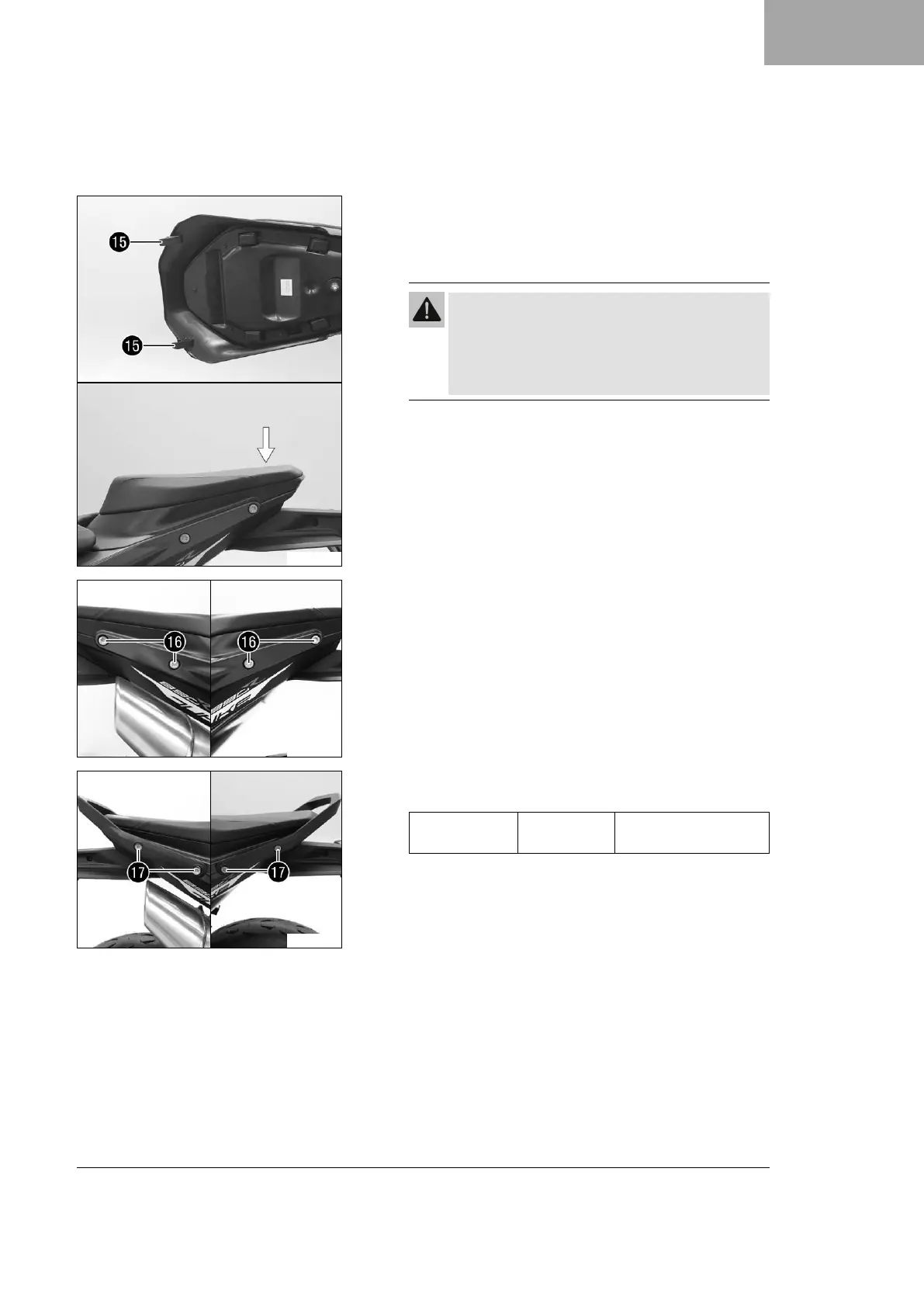

Insert the ignition key in seat lock
bo
and turn it clock-
wise.
– Raise the rear of the seat cover, push it toward the rear,
and lift it off.
V02056-10
–
Hook holding lugs
bp
of the passenger seat onto the stor-
age compartment, lower the rear and push forward.
– Press the passenger seat downward until it clicks into
place.
Warning
Danger of accidents The seat can come loose from
the anchoring if it is not mounted correctly.
– After assembly, check whether the seat is cor-
rectly locked and cannot be pulled up.
– Finally, check that the passenger seat is correctly
mounted.
V02057-10
–
Remove screws
bq
.
V02058-10
–
Position grab handle and mount and tighten screws
br
.
Guideline
Screw, grab
handle
M8x50 25 Nm (18.4 lbf ft)
Loctite
®
243™
