KTM 890 DUKE R 2022 - Left Footrest Bracket Installation

2 SETUP
8

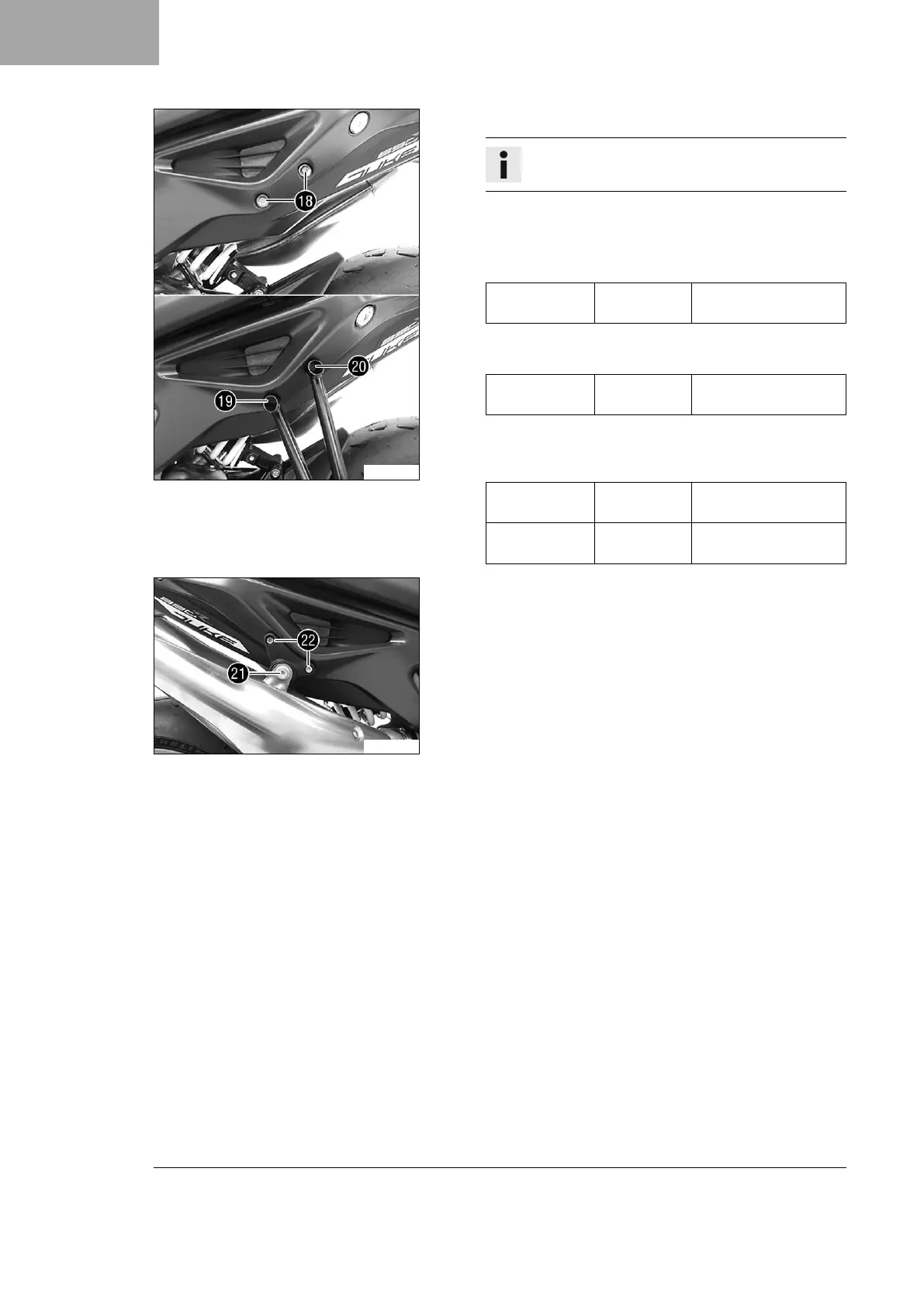

V02060-10
–
Remove screws with washers
bs
.
Info
Retain the washer for the handover.
– Position the left footrest bracket with the passenger
footrest.
–
Mount screw
bt
, but do not tighten yet.
Guideline
Screw, footrest
bracket, rear
M8x25 25 Nm (18.4 lbf ft)
Loctite
®
243™
–
Mount screw
ck
, but do not tighten yet.
Guideline
Screw, footrest
bracket, rear
M8x40 25 Nm (18.4 lbf ft)
Loctite
®
243™
– Tighten all screws of the left footrest bracket with the pas-
senger footrest.
Guideline
Screw, footrest
bracket, rear
M8x25 25 Nm (18.4 lbf ft)
Loctite
®
243™
Screw, footrest
bracket, rear
M8x40 25 Nm (18.4 lbf ft)
Loctite
®
243™
V02061-10
–
Remove screw
cl
with the special washer.
–
Remove screws
cm
.
