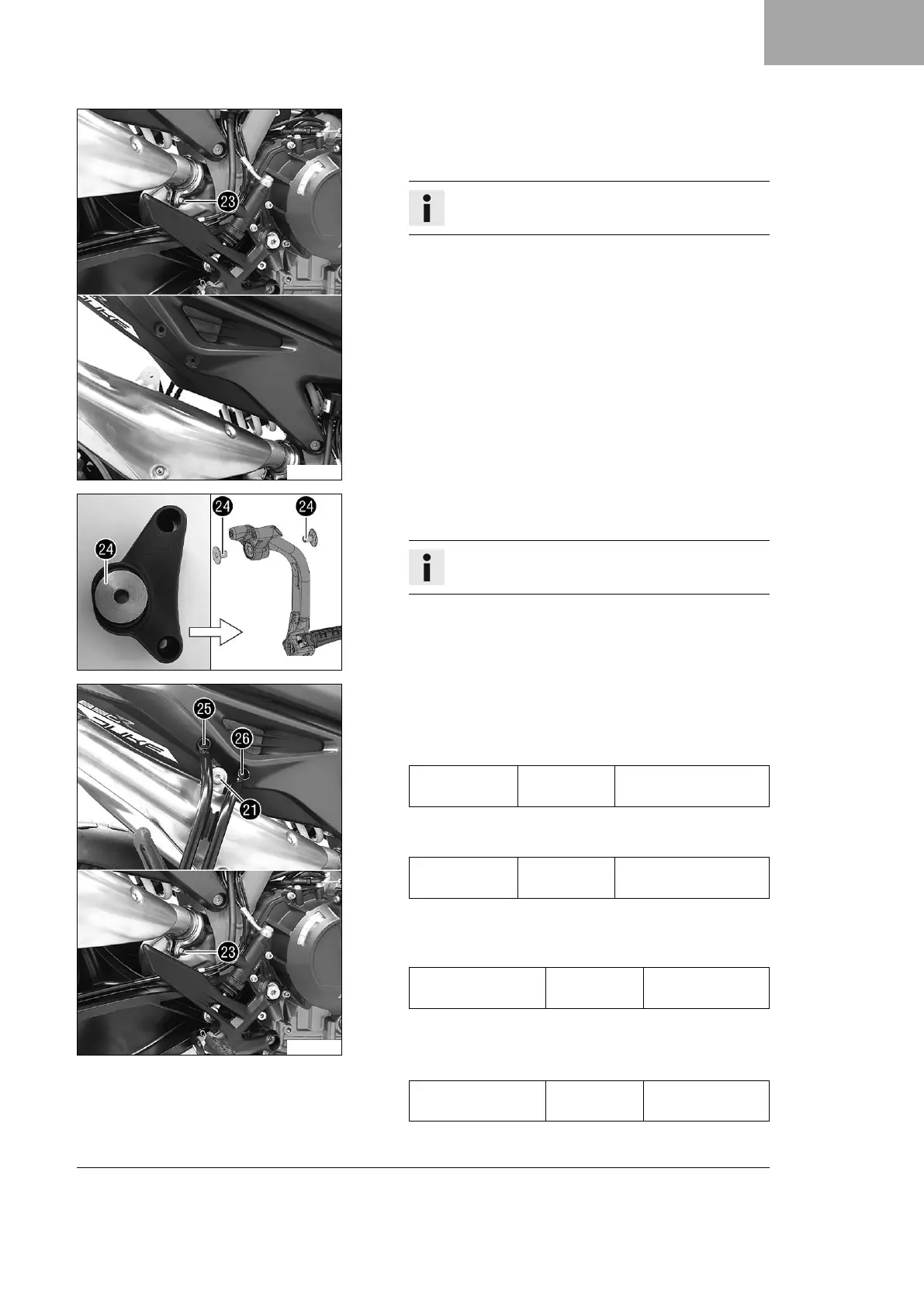

KTM 890 DUKE R 2022 - Right Footrest Bracket Installation; Main Silencer Mounting

SETUP 2
9
V02063-10
–
Loosen clamp screw
cn
by several rotations.
– Lower the main silencer.
– Remove the main silencer holder.
Info
Retain the screws for the handover.
V02064-10
–
Remove bushings
co
from the main silencer holder and
mount them on the right footrest bracket.
Info
Retain main silencer holder for the handover.
V02066-10
– Position the right footrest bracket with the passenger
footrest.
–
Mount screw
cp
, but do not tighten yet.
Guideline
Screw, footrest
bracket, rear
M8x40 25 Nm (18.4 lbf ft)
Loctite
®
243™
–
Mount screw
cq
, but do not tighten yet.
Guideline
Screw, footrest
bracket, rear
M8x25 25 Nm (18.4 lbf ft)
Loctite
®
243™
–
Mount screw
cl
with the special washer, but do not
tighten yet.
Guideline
Screw, main
silencer fastening
M8 15 Nm
(11.1 lbf ft)
– Shake the main silencer slightly to avoid strain.
–
Position the main silencer clamp and tighten screw
cn
.
Guideline
Screw, main
silencer clamp
M6 8 Nm (5.9 lbf ft)
