Replace a blown fuse only with an equivalent one. If a new fuse that has just been set in
gets blown again, you are strongly advised to have it inspected by a KTM dealer.
Under no circumstances is a stronger fuse allowed to be set in or a fuse allowed to be “repaired”.
An inexpert treatment could damage the whole electrical installation!
Fuses ACC 1 and ACC 2 [3] are designed for accessories with a maximum power consump-
tion of 10 amperes each. Fuse ACC 2 also protects the carburetor heaters from short
circuits.
Sockets to connect the accessories are located under the headlight mask. For more infor-
mation, contact an authorized KTM workshop.
53
Fuses for individual power consumers

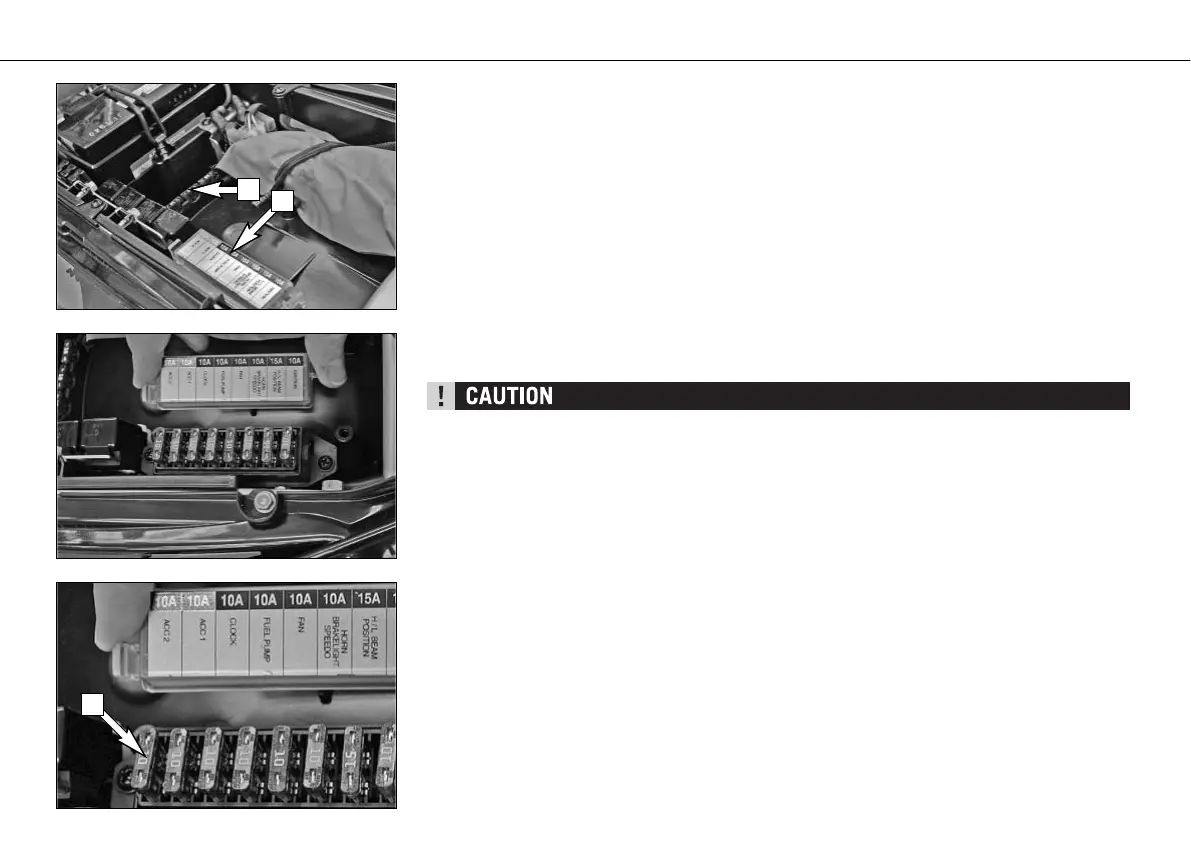

A fuse box is mounted under the seat containing additional fuses that protect the individ-
ual electric power consumers.
The power consumers and the corresponding capacities are listed on the cover of the fuse
box [1]. The ACC 2 fuse protects the carburetor heaters from short circuits. Spare fuses
10 and 15 ampere [2] are located in the storage compartment.
