Adjusting the headlight range
The payload can make it necessary to correct the headlight range.

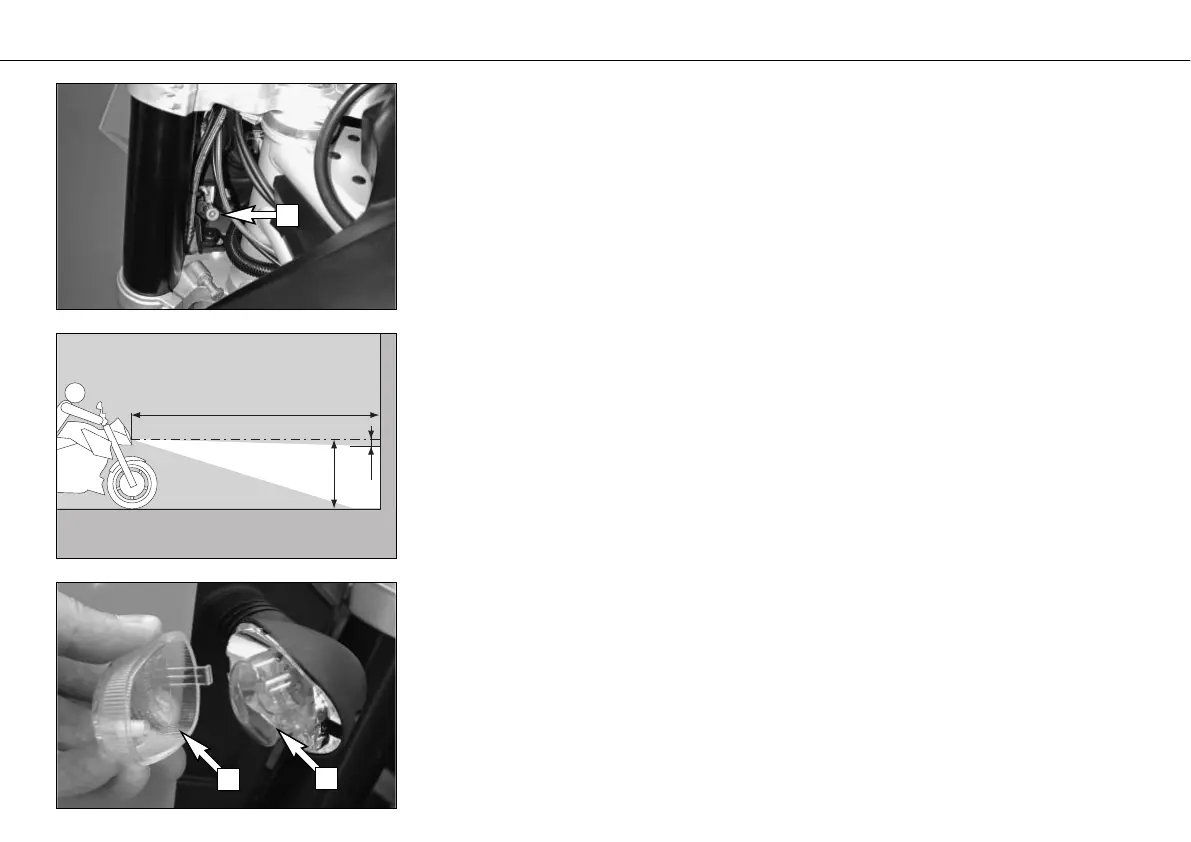

The headlight range can be adjusted with the adjusting screw [1]. Turning in a clockwise
direction will reduce the headlight range, turning in a counterclockwise direction will increase
the headlight range.
TO CHECK:
Determine the distance from the ground to the center of the headlight when your motorcy-
cle is loaded and ready for the trip (baggage, driver, passenger). Make a mark on a light wall
behind a level surface at a height corresponding to the center of the headlight. Position your
motorcycle loaded ready for the trip 5 meters (16,4 ft) away from the wall and switch on
the low beam. The light/dark cut-off line should be 5 cm (2 in) under the mark (see
drawing).
Replacing the flasher bulbs
Remove the screw on the back of the turn signal, carefully fold the lens [2] towards the
motorcycle and remove. Turn the cap [3] approx. 15° in a counterclockwise direction and
remove.
Slightly depress the bulb, turn it approx. 30° counterclockwise and pull it out of the socket.
To mount the lamp reverse the worksteps indicated above.When you mount the screw, first
turn it in a counterclockwise direction until it engages in the thread and then tighten slightly.
MAINTENANCE WORK ON CHASSIS AND ENGINE »
55
1
5 m
x
5 cm
2
3
