14 WHEELS, TIRES 123
L02192-12
–

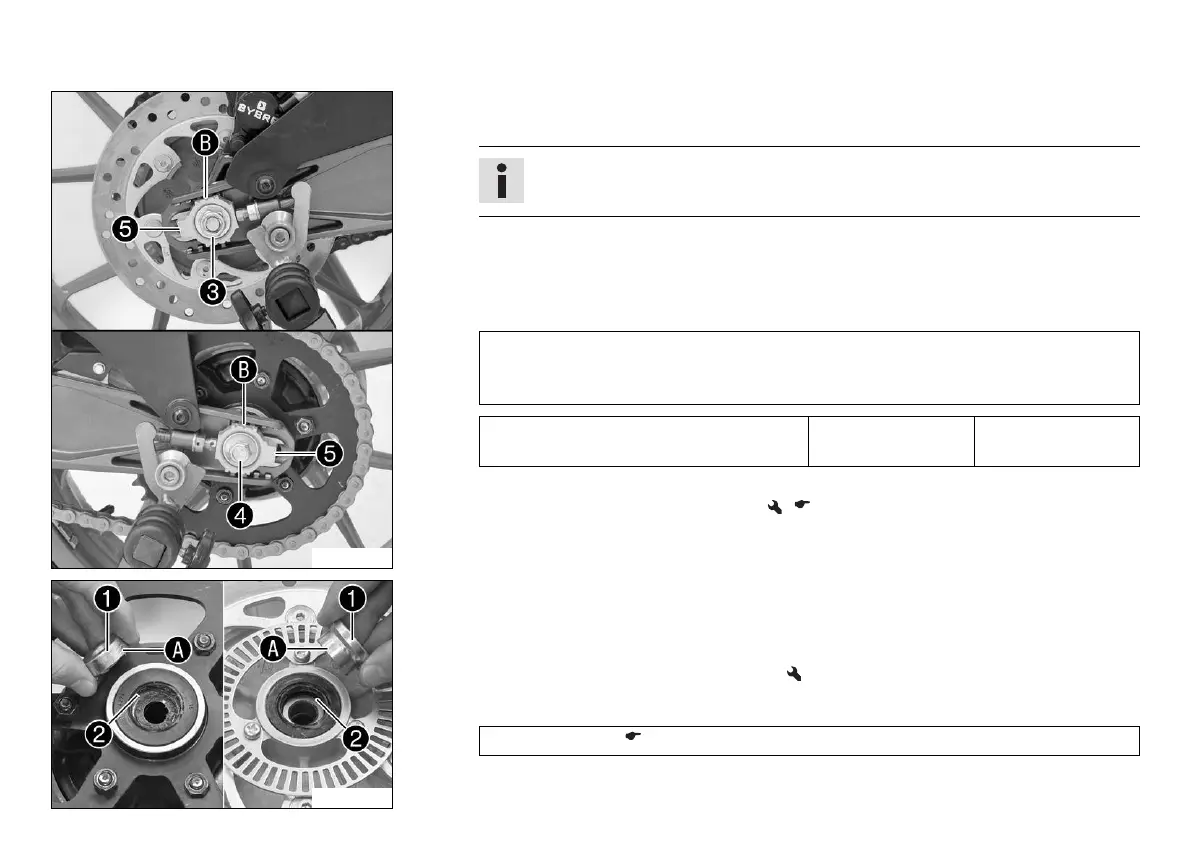

Pull the rear wheel back and mount wheel spindle
with the washer and chain
adjuster
.
Info
Mount the left and right chain adjusters
in the same position.
–
Mount nut
and washer.
– Push the rear wheel forward so that the chain adjusters are in contact with the
screws, and tighten nut
.
Guideline
In order for the rear wheel to be correctly aligned, the markings on the left and
right chain adjusters must be in the same position relative to the reference
marks
.
Nut, rear wheel spindle M14x1.5 90 Nm
(66.4 lbf ft)
(RC 125)
– Check the rear hub rubber dampers. ( p. 125)
L02151-11
–
Remove spacers
.
– Check the wheel bearing for damage and wear.
» If the wheel bearing is damaged or worn:
– Change the rear wheel bearing.
–
Clean and grease the shaft seal rings
and mating surfaces
of the spacers.
Long-life grease ( p. 195)
– Insert the spacers.
