14 WHEELS, TIRES 124
–
Clean the thread of the wheel spindle and nut
.
– Clean the mating surfaces of the brake caliper support and swingarm.
– Position the rear wheel.
The brake linings are correctly positioned.
– Push the rear wheel as far forward as possible and place the chain on the rear
sprocket.
L02150-13
–

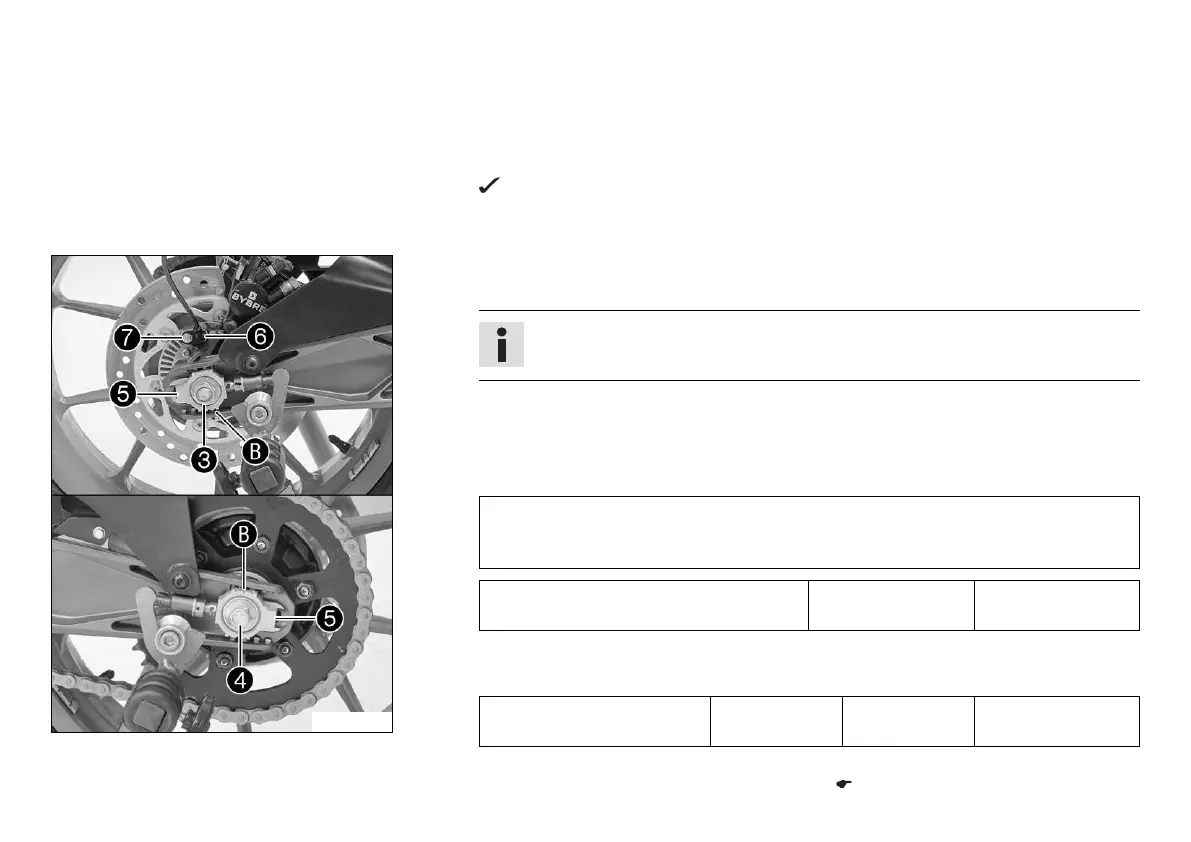

Pull the rear wheel back and mount wheel spindle
with the washer and chain
adjuster
.
Info
Mount the left and right chain adjusters
in the same position.
–
Mount nut
and washer.
– Push the rear wheel forward so that the chain adjusters are in contact with the
screws, and tighten nut
.
Guideline
In order for the rear wheel to be correctly aligned, the markings on the left and
right chain adjusters must be in the same position relative to the reference
marks
.
Nut, rear wheel spindle M14x1.5 90 Nm
(66.4 lbf ft)
–
Position wheel speed sensor
in the drill hole. Mount and tighten screw
.
Guideline
Screw, wheel speed sensor
holder
M6 9 Nm
(6.6 lbf ft)
Loctite
®
243™
Finishing work
– Take the motorcycle off of the rear wheel stand. ( p. 78)
