GENERAL
B2301, B2601, WSM
G-17
Cleaning Evacuator Valve
1. Open the evacuator valve to get rid of large particles of dust and
dirt.
9Y1211156GEG0011US0
Cleaning Grill and Radiator Screen
To avoid personal injury or death:
• Be sure to stop the engine and remove the key before
removing the screen.
1. Check front grill and side screens to be sure they are clean of
debris.
2. Detach the screen and remove all foreign material and clean the
front of radiator completely.
• Grill and screen must be clean from debris to prevent
engine from overheating and to allow good air intake for
the air cleaner.
9Y1211156GEG0012US0
Checking Brake Pedal
1. Inspect the brake pedals for free travel, and smooth operation.
2. Adjust if incorrect measurement is found.
9Y1211156GEG0013US0
Checking Gauges, Meter and Easy Checkerâ„¢
1. Inspect the instrument panel for broken gauge(s), meter(s) and
Easy Checkerâ„¢.
2. Replace if broken.
9Y1211156GEG0014US0
Checking Head Light, Hazard Light etc.
1. Inspect the light for broken bulbs and lenses.
2. Replace if broken.
9Y1211156GEG0015US0
Checking Seat Belt and ROPS
1. Always check condition of seat belt and ROPS attaching
hardware before operating tractor.
2. Replace if damaged.
9Y1211156GEG0016US0

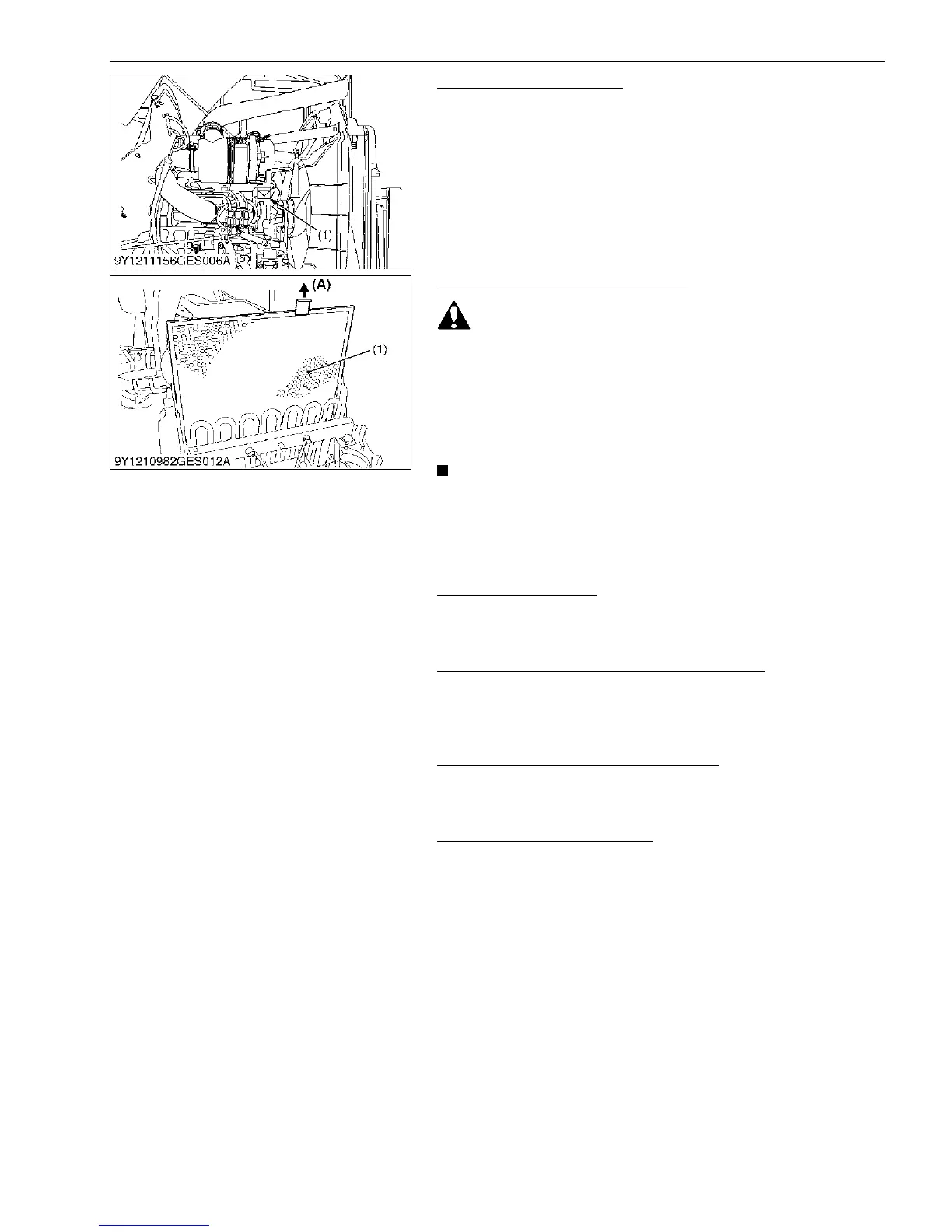

(1) Evacuator Valve
(1) Radiator Screen (A) "DETACH"
To Next Page
