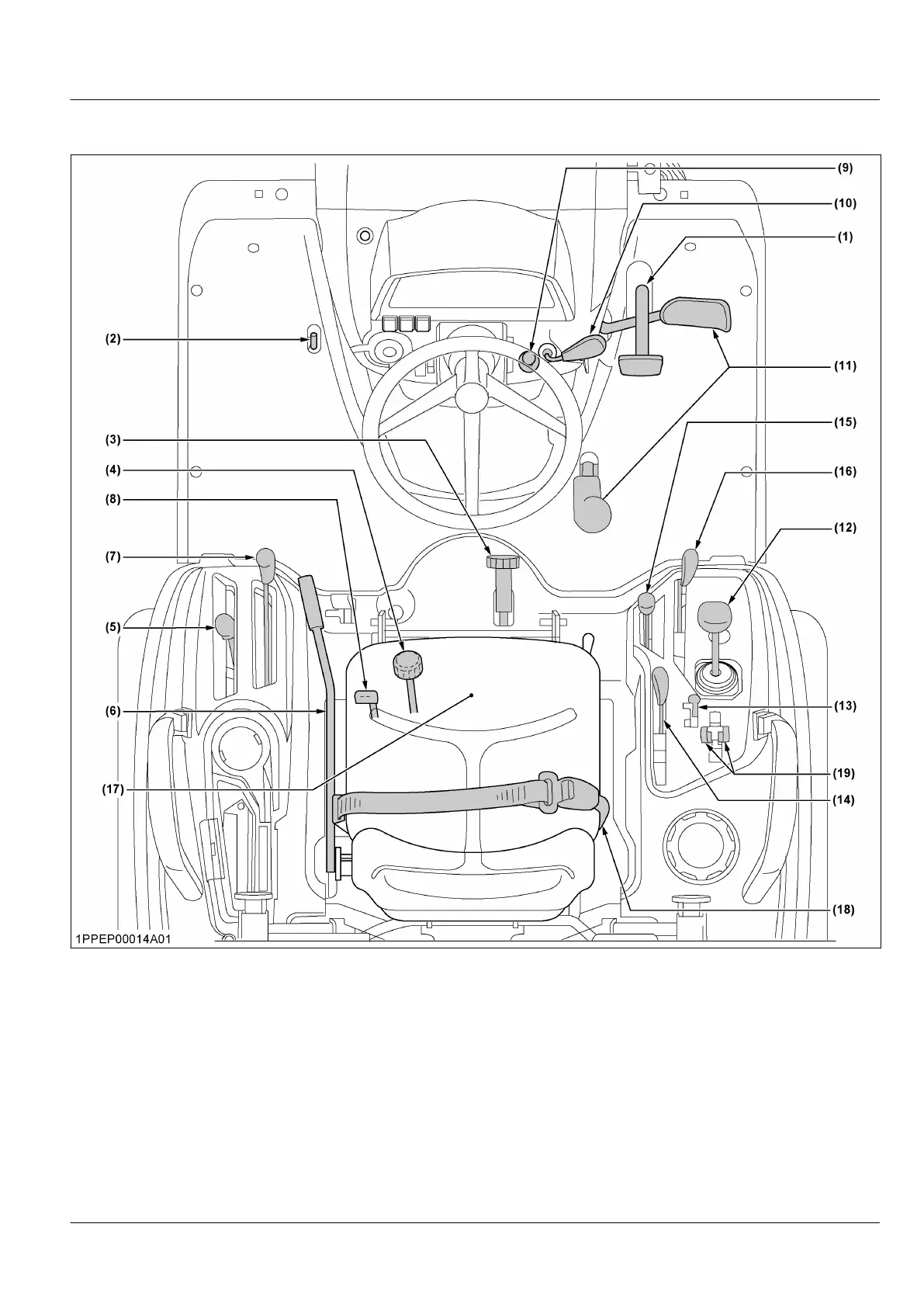

FOOT AND HAND CONTROLS
(1) Brake pedal.................................................................................... 33
Brake pedal.................................................................................... 33
(2) Parking brake lock pedal ............................................................... 33
Parking brake lock pedal ............................................................... 33
(3) 3-point hitch lowering speed knob ................................................. 65
(4) Cutting height control dial .............................................................. 68
(5) PTO select lever ............................................................................ 59
(6) Emergency hand brake lever......................................................... 33
(7) PTO clutch lever ............................................................................ 59
(8) Differential lock pedal .................................................................... 56
(9) Speed set rod ................................................................................ 35
Speed set rod ................................................................................ 36
(10) Hand accelerator lever................................................................... 35
(11) Speed control pedal ....................................................................... 35
(12) Auxiliary hydraulic control lever (if equipped) ................................ 71
(13) Lock lever (if equipped) ................................................................. 70
(14) Hydraulic control lever ................................................................... 65
(15) Front wheel drive lever .................................................................. 34
(16) Range gear shift lever (Hi-Lo)........................................................ 34
(17) Operator's seat .............................................................................. 32
(18) Seat belt......................................................................................... 33
(19) Rear auxiliary hydraulic control lever............................................. 66
