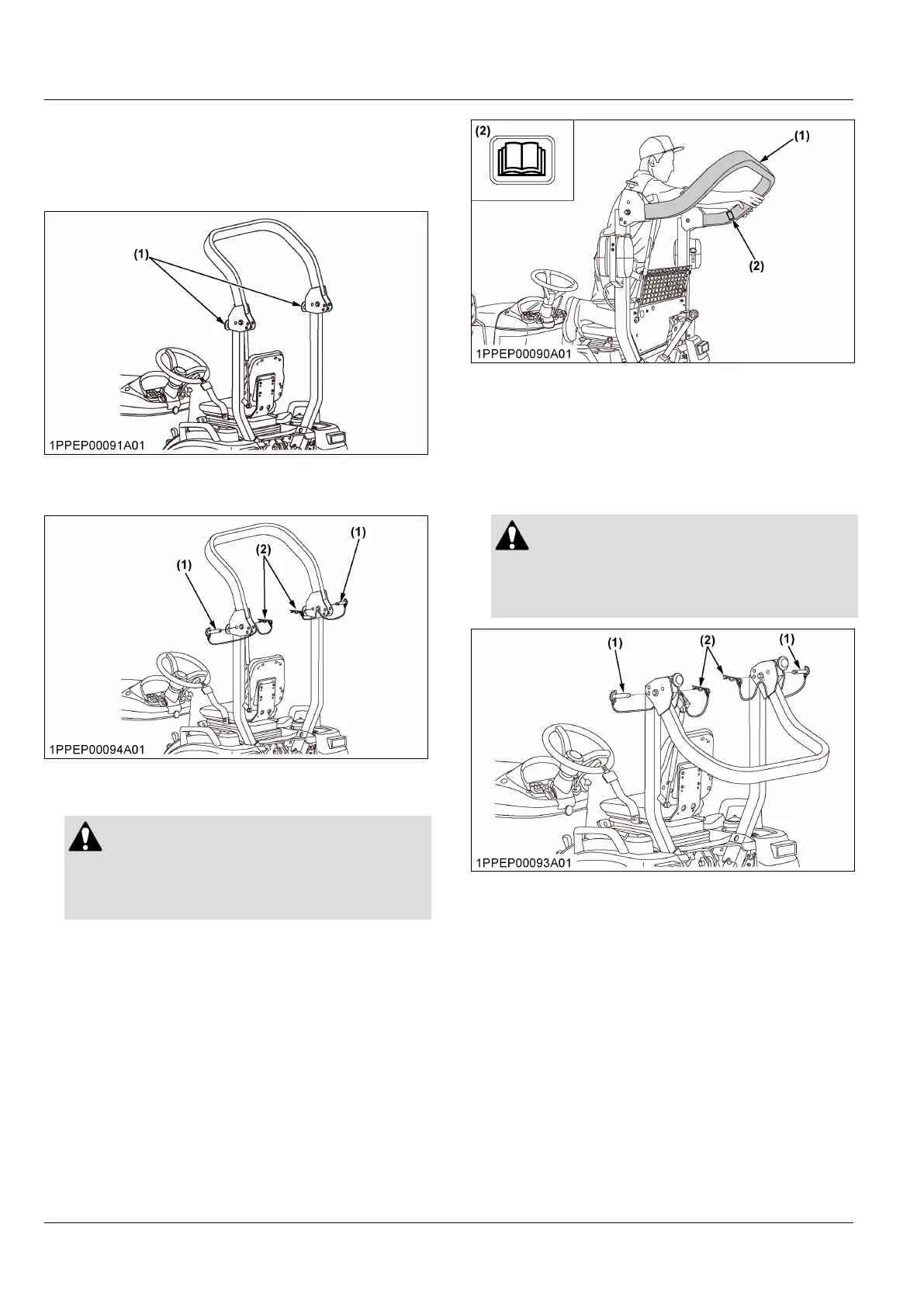

1. Model of the ROPS with damper
1.1 Folding the ROPS with damper
1. Loosen the holding-knob-bolts.
(1) Holding knob bolts
2. Remove both set pins.
(1) Set pins (2) Snap pins
3. Fold the ROPS.
CAUTION
To avoid personal injury:
• Hold the ROPS tightly with both hands and
fold the ROPS slowly and carefully.
(1) ROPS
(2) Label
IMPORTANT :
• When operating the ROPS, hold the position
higher than the label.
4. Align the set-pin-holes and insert both set pins.
Secure the set pins with the snap pins.
CAUTION
To avoid personal injury:
• Make sure that both set pins are properly
installed and secured with the snap pins.
(1) Set pins
(2) Snap pins
OPERATING THE TRACTOR OPERATION OF THE FOLDABLE ROPS
