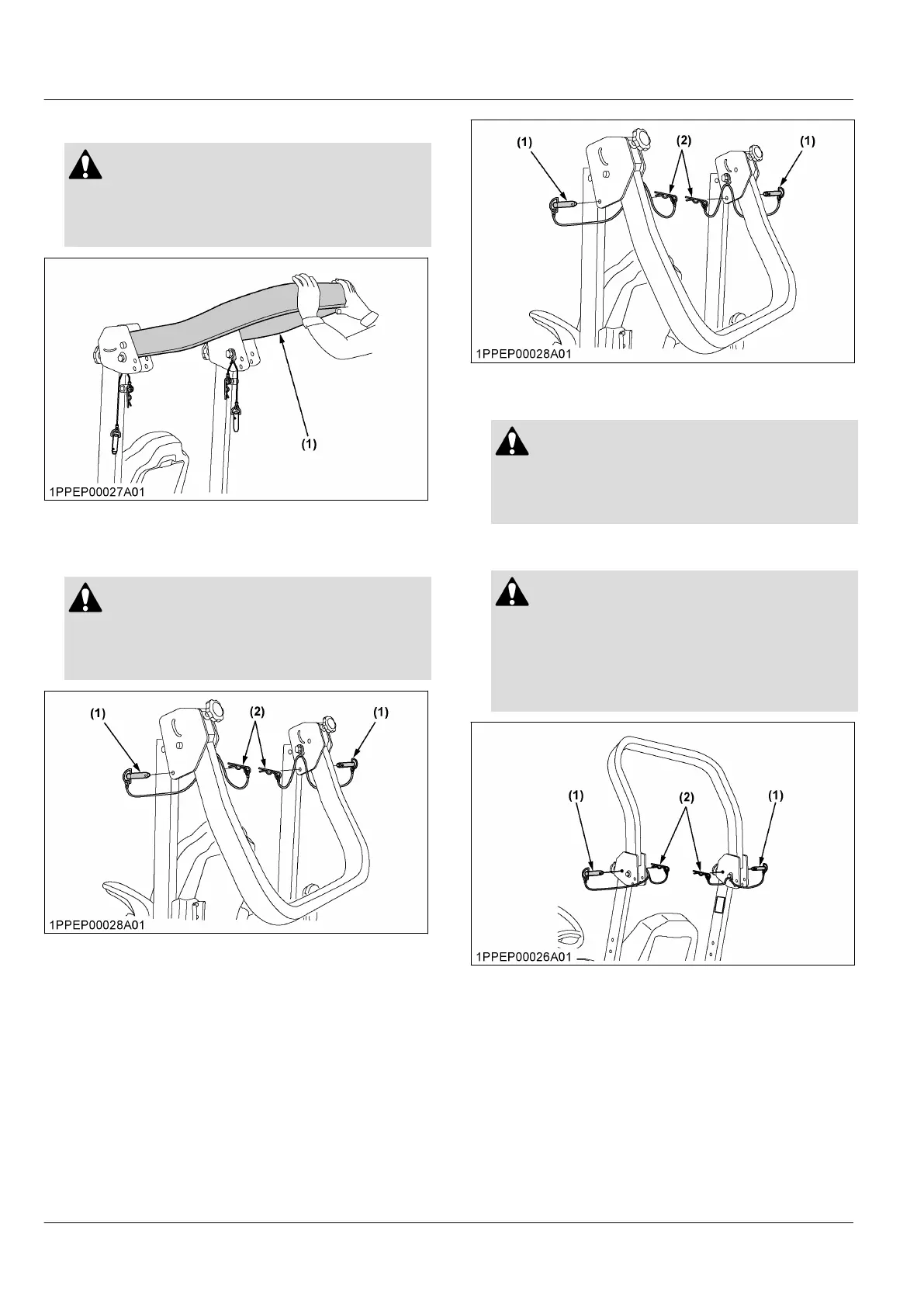

3. Fold the ROPS.
CAUTION
To avoid personal injury:
• Hold the ROPS tightly with both hands and
fold the ROPS slowly and carefully.
(1) ROPS
4.
Align the set-pin-holes and insert both set pins.
Secure the set pins with the snap pins.
CAUTION
To avoid personal injury:
• Make sure that both set pins are properly
installed and secured with the snap pins.
(1) Set pins
(2) Snap pins
2.2 Raising the ROPS without damper to
the upright position
1. Remove both snap pins and set pins.
(1) Set pins
(2) Snap pins
2. Raise the ROPS to the upright position.
CAUTION
To avoid personal injury:
• Hold the ROPS tightly with both hands and
raise the ROPS slowly and carefully.
3. Align the set-pin-holes and insert both set pins.
Secure the set pins with the snap pins.
CAUTION
To avoid personal injury:
• Make sure that both set pins are properly
installed as soon as the ROPS is in the
upright position and secured with the snap
pins.
(1) Set pins
(2) Snap pins
OPERATING THE TRACTOR OPERATION OF THE FOLDABLE ROPS
