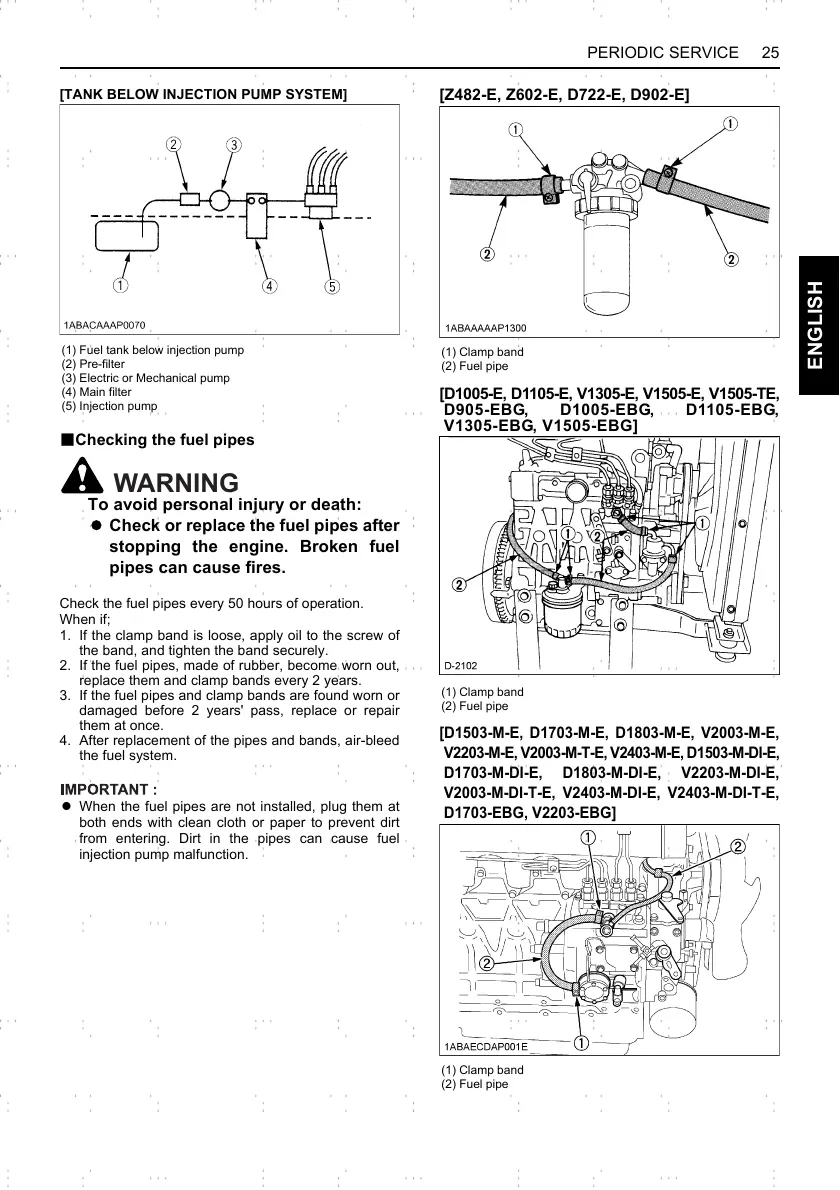

25PERIODIC SERVICE
ENGLISH
[TANK BELOW INJECTION PUMP SYSTEM]
BChecking the fuel pipes
WARNING
To avoid personal injury or death:
A Check or replace the fuel pipes after
stopping the engine. Broken fuel
pipes can cause fires.
Check the fuel pipes every 50 hours of operation.
When if;
1. If the clamp band is loose, apply oil to the screw of
the band, and tighten the band securely.
2. If the fuel pipes, made of rubber, become worn out,
replace them and clamp bands every 2 years.
3. If the fuel pipes and clamp bands are found worn or
damaged before 2 years' pass, replace or repair
them at once.
4. After replacement of the pipes and bands, air-bleed
the fuel system.
A When the fuel pipes are not installed, plug them at
both ends with clean cloth or paper to prevent dirt
from entering. Dirt in the pipes can cause fuel
injection pump malfunction.
[Z482-E, Z602-E, D722-E, D902-E]
[D1005-E, D1105-E, V1305-E, V1505-E, V1505-TE,
D905-EBG, D1005-EBG, D1105-EBG,
V1305-EBG, V1505-EBG]
[D1503-M-E, D1703-M-E, D1803-M-E, V2003-M-E,
V2203-M-E, V2003-M-T-E, V2403-M-E, D1503-M-DI-E,
D1703-M-DI-E, D1803-M-DI-E, V2203-M-DI-E,
V2003-M-DI-T-E, V2403-M-DI-E, V2403-M-DI-T-E,
D1703-EBG, V2203-EBG]
(1) Fuel tank below injection pump
(2) Pre-filter
(3) Electric or Mechanical pump
(4) Main filter
(5) Injection pump
(1) Clamp band
(2) Fuel pipe
(1) Clamp band
(2) Fuel pipe
(1) Clamp band
(2) Fuel pipe
