BFor the air cleaner with a dust cup
(optional)
Remove and clean out the dust cup before it becomes
half full with dust; usually once a week, or even every
day if the working surroundings are dusty.
Install the air cleaner dust cup with "TOP" indicated on
the rear of the cup in the upside. (However, it may be
installed in either direction when the cover is placed at
the lower part.)
[Z482-E, Z602-E, D722-E, D902-E]
[D1005-E, D1105-E, V1305-E, V1505-E, V1505-TE,
D905-EBG, D1005-EBG, D1105-EBG, V1305-EBG,
V1505-EBG]
A If the dust cup is mounted incorrectly, dust or dirt
does not collect in the cup, and direct attachments of
the dust to the element will cause its lifetime to
shorten to a great extent.

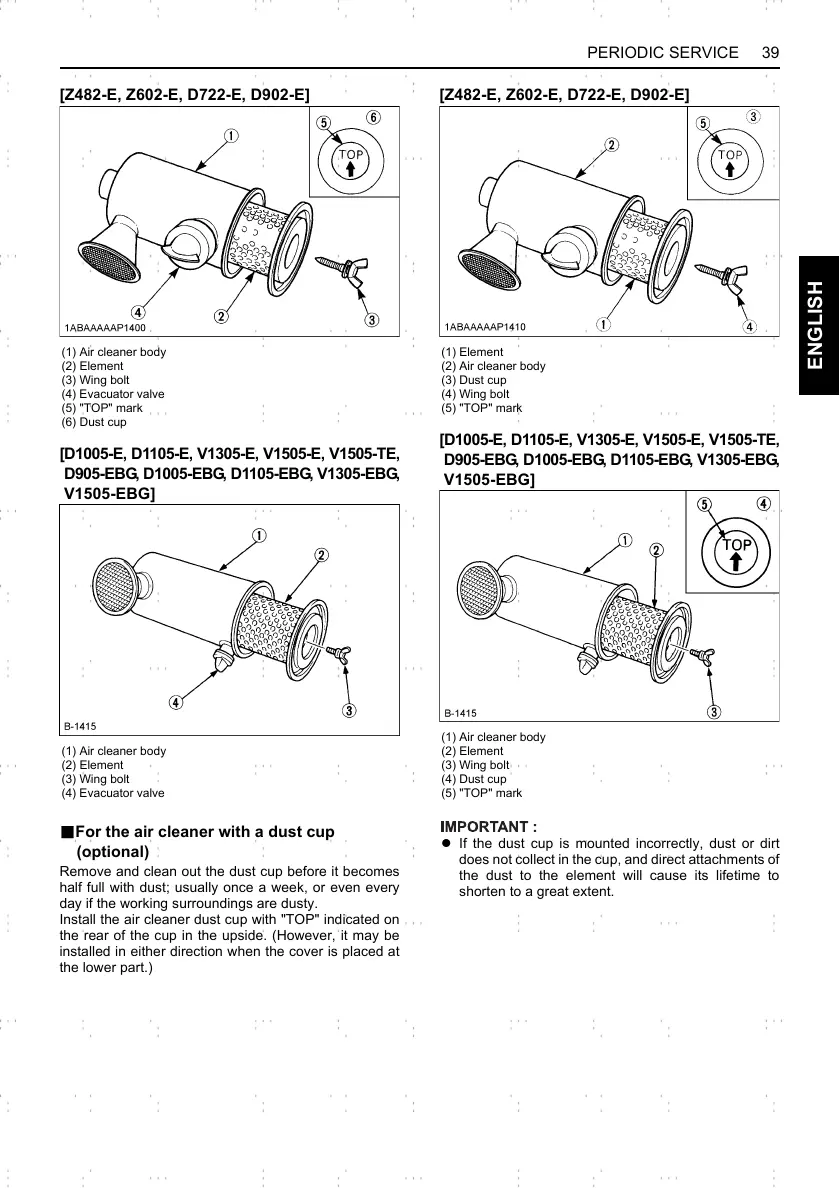

(1) Air cleaner body
(2) Element
(3) Wing bolt
(4) Evacuator valve
(5) "TOP" mark
(6) Dust cup
(1) Air cleaner body
(2) Element
(3) Wing bolt
(4) Evacuator valve
(1) Element
(2) Air cleaner body
(3) Dust cup
(4) Wing bolt
(5) "TOP" mark
(1) Air cleaner body
(2) Element
(3) Wing bolt
(4) Dust cup
(5) "TOP" mark
