Kubota D1005-E - Cleaning the Fuel Filter Pot

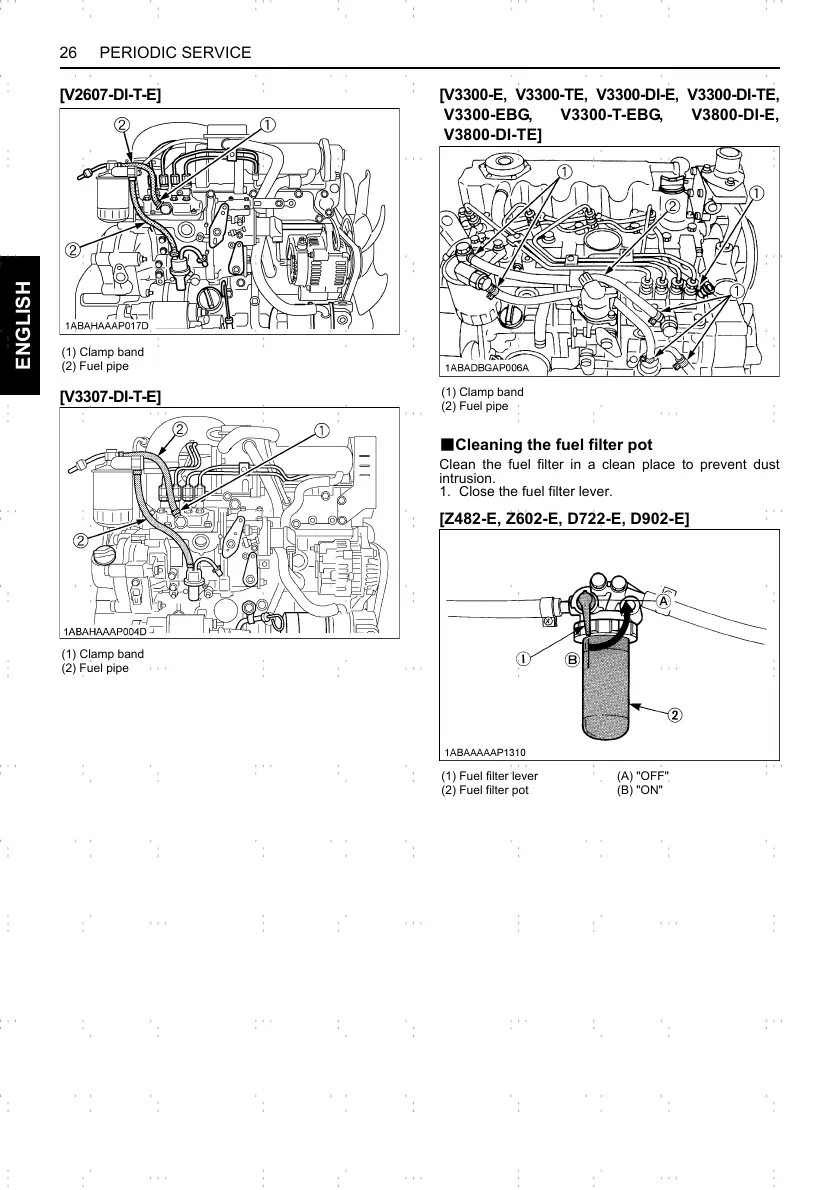

26 PERIODIC SERVICE
ENGLISH
[V2607-DI-T-E]
[V3307-DI-T-E]
[V3300-E, V3300-TE, V3300-DI-E, V3300-DI-TE,
V3300-EBG, V3300-T-EBG, V3800-DI-E,
V3800-DI-TE]
BCleaning the fuel filter pot
Clean the fuel filter in a clean place to prevent dust
intrusion.
1. Close the fuel filter lever.
[Z482-E, Z602-E, D722-E, D902-E]
(1) Clamp band
(2) Fuel pipe
(1) Clamp band
(2) Fuel pipe
(1) Clamp band
(2) Fuel pipe
(1) Fuel filter lever
(2) Fuel filter pot
(A) "OFF"
(B) "ON"
