Kubota D1005-E - Page 57

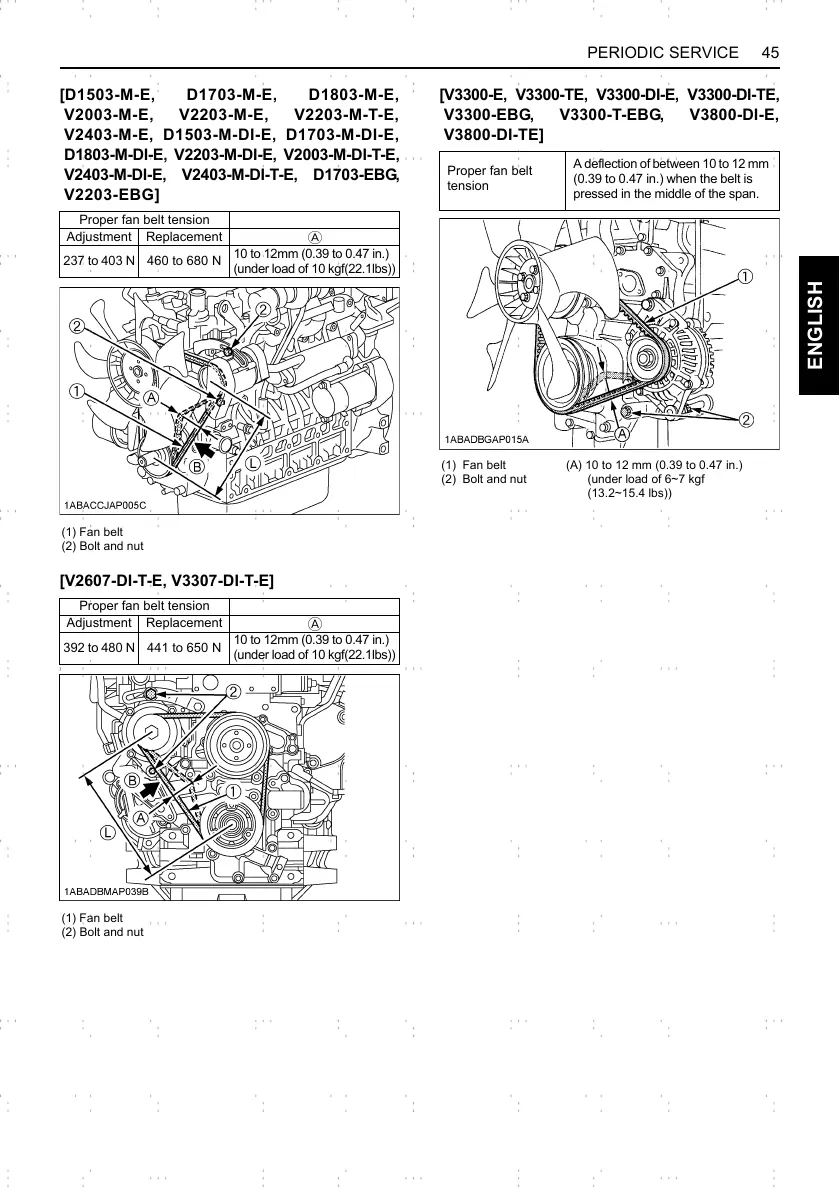

45PERIODIC SERVICE
ENGLISH
[D1503-M-E, D1703-M-E, D1803-M-E,
V2003-M-E, V2203-M-E, V2203-M-T-E,
V2403-M-E, D1503-M-DI-E, D1703-M-DI-E,
D1803-M-DI-E, V2203-M-DI-E, V2003-M-DI-T-E,
V2403-M-DI-E, V2403-M-DI-T-E, D1703-EBG,
V2203-EBG]
[V2607-DI-T-E, V3307-DI-T-E]
]
[V3300-E, V3300-TE, V3300-DI-E, V3300-DI-TE,
V3300-EBG, V3300-T-EBG, V3800-DI-E,
V3800-DI-TE]
Proper fan belt tension
Adjustment Replacement
237 to 403 N 460 to 680 N
10 to 12mm (0.39 to 0.47 in.)
(under load of 10 kgf(22.1lbs))
(1) Fan belt
(2) Bolt and nut
Proper fan belt tension
Adjustment Replacement
392 to 480 N 441 to 650 N
10 to 12mm (0.39 to 0.47 in.)
(under load of 10 kgf(22.1lbs))
(1) Fan belt
(2) Bolt and nut
Proper fan belt
tension
A deflection of between 10 to 12 mm
(0.39 to 0.47 in.) when the belt is
pressed in the middle of the span.
(1) Fan belt
(2) Bolt and nut
(A) 10 to 12 mm (0.39 to 0.47 in.)
(under load of 6~7 kgf
(13.2~15.4 lbs))
