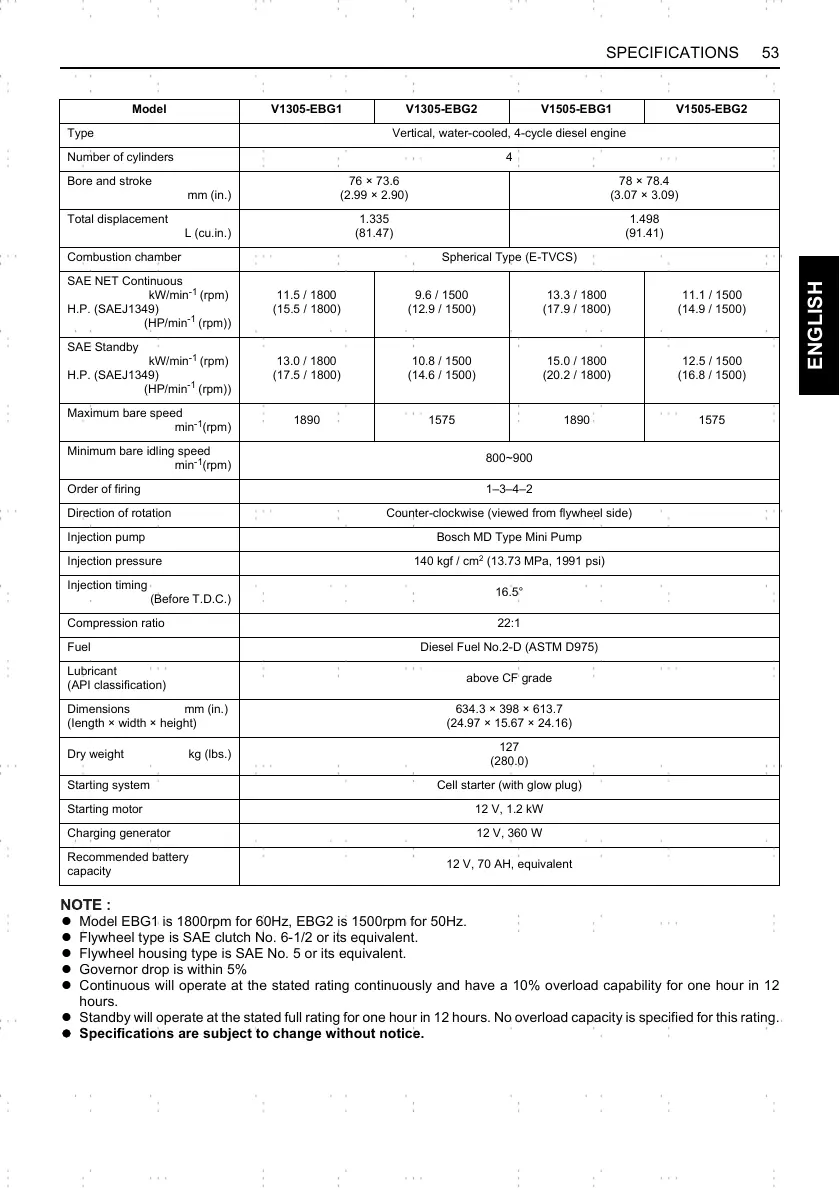

53SPECIFICATIONS
ENGLISH
A Model EBG1 is 1800rpm for 60Hz, EBG2 is 1500rpm for 50Hz.
A Flywheel type is SAE clutch No. 6-1/2 or its equivalent.
A Flywheel housing type is SAE No. 5 or its equivalent.
A Governor drop is within 5%
A Continuous will operate at the stated rating continuously and have a 10% overload capability for one hour in 12
hours.
A Standby will operate at the stated full rating for one hour in 12 hours. No overload capacity is specified for this rating.
A Specifications are subject to change without notice.
Model V1305-EBG1 V1305-EBG2 V1505-EBG1 V1505-EBG2
Type Vertical, water-cooled, 4-cycle diesel engine
Number of cylinders 4
Bore and stroke
mm (in.)
76 × 73.6
(2.99 × 2.90)
78 × 78.4
(3.07 × 3.09)
Total displacement
L (cu.in.)
1.335
(81.47)
1.498
(91.41)
Combustion chamber Spherical Type (E-TVCS)
SAE NET Continuous
kW/min
-1
(rpm)
H.P. (SAEJ1349)
(HP/min
-1
(rpm))
11.5 / 1800
(15.5 / 1800)
9.6 / 1500
(12.9 / 1500)
13.3 / 1800
(17.9 / 1800)
11.1 / 1500
(14.9 / 1500)
SAE Standby
kW/min
-1
(rpm)
H.P. (SAEJ1349)
(HP/min
-1
(rpm))
13.0 / 1800
(17.5 / 1800)
10.8 / 1500
(14.6 / 1500)
15.0 / 1800
(20.2 / 1800)
12.5 / 1500
(16.8 / 1500)
Maximum bare speed
min
-1
(rpm)
1890 1575 1890 1575
Minimum bare idling speed
min
-1
(rpm)
800~900
Order of firing 1–3–4–2
Direction of rotation Counter-clockwise (viewed from flywheel side)
Injection pump Bosch MD Type Mini Pump
Injection pressure 140 kgf / cm
2
(13.73 MPa, 1991 psi)
Injection timing
(Before T.D.C.)
16.5°
Compression ratio 22:1
Fuel Diesel Fuel No.2-D (ASTM D975)
Lubricant
(API classification)
above CF grade
Dimensions mm (in.)
(Iength × width × height)
634.3 × 398 × 613.7
(24.97 × 15.67 × 24.16)
Dry weight kg (lbs.)
127
(280.0)
Starting system Cell starter (with glow plug)
Starting motor 12 V, 1.2 kW
Charging generator 12 V, 360 W
Recommended battery
capacity
12 V, 70 AH, equivalent
