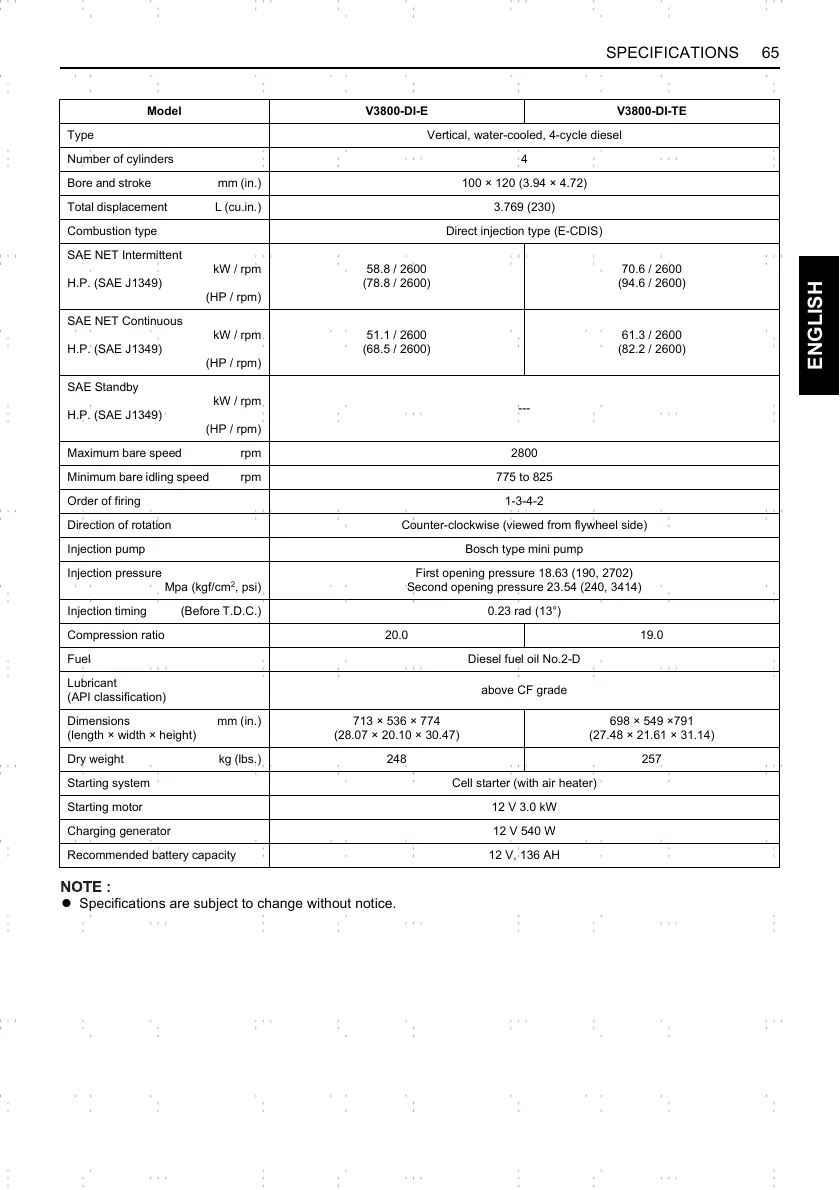

65SPECIFICATIONS
ENGLISH
A Specifications are subject to change without notice.
Model V3800-DI-E V3800-DI-TE
Type Vertical, water-cooled, 4-cycle diesel
Number of cylinders 4
Bore and stroke mm (in.) 100 × 120 (3.94 × 4.72)
Total displacement L (cu.in.) 3.769 (230)
Combustion type Direct injection type (E-CDIS)
SAE NET Intermittent
kW / rpm
H.P. (SAE J1349)
(HP / rpm)
58.8 / 2600
(78.8 / 2600)
70.6 / 2600
(94.6 / 2600)
SAE NET Continuous
kW / rpm
H.P. (SAE J1349)
(HP / rpm)
51.1 / 2600
(68.5 / 2600)
61.3 / 2600
(82.2 / 2600)
SAE Standby
kW / rpm
H.P. (SAE J1349)
(HP / rpm)
---
Maximum bare speed rpm 2800
Minimum bare idling speed rpm 775 to 825
Order of firing 1-3-4-2
Direction of rotation Counter-clockwise (viewed from flywheel side)
Injection pump Bosch type mini pump
Injection pressure
Mpa (kgf/cm
2
, psi)
First opening pressure 18.63 (190, 2702)
Second opening pressure 23.54 (240, 3414)
Injection timing (Before T.D.C.) 0.23 rad (13°)
Compression ratio 20.0 19.0
Fuel Diesel fuel oil No.2-D
Lubricant
(API classification)
above CF grade
Dimensions mm (in.)
(length × width × height)
713 × 536 × 774
(28.07 × 20.10 × 30.47)
698 × 549 ×791
(27.48 × 21.61 × 31.14)
Dry weight kg (lbs.) 248 257
Starting system Cell starter (with air heater)
Starting motor 12 V 3.0 kW
Charging generator 12 V 540 W
Recommended battery capacity 12 V, 136 AH
