M.5 ELECTRICAL SYSTEM
68 mm STROKE SERIES WSM,O1160

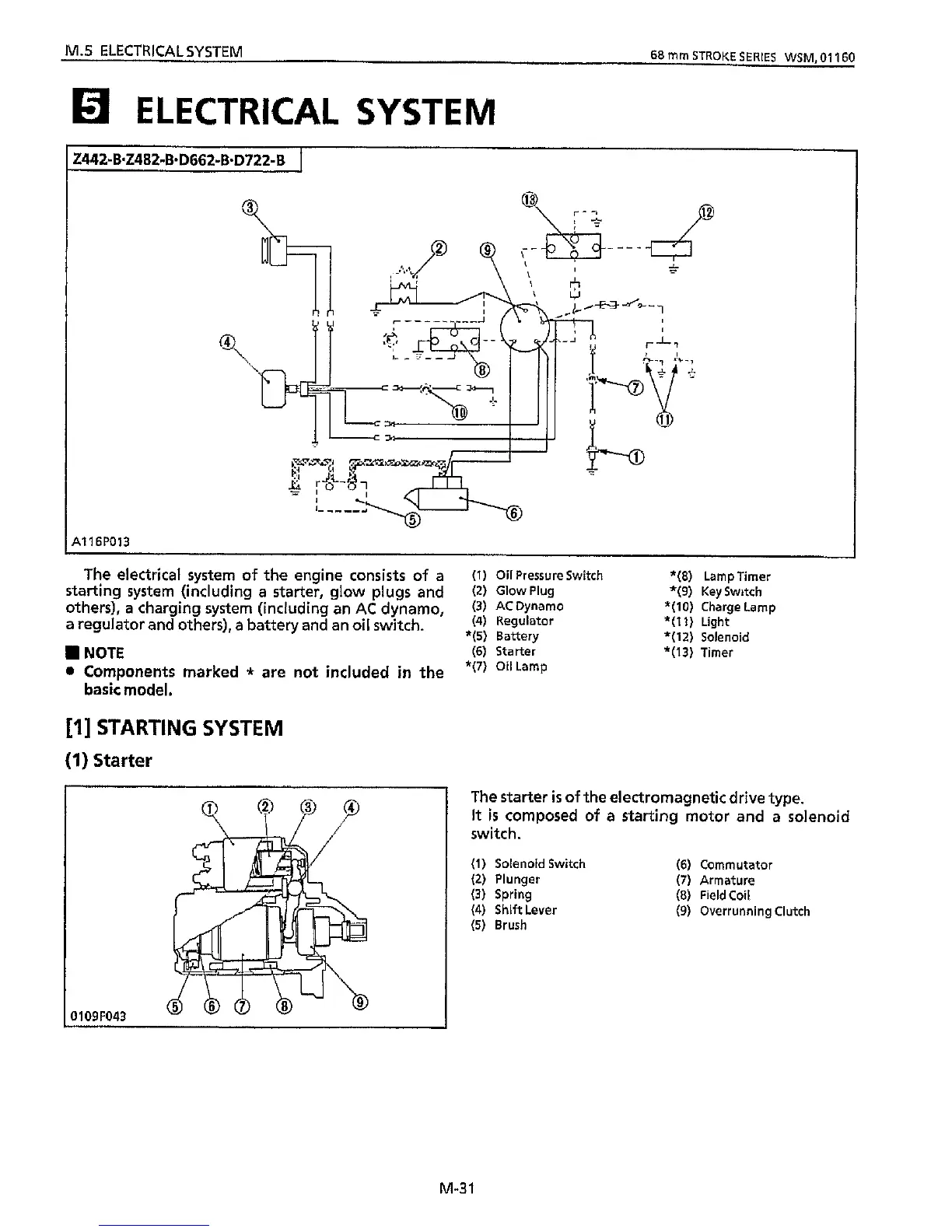

Eill ELECTRICAL SYSTEM
The electrical system of the engine consists of a
starting
system (including a starter, glow plugs and
others), a charging system (including an
AC dynamo,
a regulator and others), a battery and an
oil switch.
NOTE
0 Components marked * are not included in the
[I] STARTING SYSTEM
(1) Starter
basic model.
109F043
(2) GlowPlug
(3) ACDynamo
(4) Regulator
*(5) Battery
(6) Starter
"(7) Oil Lamp
*isj Key Switch
*(IO) Charge Lamp
*(11) Light
*(12) Solenoid
*(13) Timer
The starter is of the electromagnetic drive type.
It is composed of a starting motor and a solenoid
switch.
(1) Solenoid Switch (6) Commutator
(2) Plunger (7) Armature
(3) Spring (8) Field Coil
(4) Shift Lever
(5) Brush
(9) Overrunning Clutch
M-3 1
