M.5 ELECTRICAL SYSTEM 68 mm STROKE SERIES WSM, 01 160

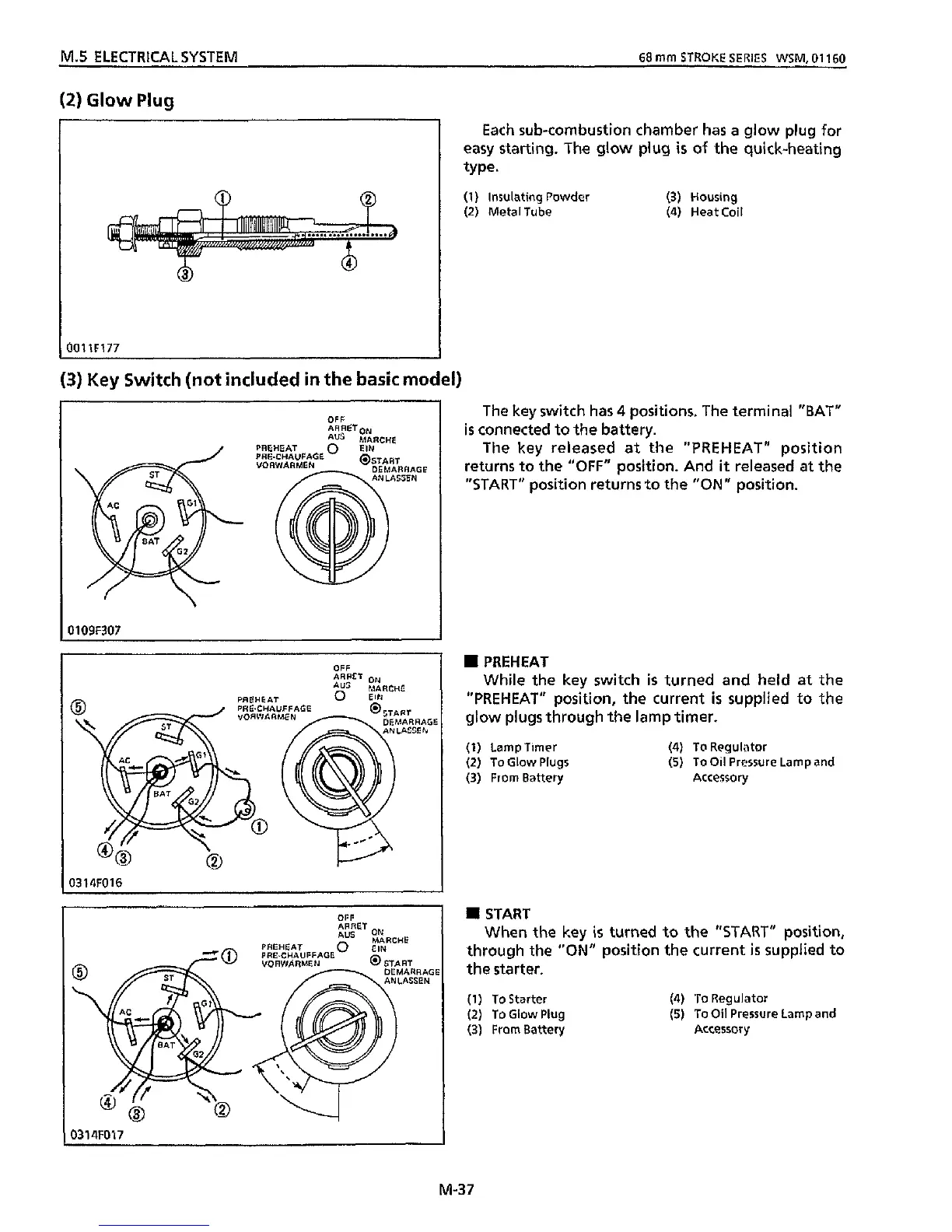

(2) Glow Plug
Each sub-combustion chamber has a glow plug for
easy starting. The glow plug is of the quick-heating
tY Pea
(1) Insulating Powder (3) Housing
(2) Metal Tube
(4) HeatCoil
(3) Key Switch (not included in the basic model)
OFF
ARREToN
PREHEAT 0 ElN
PRE.
VO R E
MARCHE
I0109F307
OFF
ARRET ON
MARCHE
w €IN
I 031UF016 I
The key switch has 4 positions. The terminal "BAT"
is connected to the battery.
The key released at the "PREHEAT" position
returns to the
"OFF" position. And it released at the
"START" position returns
to the "ON" position.
PREHEAT
While the key switch is turned and held at the
"PREHEAT" position, the current
is supplied to the
glow plugs through the lamp timer.
(1) Lamp Timer
(2) To Glow Plugs
(3) From Battery
(4) Ta Regulator
(5) To Oil Pressure Lamp and
Accessory
OFF
ARRET ON
PREHEAT 0 EIN
MARCHE
"0 PRE.CHAUFFAGE
0314F017
I START
When the key is turned to the "START" position,
through the
"ON" position the current is supplied to
the starter.
(1) To Starter
(2) To Glow Plug
(3)
From Battery
(4) To Regulator
(5) To Oil Pressure Lamp and
Accessory
M-37
