41PERIODIC SERVICE
ENGLISH

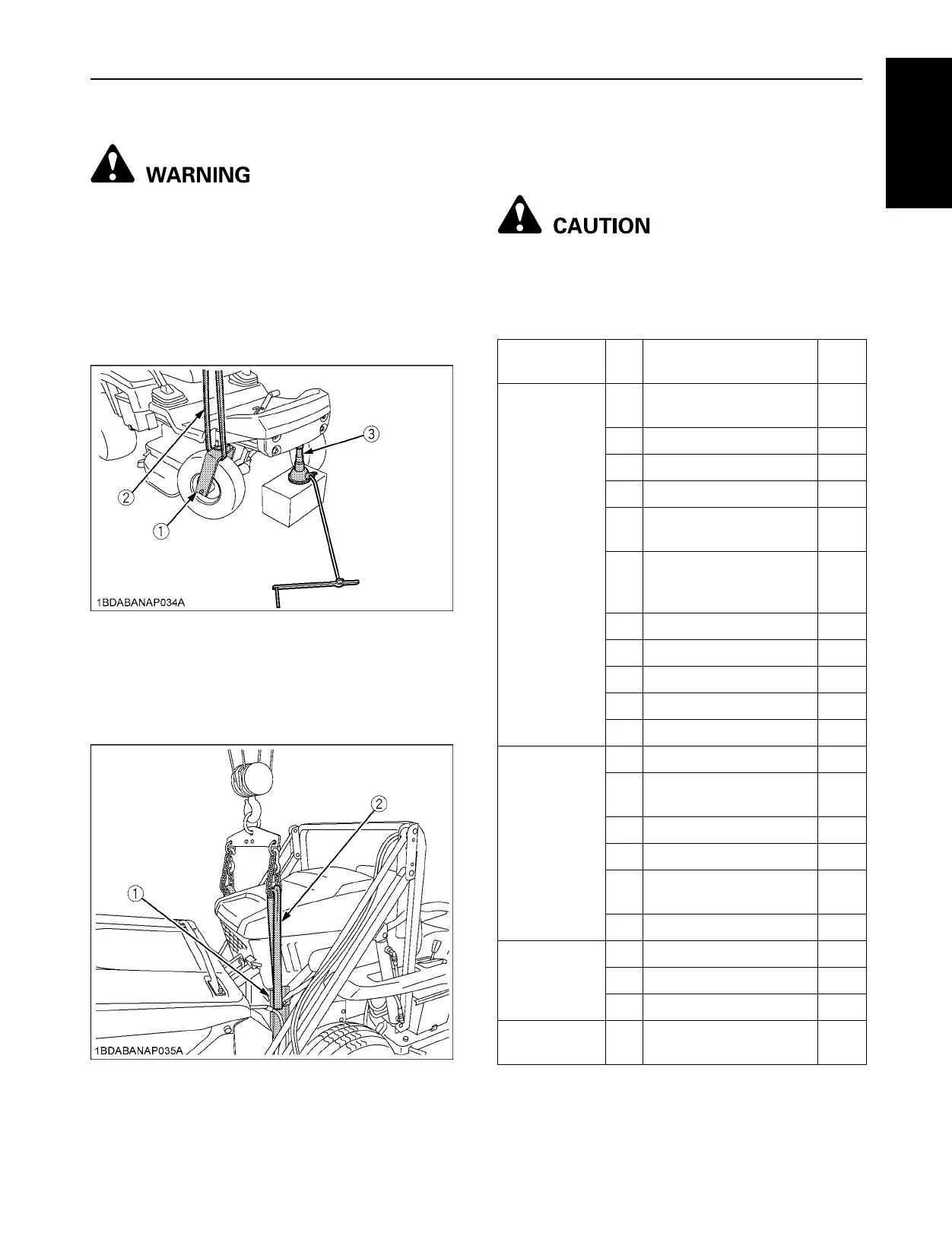

LIFT-UP POINT
To avoid personal injury, death or machine
damage:
A Do not work under the machine unless it is
secured by safe stands or suitable blocking.
BFront side:
Hoist the front wheel bracket with a nylon sling, or jack up
the front bumper.
Never lift up the mower deck.
BRear side:
Hoist the rear frame with nylon slings.
DAILY CHECK
To prevent trouble from occurring, it is important to know
the condition of the machine. Check it before starting.
To avoid personal injury:
A Be sure to check and service the machine on a
level surface with the engine shut off, the key
removed and the parking brake securely set.
(1) Front wheel bracket
(2) Nylon sling
(3) Jack
(1) Rear frame
(2) Nylon sling
No. Check item
Ref.
Page
Walking
around the
machine
1
Tire pressure, wear and
damage
33,44
2 Oil and water leak -
3 Engine oil level 42
4 Transmission fluid level 44
5
Coolant level in the
recovery tank
45
6
Damage to machine
body, tightness of all bolts
and nuts
-
7 Radiator screen 43
8 Panel screen 43
9 Brake play 57
10 Fuel level 42
11 Check air cleaner 48
Mower 1 Oil leak 49
2
Make sure blade bolts are
tight
66
3 Blade wear or damage 66
4 Check all hardware. -
5
Make sure all pins are in
place
-
6 Mower deck cleaning 32,46
While sitting in
the operator's
seat
1 Motion control lever -
2 Parking brake -
3 Other movable parts 47
Turning the
key switch "on"
1
Performance of the easy
checker light
16
To Next Page
