PERIODIC SERVICE
52
ENGLISH
A
For F model, remove shields and stays, and apply
grease.
(See "Cleaning Mower Deck" in "DAILY CHECK" in
"PERIODIC SERVICE" section.)
B

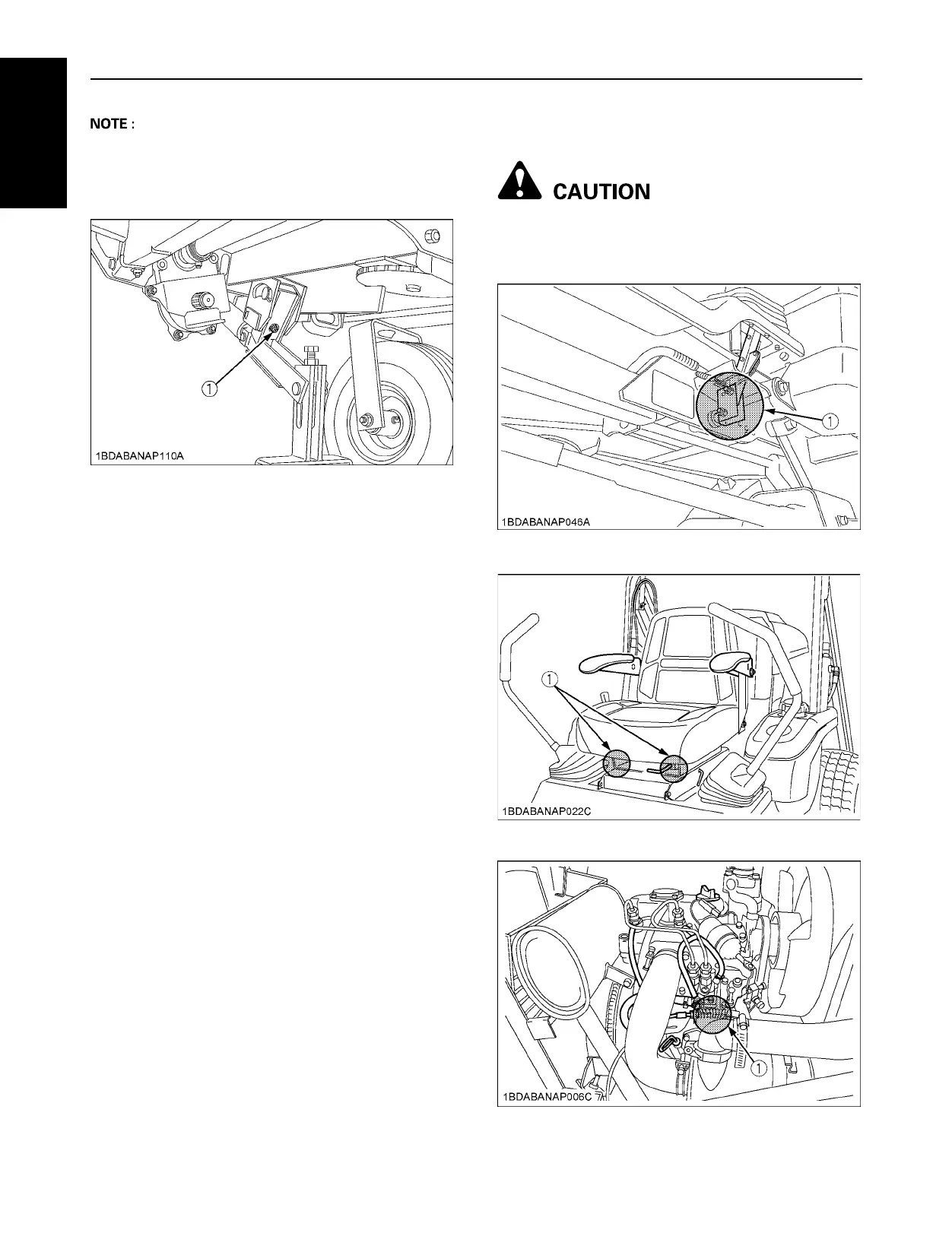

Oiling
To avoid personal injury:
A
Be sure to stop the engine and remove the key
before oiling.
Oil the following locations.
(1) Front l
ift arm
(1) Motion control levers (LH, RH)
(Oil)
(1) Seat adjuster (Oil)
(1) Throttle cable (Oil)
71
73
