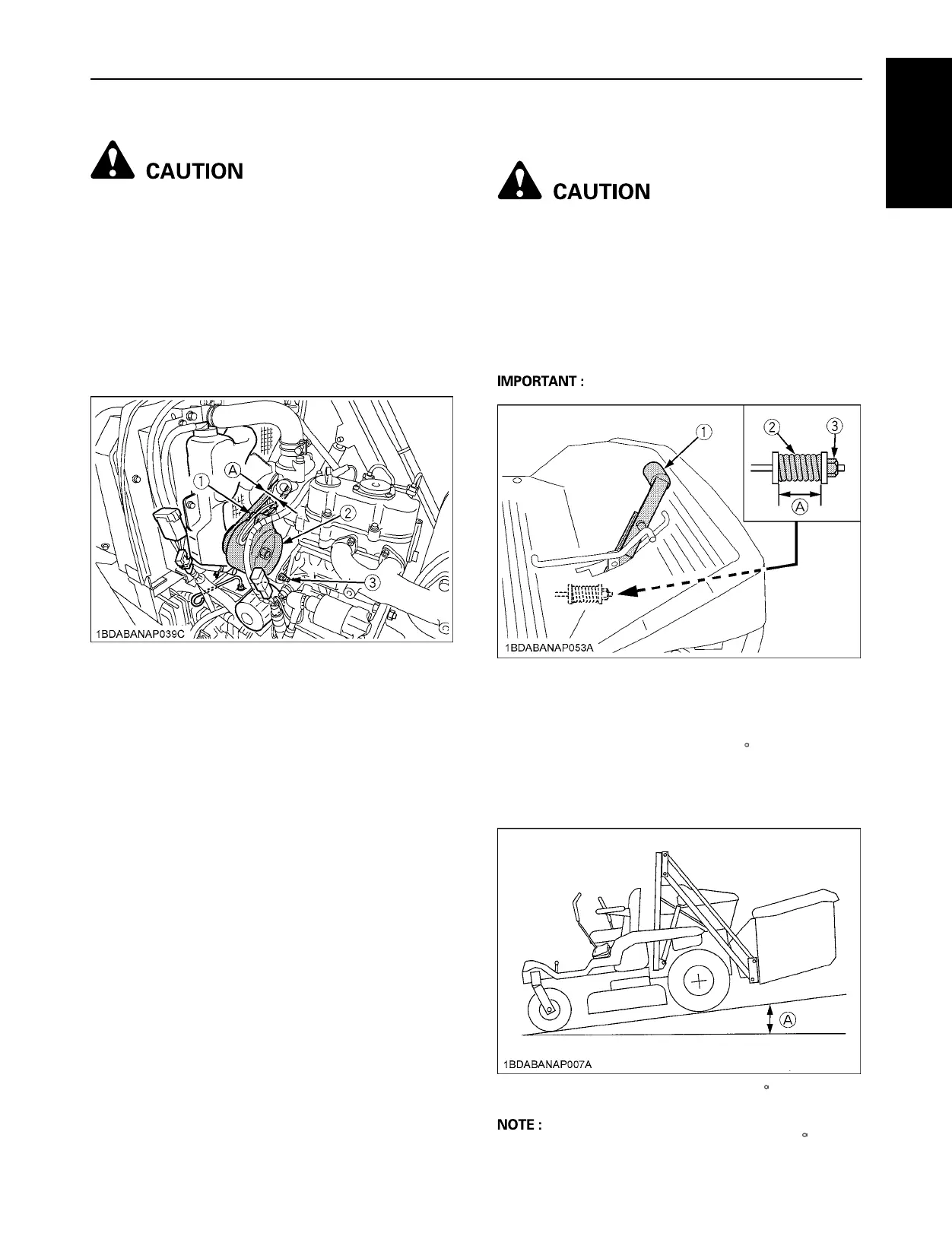

57PERIODIC SERVICE
ENGLISH
BChecking Fan Drive Belt Tension
To avoid personal injury:
A Be sure to stop the engine and remove the key
before checking belt tension.
If the fan drive belt becomes loose, the engine may
overheat. To adjust, loosen bolts and move the alternator
outward to tighten the belt. After adjustment, securely
tighten the bolts.
Moderate belt tension:
The belt should deflect approx. 10 mm when the center of
the belt is depressed with finger pressure of 98N (10kgf).
BChecking Parking Brake
To avoid personal injury:
A Stop the engine and chock the wheels before
checking or adjusting.
A Park the machine on a hard and level surface.
Apply parking brake and check the length (A) of the spring
(2).
If it is not correct, turn the lock nut (3) in the desired
direction until the proper length is achieved.
A Wrong adjustment may cause machine damage.
C Check on the slope
1. Place the machine on the under 17 ramp.
2. Apply the parking brake fully.
3. Place the motion control levers in "NEUTRAL LOCK"
position and shut off the engine.
4. Check that the machine does not move.
A For parking brake test purposes only use 17 ramp.
(1) Tension bolt
(2) Alternator
(3) Adjusting bolt
(A) 10 mm
(1) Brake pedal
(2) Spring
(3) Lock nut
(A) 27 mm
(A) "Under 17 "
