Kubota LX3310 User Manual

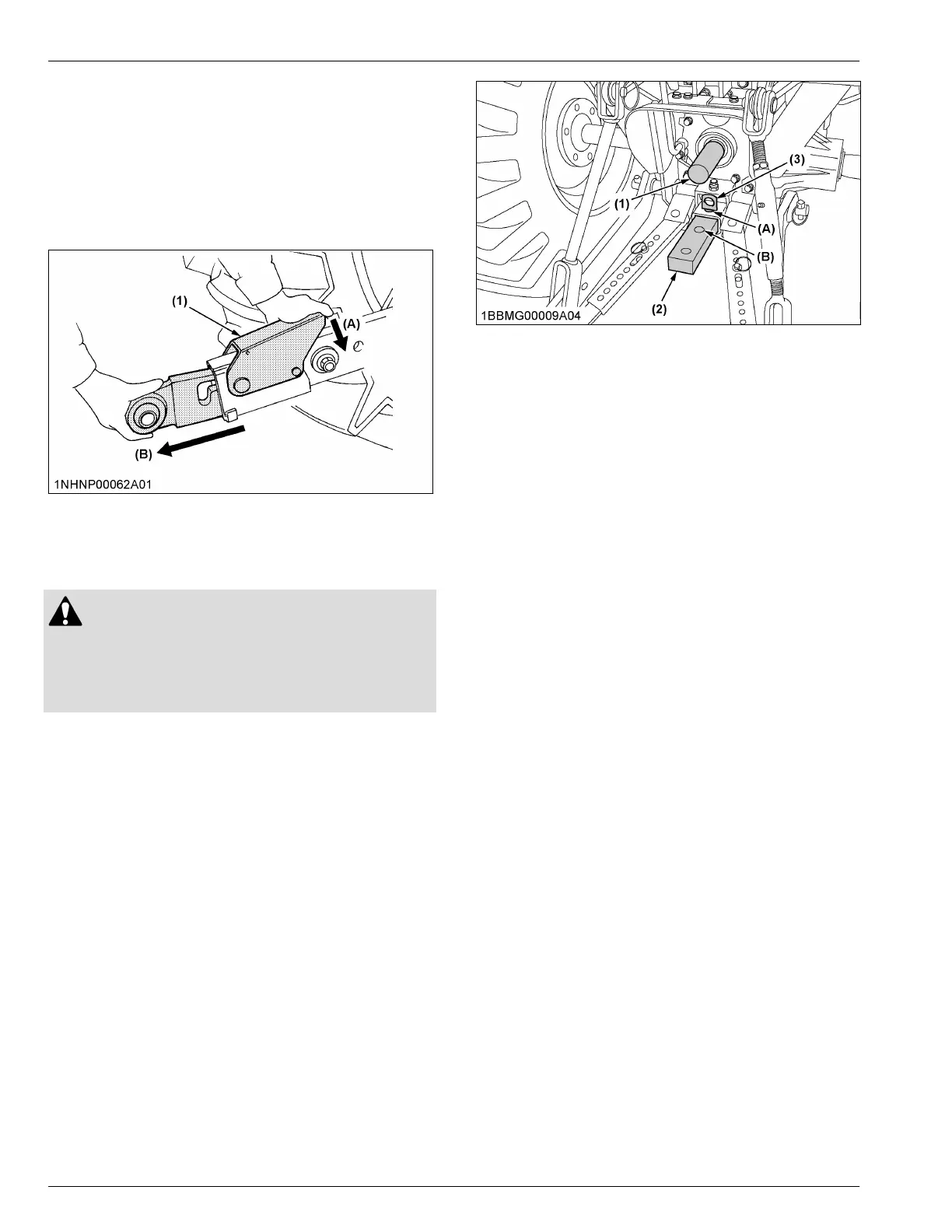

7. Telescopic lower links [CAB
model]
To attach an implement, follow the instructions below:
1. Push
the levers, pull out the lower link ends, and
attach to the implement.
2. Back up the tractor slightly to make sure the lower
links are pushed in securely.
(1) Lever (A) “PUSH”
(B) “PULL OUT”
DRAWBAR
WARNING
T
o avoid personal injury or death:
• Never pull from the top link, the rear axle or any
point above the drawbar. Doing so could cause
the tractor to tip over rearward.
1. Adjusting drawbar length
1. When
towing an implement, it is recommended that
hole (A) in drawbar be utilized.
2. For information about the drawbar load, read the
implement limitations section of this manual.
(See IMPLEMENT LIMITATIONS on page 35.)
(1) PTO Shaft cap
(2)
Drawbar
(3) Drawbar pin
(A) Hole
(B) Hole
3-POINT HITCH AND DRAWBAR THE 3-POINT HITCH SETUP
82
LX2610,LX3310

Kubota LX3310 Specifications

General

Engine Type	Diesel
Drive	4WD
Cylinders	3
Transmission Type	Hydrostatic
Hydraulic System Type	Open center
3-Point Hitch Category	Category I
Transmission	Hydrostatic
Fuel Capacity	8.5 gal
Displacement	91.5 cu in
Lift Capacity at 24" behind lift point	881 lbs (400 kg)
Length	115.2 in (293 cm)
Height	87.4 in (222 cm)
