Putting into service
Mower conditioner
FC313 RF
27

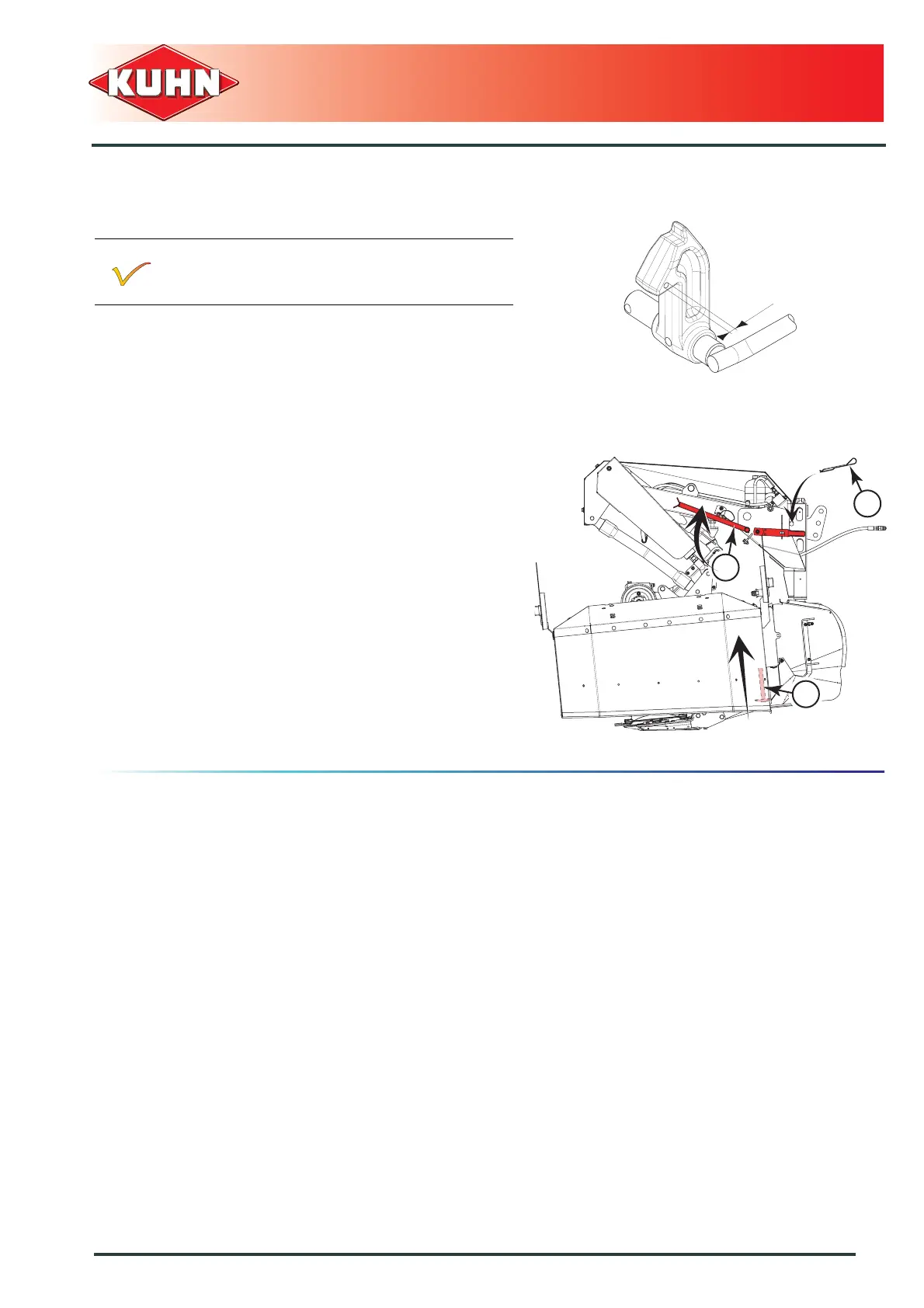

Coupling the machine
With the machine in parking position:
- Open machine swath shields to avoid interferences
with the tractor's "A" frame coupler.
- Lower the tractor's lift linkage and couple the machine.
- Lift the machine headstock using the tractor's front lift
linkage.
- Secure the "A" frame coupler lock using pin (1).
- Attach the primary pto shaft on the tractor's PTO stub.
- Connect the hydraulic hose to the single acting valve
with float position.
- Connect 7-pin plug to the tractor.
- Fold parking stand upwards and lock it (2).
- Fold up side parking stand and lock it in place (3).
If the diameter D of "A" frame coupler lock hole
is below 4.5 mm / 0.2’’, it must be enlarged.
D
1
2
3
