Mower conditioner
26
FC313 RF
Putting into service

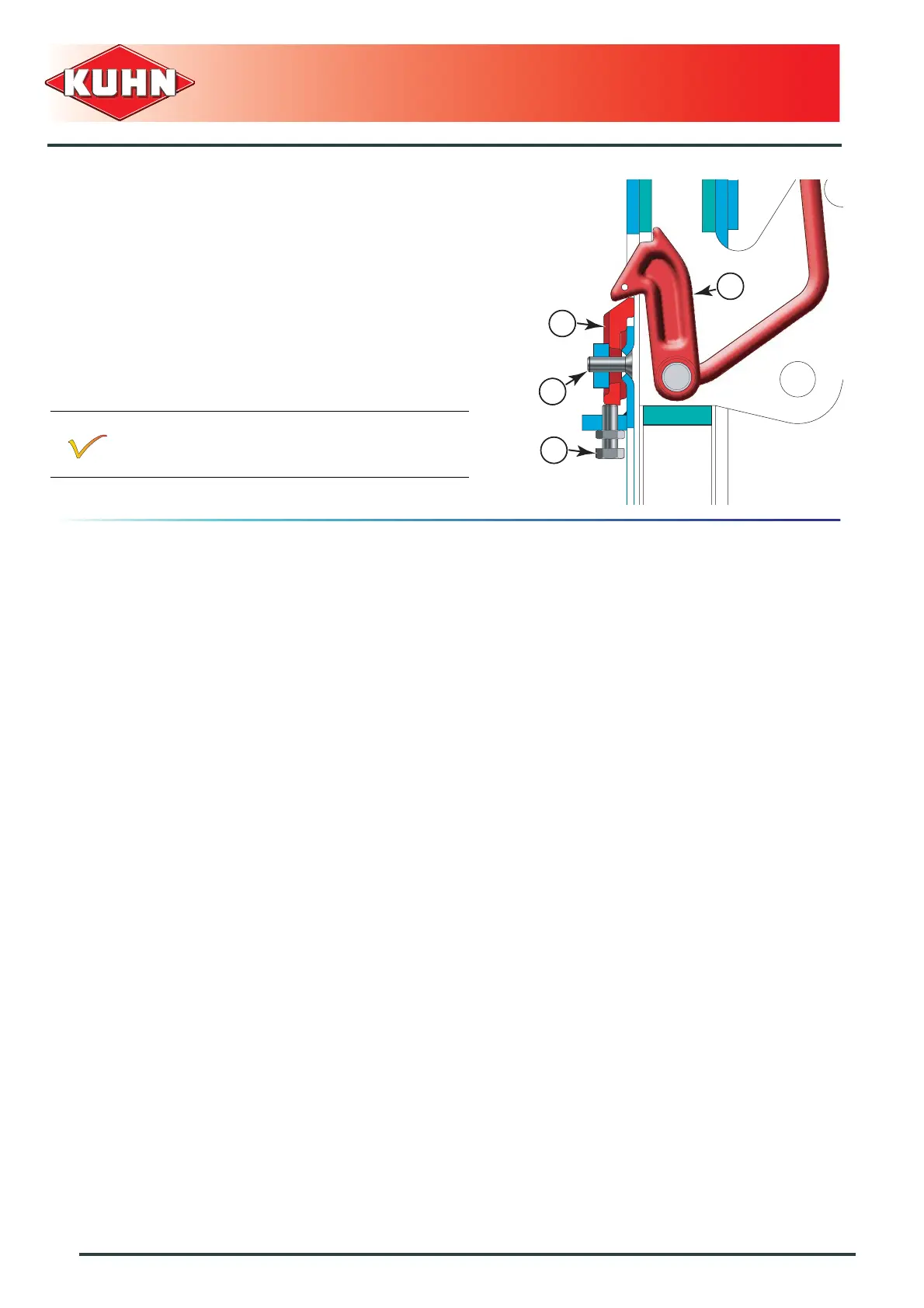

"A" frame lock adjustment
- Loosen the stop mounting screw (1).
- Couple the machine to the tractor.
- Rotate adjusting screw (3) until stop (2) contacts latch
(4).
- Check that latch is free to operate by pulling lever. If
operation is difficult untighten adjusting screw 1/2 half
a turn.
- Uncouple machine from tractor.
- Tighten lock nut of adjusting screw.
- Tighten lock nut of stop mounting screw.
Regularly check that stop is adjusted correctly,
especially each time the mower is adapted to a
new "A" frame coupler. Readjust if necessary.
1
2
4
3
