Mower conditioner
54
FC313 RF
Maintenance and storage

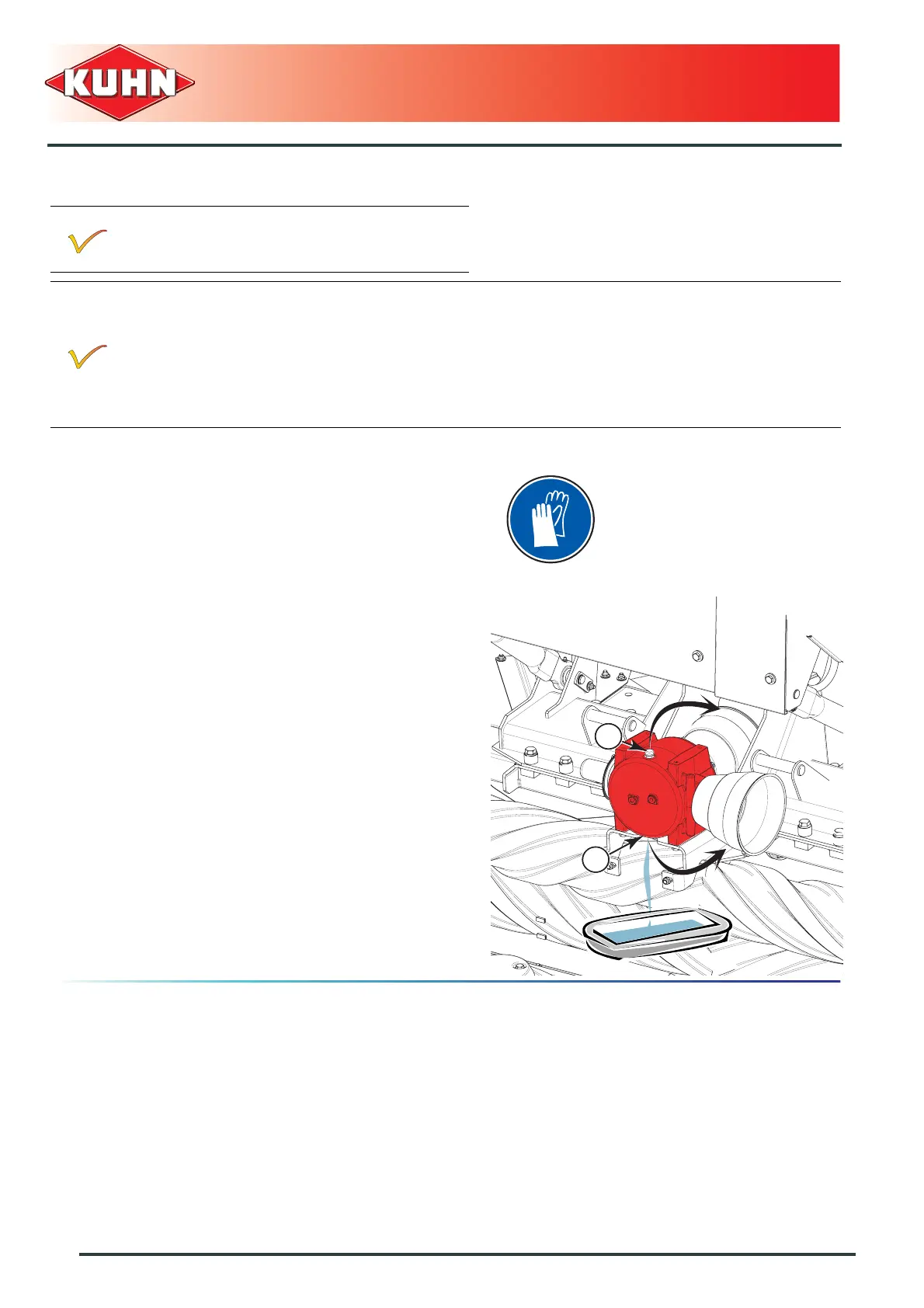

Central gearbox draining
- Remove filler plug (1).
- Place a container with a capacity of at
least 3 L (0.8 US gal) under plug.
- Remove drain plug (2).
- Allow oil to drain completely.
- Wait for dripping to stop.
- Clean and reinstall drain plug (2).
- Pour the correct oil quantity and quality through the
opening of the filler plug (1).
- Check central gearbox oil level.
Before draining oil, operate the cutterbar for a
few minutes so that the oil warms up.
2
1
The lateral gearbox is lubricated with 2.5 L (0.66 US gal) litre(s) SAE 80W grade SHELL oil (extreme
pressure) for mechanical transmissions.
When draining and refilling, it is recommended to use either a mineral base oil with viscosity grade
SAE 80W and API grade GL4, or a synthetic base oil, type PAO (Poly-Alpha-Olefins) with a viscosity
grade equivalent to SAE 80W.
In certain countries SAE 80W GL4 oil may not be available. In this case a GL4 or GL5 grade
SAE 80W90 oil is an acceptable substitute for GL4 SAE 80W oil.
