Instructions for work
Disc mower
GMD55 SELECT
39

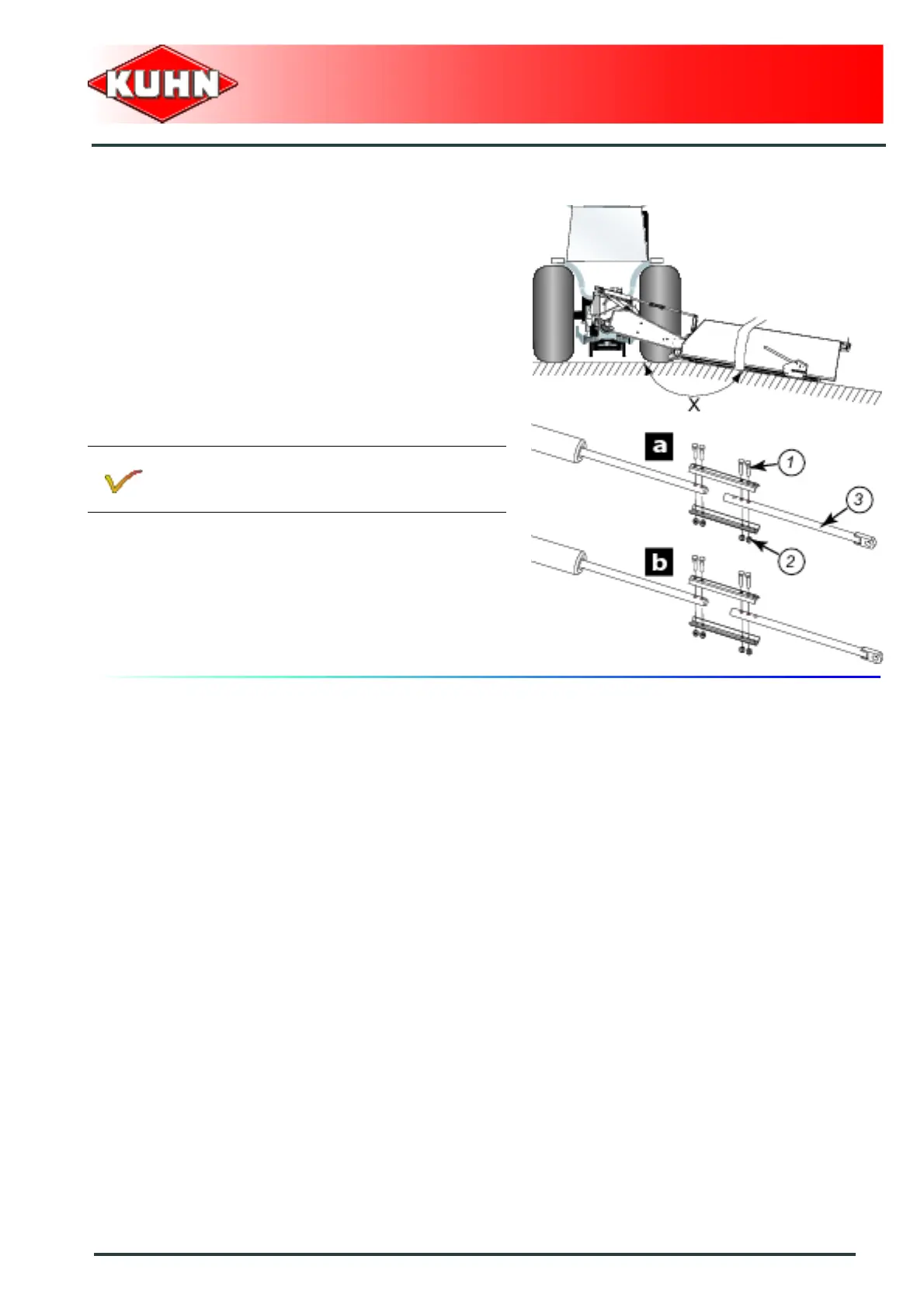

On slopes
For mowing on slopes exceeding 10° below horizontal,
lengthen cylinder rod.
To switch from configuration (a) to configuration (b):
- Remove bolts (1) and nuts (2).
- Offset rod (3) to the required position.
- Reinstall bolts (1) and nuts (2).
- Tightening torque: 4.9 daN m (36 lbf ft).
Coupling device (a):Work on flat grounds.
Coupling device (b):On slopes (X).
