Disc mower
24
GMD883
Putting into service
$PUTTING INTO SERVICE

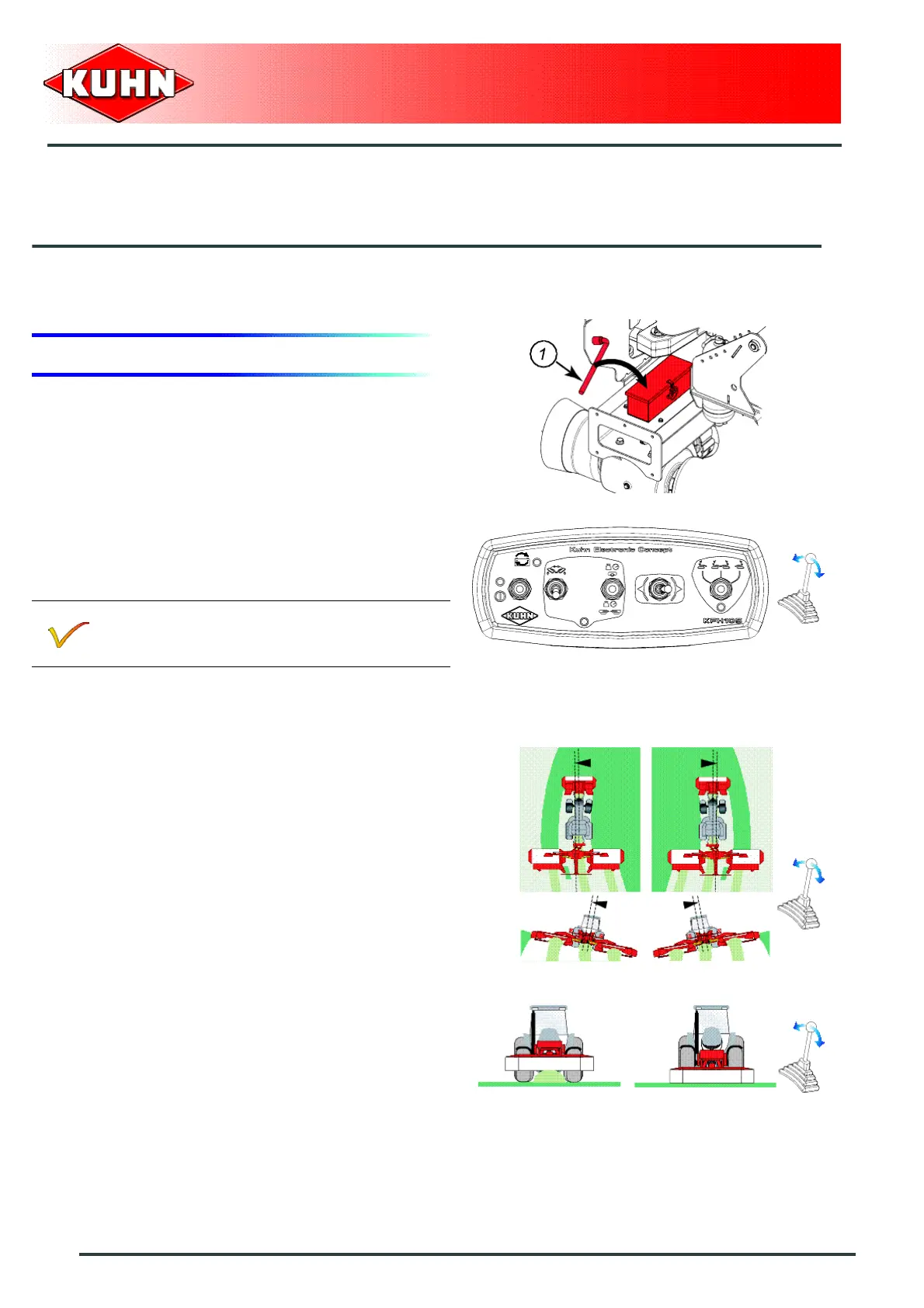

1. Description of control elements
The machine is supplied with an 18 mm box wrench (1)
to carry out certain adjustment and maintenance tasks.
The tractor must be equipped with:
- 1 double acting valve for use in combination with the
control box.
- 1 double acting valve for machine offsetting
manoeuvres.
- 1 single acting valve for setting the front unit in
transport/work position and vice-versa.
Operating principle: The operations are carried
out by combining the control box switches with
the hydraulic valve.
