KUHN GMD883 - Hydraulic Connections

Putting into service
Disc mower
GMD883
33

HYDRAULIC Connections
-

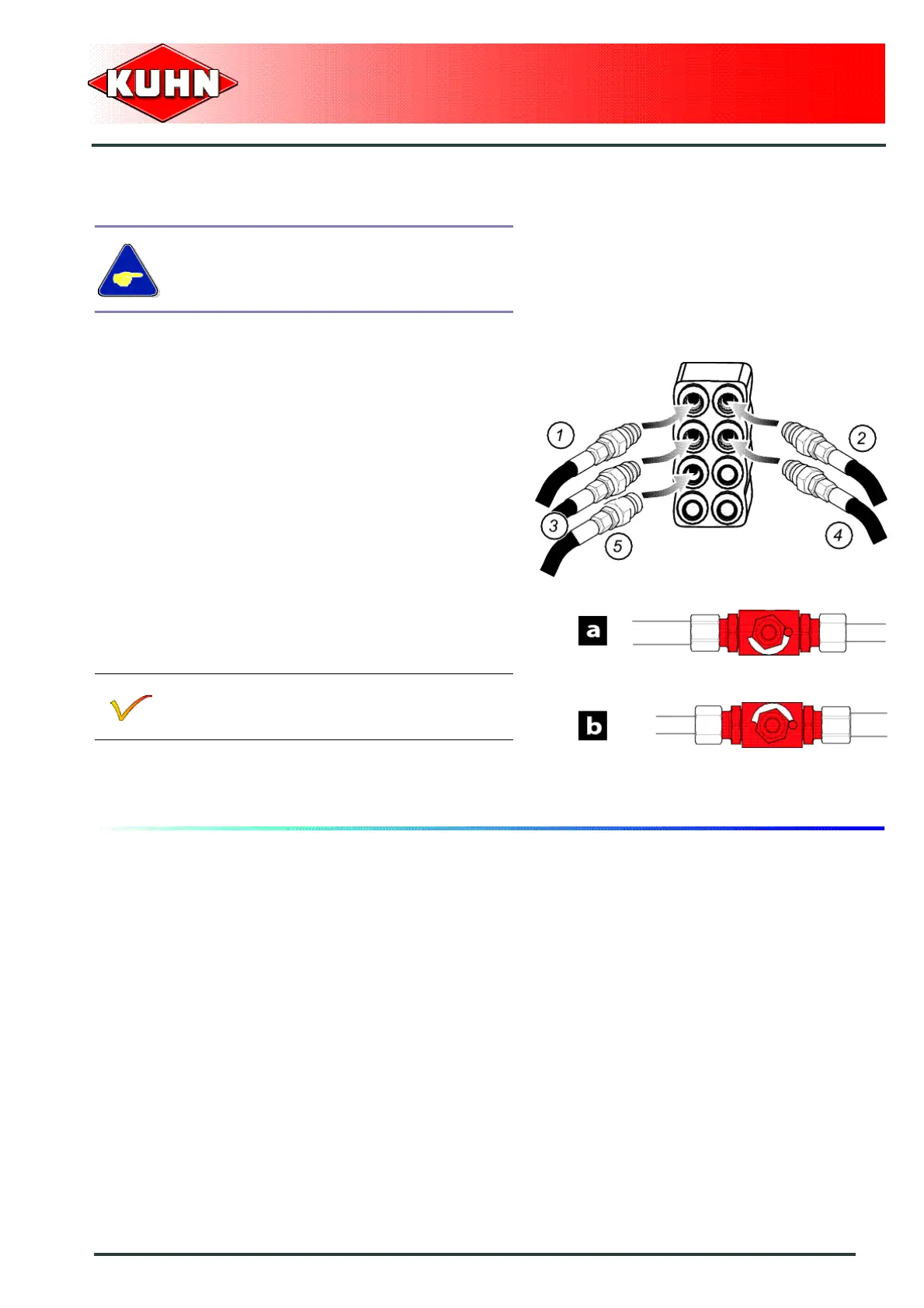

- Connect hydraulic hoses (1) and (2) to:
• 1 double acting hydraulic outlet.
- Connect offset cylinder hydraulic hoses (3) and (4) to:
• 1 double acting hydraulic outlet.
- Connect front mounted mower hydraulic hose (5) to:
• 1 single acting hydraulic outlet.
Check that all suspension system valves are shut-off.
The machine hydraulic suspension circuit is
pressurized at the factory.
Position a: Circuit open.
Position b: Circuit closed.
