Power harrows
64
HRB353D - 403D
Optional equipment
Adjustments

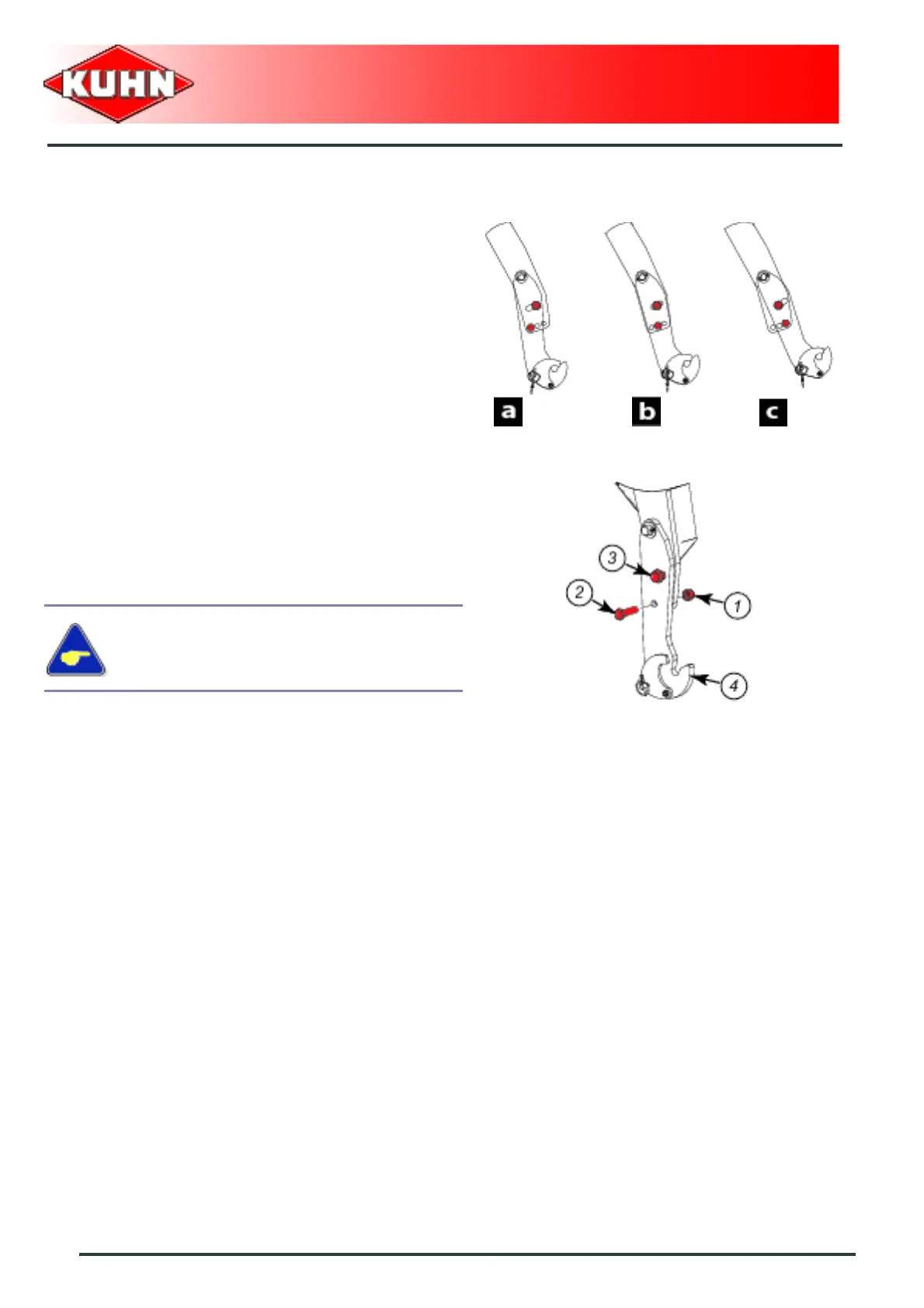

Attachment brackets:
The attachment hooks can be fitted in 3 different
positions to obtain best adaptation of the additional
machine.
- Loosen screw (3).
- Remove bolt (2) and nut (1).
- Place hook (4) in the required position.
- Reinstall bolt (2) and nut (1).
- Tighten bolts (2) and (3). Tightening torque: 42 daN m
(309 lbf ft):
Adjust both sides to the same setting.
