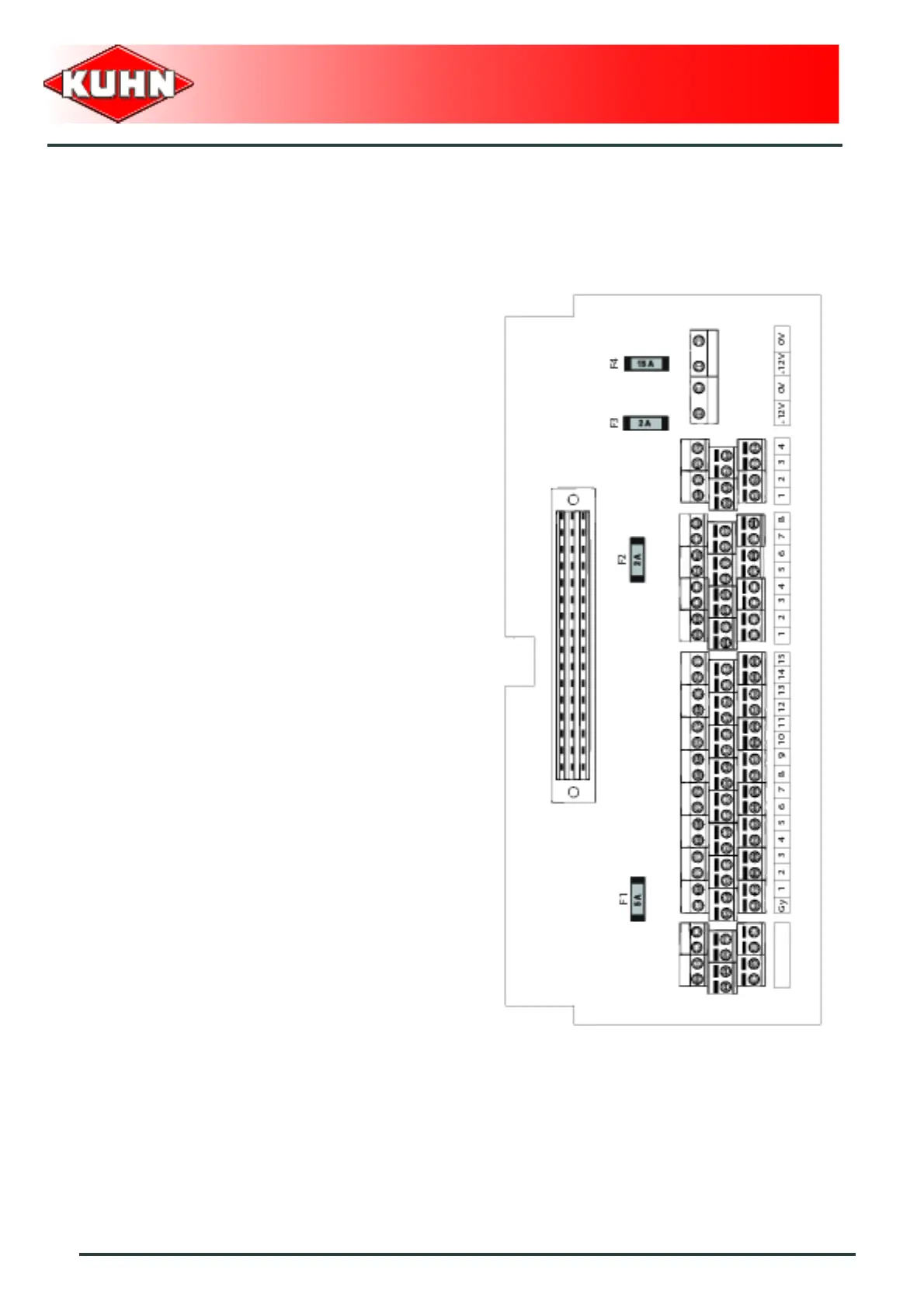

Control box
68
RPB
Trouble shooting guide
î Housing: Solenoid valve block
Outputs:
Gy H: Relay control.
Gy M: +12V Flashing light.
1H: Reserved.
1M: Reserved.
2H: Reserved.
2M: Reserved.
3H: On / Off.
3M: Automatic / Manual.
4H: Left outer arm opening.
4M: Left outer arm closing.
5H: Opening central arms.
5M: Closing central arms.
6H: Right outer arm opening.
6M: Right outer arm closing.
7H: Auxiliary down.
7M: Auxiliary up.
8H: Locking.
8M: Unlocking.
9H: Lowering left variable geometry.
9M: Raising left variable geometry.
10H: Lowering right variable geometry.
10M: Raising right variable geometry.
11H: Lowering height.
11M: Raising height.
12H: Slope left.
12M: Slope right.
13H: Drawbar left.
13M: Drawbar right.
14H: Reserved.
14M: Reserved.
15H: Reserved.
15M: BYPASS valve.
From 1B to 15B: Ground.
Signalling
Outputs Sensors BUS CAN
Supply
