KUHN RPB User Manual

Trouble shooting guide
Control box
RPB
69
Sensors:
1M: Signal frequency: Wheel.
2M: Analog signal: Gauge.
3M: Analog signal: Follower axle/Self-steering axle:
Front.
4M: Analog signal: Follower axle/Self-steering axle:
Rear.
5M: Reserved.
6M: Analog signal: Height.
7M: Reserved.
8M: Signal frequency: Reverse.
From 1H to 8H: +12V.
From 1B to 8B: Ground.

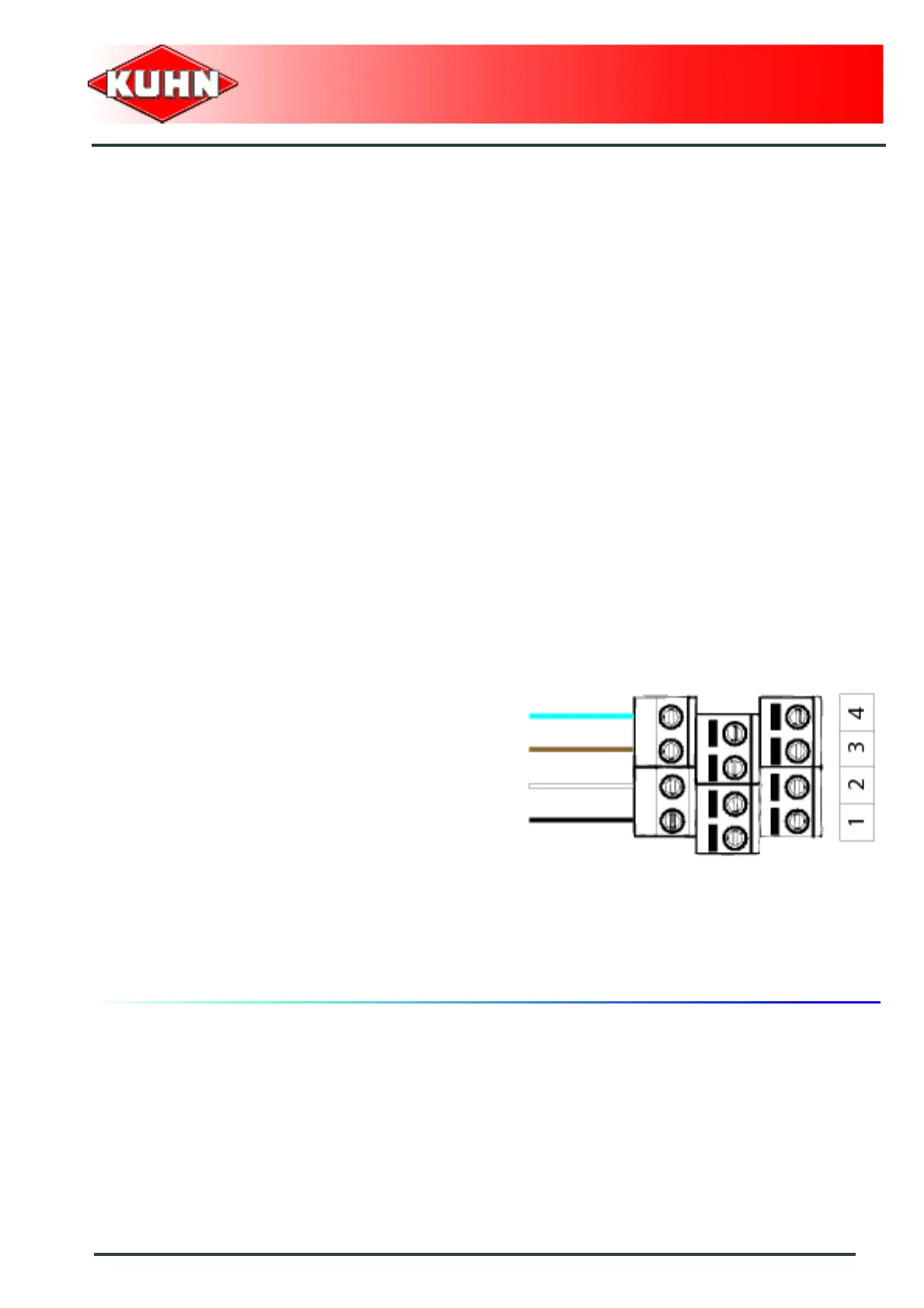

BUS CAN:
Harness connection:
From 1H to 4H.
or
From 1M to 4M.
or
From 1B to 4B.
1: +12V.
2: CAN HIGH.
3: CAN LOW.
4: Ground.
Blue
Brown
White
Black
