Kuschall Compact User Manual

ProductOverview

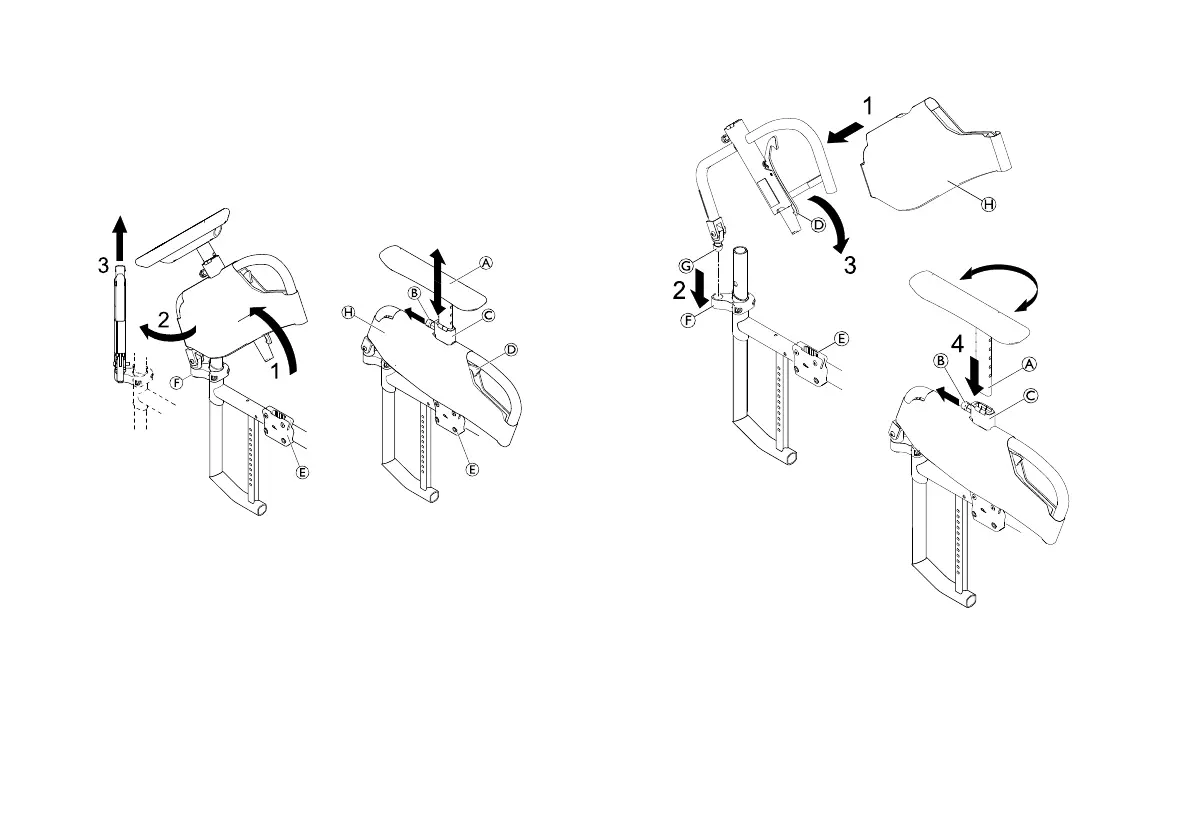

3.8.3KüschallArmrest
Thisarmrestoptionislockinginplaceandcanbeipped
backwards,swivelledoutwardsandremoved.TheT-armrest
padisheightadjustableandalsolocksinplace.
RemovingtheArmrest
1.PushreleaseleverDandswivelthearmrestassembly
upwardsoutofthearmrestholderE.
2.Swivelthearmrestassembly45°outwards.
3.PullthearmrestassemblyupwardsoutofthejointF.
RemovingtheCover
Thecovercanberemovedtobemachinewashedat30°C.
1.PulloutthespringboltlockB,grabtheT-armrestpad
AandpullitoutoftheholderC.
2.RemovethecoverHfromthearmrestassemblyby
openingthehook-and-loopfastenersonbothsides.
InstallingtheArmrest
1.InstallthearmrestcoverHtothearmrestassembly
ifnotyetattached.
2.InsertjointpinGofthearmrestassemblyintothejoint
Funtilitengageswithanaudible“click”.
3.Swivelthearmrestassemblydownwardsintothe
armrestholderEuntilthereleaseleverhookD
engageswithanaudible“click”.
1659285-C
21

Kuschall Compact Specifications

General

Foldable	Yes
Frame Material	Aluminum
Category	Wheelchair
Type	Manual
Wheel Size	24 inches
Seat Width	36 - 51 cm (14 - 20")
