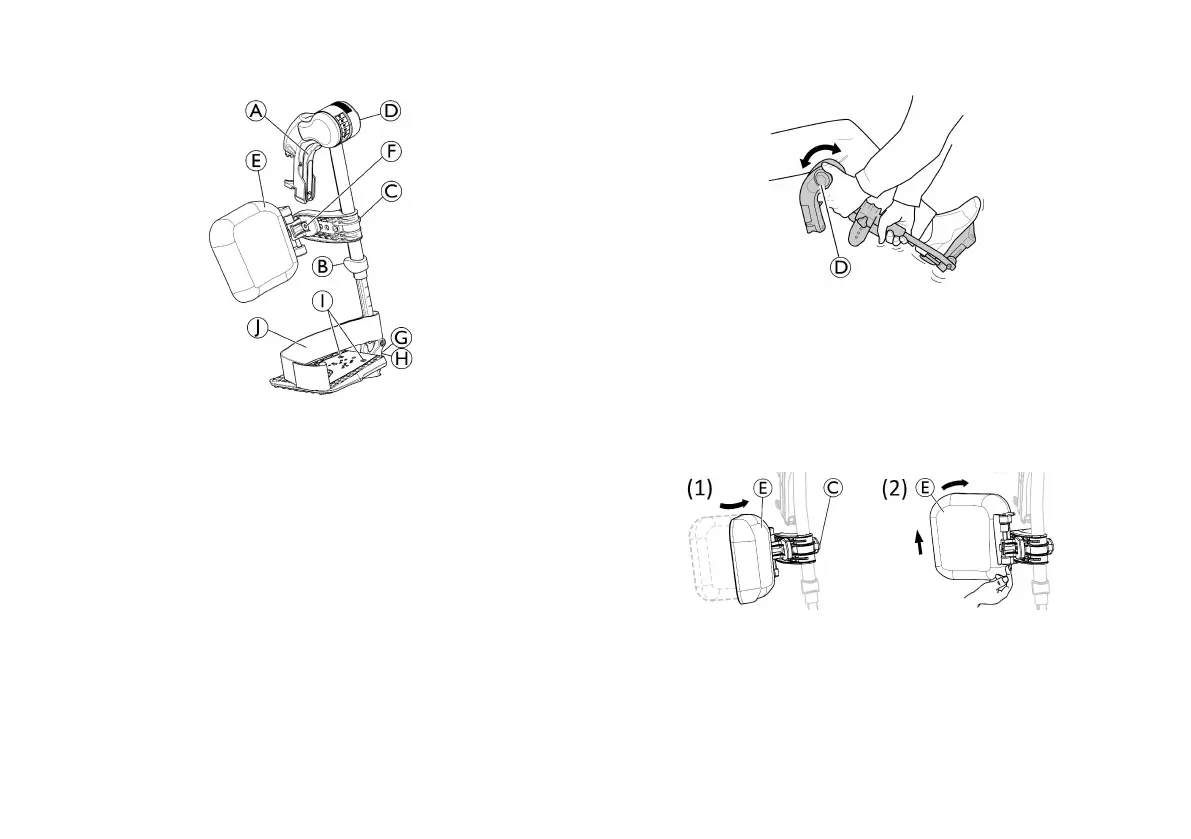

4.7Swingaway,angleadjustablelegrests
Swingingoutwards
1.ActivatethereleaseleverAandswingthelegrests
outwards.
Swingingforwards
1.Swingthelegrestforwardsuntilitengages.
Unhinging
1.ActivatethereleaseleverA,swingthelegrest
outwards.
2.Pullthelegrestupwards.
Hinging
1.Pushthelegrestdownintoitsreceiverandswingit
forwardsuntilitengages.
Adjustingangle
Therearesixpresetpositionsavailableforangleadjustment.
1.RotatetheknobDwithonehandwhilesupportingthe
legrestwithyourotherhand.
2.Whenasuitableangleisobtained,letgoofftheknob
andthelegrestwilllockintothedesiredposition.
Swingingcalfpadandadjustments
•Swingingcalfpadforwards(1)orbackwards(2):
1.SwingcalfpadEforwards(1).
2.PullupthecalfpadEandswingitbackwards(2).
•Adjustingheightofcalfpad:
1.LoosenknobC.
2.Adjusttothedesiredheightandrmlytightenthe
knob.
321659285-C

Kuschall Compact Specifications

General

Foldable	Yes
Frame Material	Aluminum
Category	Wheelchair
Type	Manual
Wheel Size	24 inches
Seat Width	36 - 51 cm (14 - 20")
