Kuschall Compact User Manual

Küschall®Compact
1.ThreadtheloopFthroughthexationonthechairG
andthenthroughBOTHplasticbucklesH.

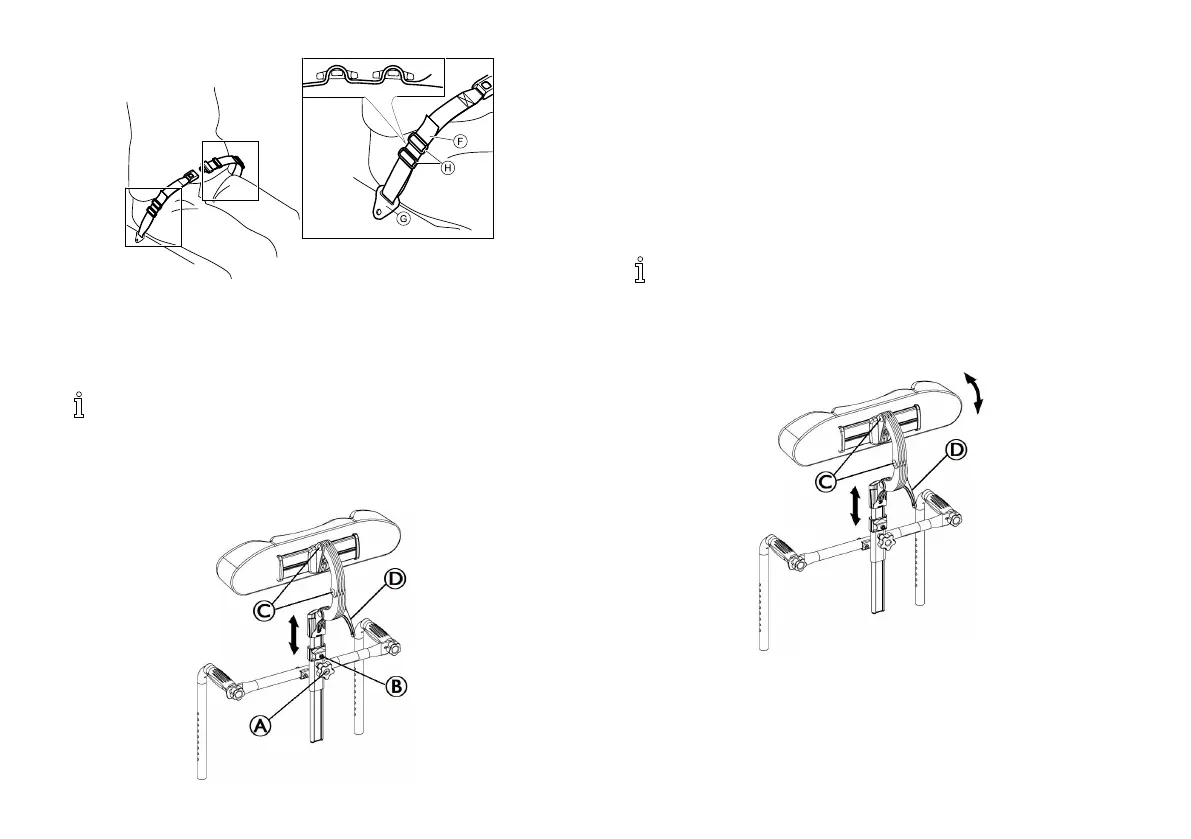

4.3Headrest
Theheightandtheremovalareoperatedbythe
handwheel.Thebarisequippedwithanadjustable
stopblock.
Heightadjustment
1.LoosenthescrewBwith5mmAllenkey,inthestop
block.
2.LoosenthehandwheelA.
3.Adjusttheheadresttothedesiredposition.
4.Re-tightenthehandwheelAdowntothetopofthe
headrestattachment.
5.Slidethestopblock.
6.Re-tightenthescrewB(2–3Nm).
Itisnowpossibletoremovetheheadrestand
reinsertitinthedesiredpositionwithoutfurther
adjustments.
Depth/angleadjustment
1.LoosenthehandleD.
2.LoosenthescrewsCwith5mmAllenkey.
3.Adjustthedepthandangleoftheheadrest.
4.Re-tightenrmlythehandleDandthescrewsC(7
Nm).
