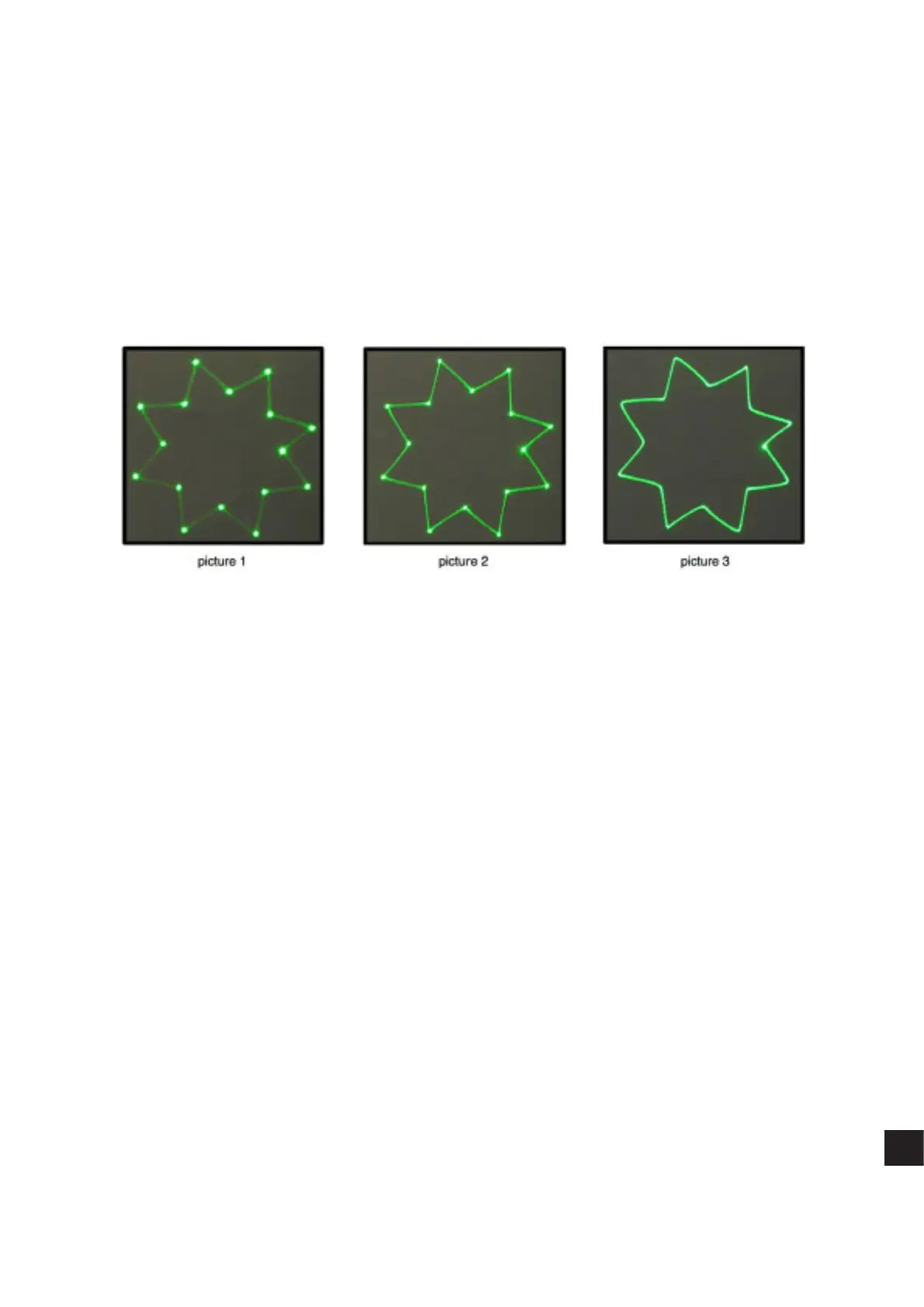

Inthe following pictures you see the same star eect scanned atdierent scan rates atfull scanning angle (60degrees).
Picture 1: the scan rate and/ornumber
of points is too low. The corner
points are more visible than the lines
between them and the whole eect
flickers. The scan-rate and/ornumber
ofpoints needs tobeincreased.
Picture 2: the scan-rate and/
or number of points is about right.
The whole eect has more orless the
same intensity and does not flicker.
Picture 3: further increasing of the
scan-rate and/or number of points
results inthe eect starting todistort,
firstly around corners only. This
indicates that you are exceeding the
maximal scan rate of the scanning
system! If you operate the scanning
system at scan-rates higher than the
maximum scan-rate of the scanning
system the scanners will get damaged
irreversibly due to overheated coils
damaging rotor magnets.
