7.1
 

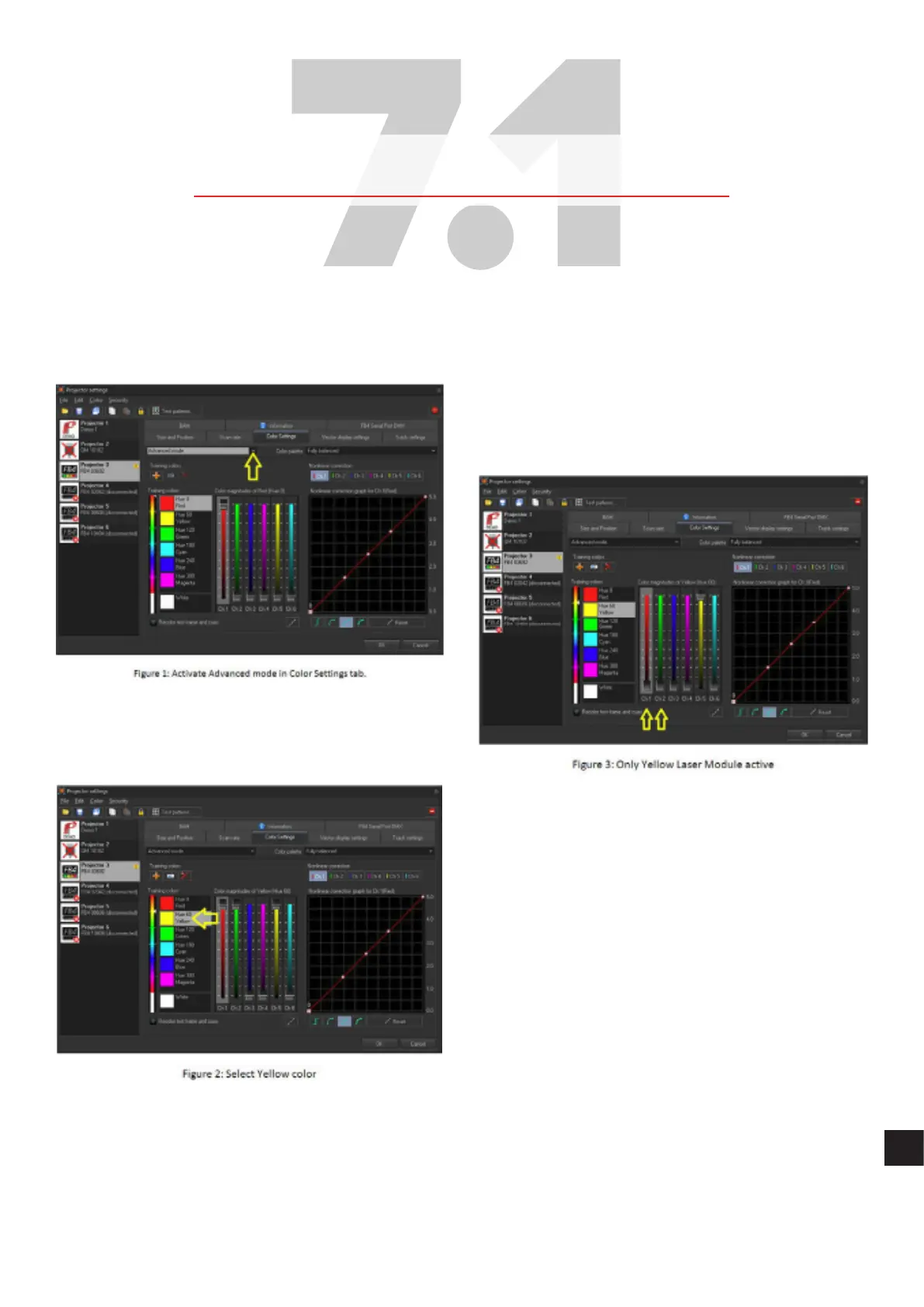

To control Yellow colour in Beyond/QS mode, it is neces-
sary to activate „Advanced Mode” in Color Settings tab for
selected projector. See „yellow arrow” on figure 1.
As we are interested in Yellow colour now, please click
on yellow rectangle as indicated by „yellow arrow”
onfigure 2.
This isdefault setting for Yellow colour. Ifany yellow image
is projected by RGBY laser projector using this setting,
RGBY projector will turn ONRed, Green and Yellow Laser
Module.
If it is required to project any yellow image ONLY with
Yellow Laser Module, it is necessary to disable Red and
Green module using Red and Green faders. See figure 3.
