KVANT Spectrum Series Operational Manual

14  41
EN
2.8
    
!
Please make sure that all laser display
safety requirements are fulfilled
inaccordance with laws ofthe country
where this KVANT laser system isbeing
used before switching the system ON.
1. Connect the system as showed on Connection
Diagram.
2. Turn both E-STOP Remote and laser system safety
keys toONposition.
3. Release the E-STOP button bypulling itupwards.
4. Open the aperture window by loosening the bolt
atthe bottom ofthe aperture, adjust the masking plate
todesired position and tighten the bolt tosecure it.
5. Press the START button onthe E-STOP Remote.
6. After anEmission Delay Period the laser projector will
beready for use.
Interlock Enabled, Laser Output Terminated
The Interlock is latched enabled and the laser
projector’s beam output will be terminated if any of the
following events happen:
1. Power loss lasting greater than 2 seconds.
2. Mushroom emergency switch depressed.
3. #2 Key Switch on E-STOP Remote turned to OFF
position.
4. #1 Key Switch onlaser projector turned toOFF position.
5. Any other interruption toline No.1 ofthe cable leading
to the E-STOP Remote. This includes any user
interlocks connected inseries in the line No.1of this
cable. Refer toConnection Drawing below.
Restarting Laser After Interlock orPower Failure
Event
After the event has been corrected the START button
onthe E-STOP Remote must bepressed bythe operator
todisable the Interlock and after anEmission Delay period
the laser projector will beready for use.

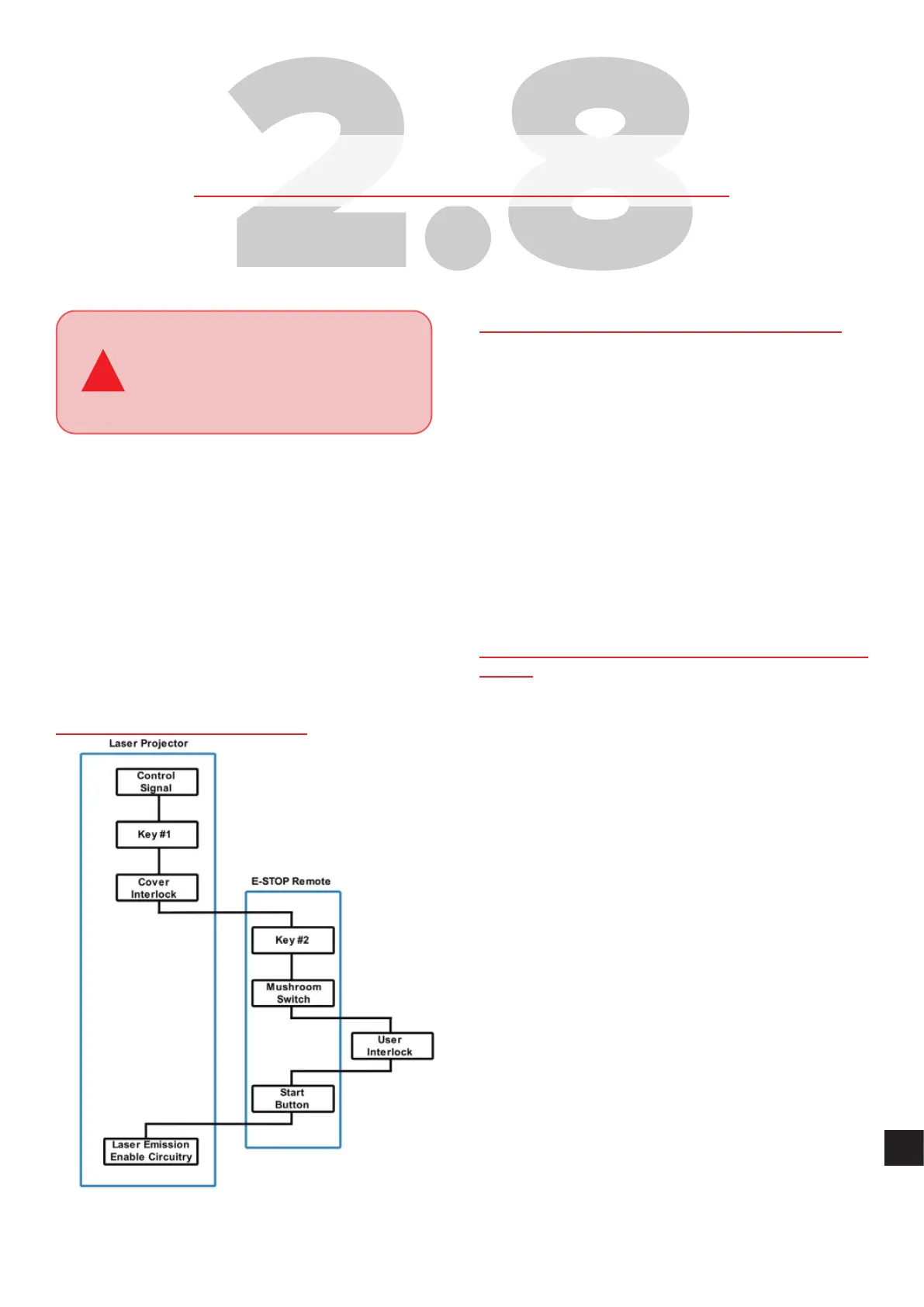

Interlock Connection Diagram
