KVANT Spectrum Series Operational Manual

30  41
EN

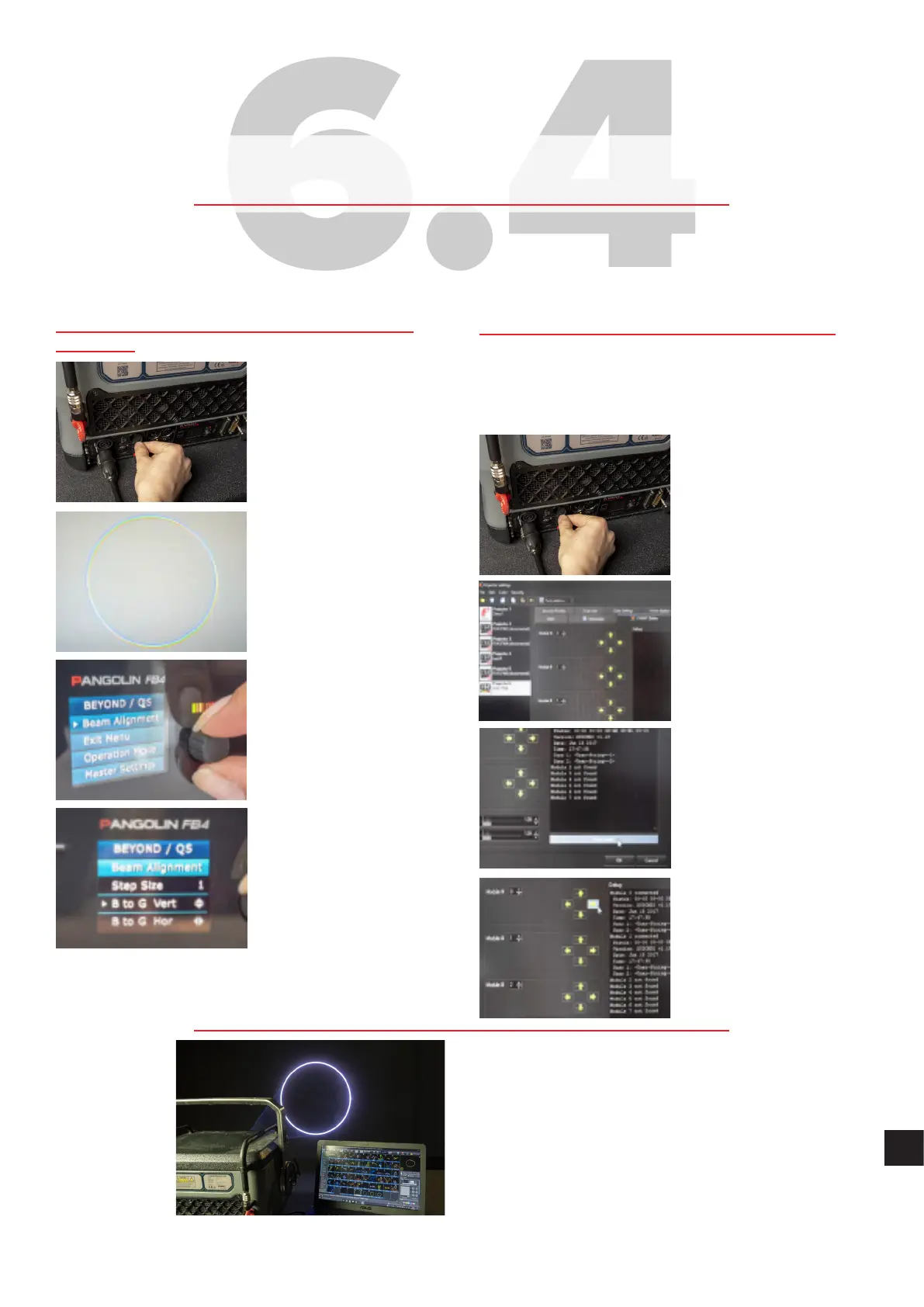

1. Adjusting colours directly from Spectrum
interface
A: Power up the system
asstandard.
B: Create a full-size white
circle (static tunnel eect).
C: Find Beam Alignment
option inthe menu and enter
it by pressing the rotary
knob.
D: Here you can set the STEP
SIZE (amount of movement
in a single step), and
VERTICAL / HORIZONTAL
movement for every colour
in your projector (R=RED,
G=GREEN,B=BLUE,
Y=YELLOW).
2. Adjusting colours from Beyond software
Beyond automatically identifies Motorised
Dichroic Filters when the laser projector
isconnected (and powered up) tothe PCvia
Ethernet.
A: Power up the system
as standard and create
afull-size white circle (static
tunnel eect).
B: Goto:
PROJECTOR SETTINGS
-> KVANT DICHRO tab.
There you will find all the
information and control
options for the dichroic
filters.
C: Tostart the beam
alignment, press the READ
STATUS button.
D: Start with the first dichroic
filter (laser module1) and/
orany other asnecessary.
Use the arrows associated
with each module tomove
the beam tothe desired
position.
When the alignment procedure issuccessful,
you will see all the colours nicely overlaying
each other, resulting inaneven, bright and
sharp white circle.
