KVANT Spectrum Series Operational Manual

20  41
EN
5 .1
 
1
2
3
4

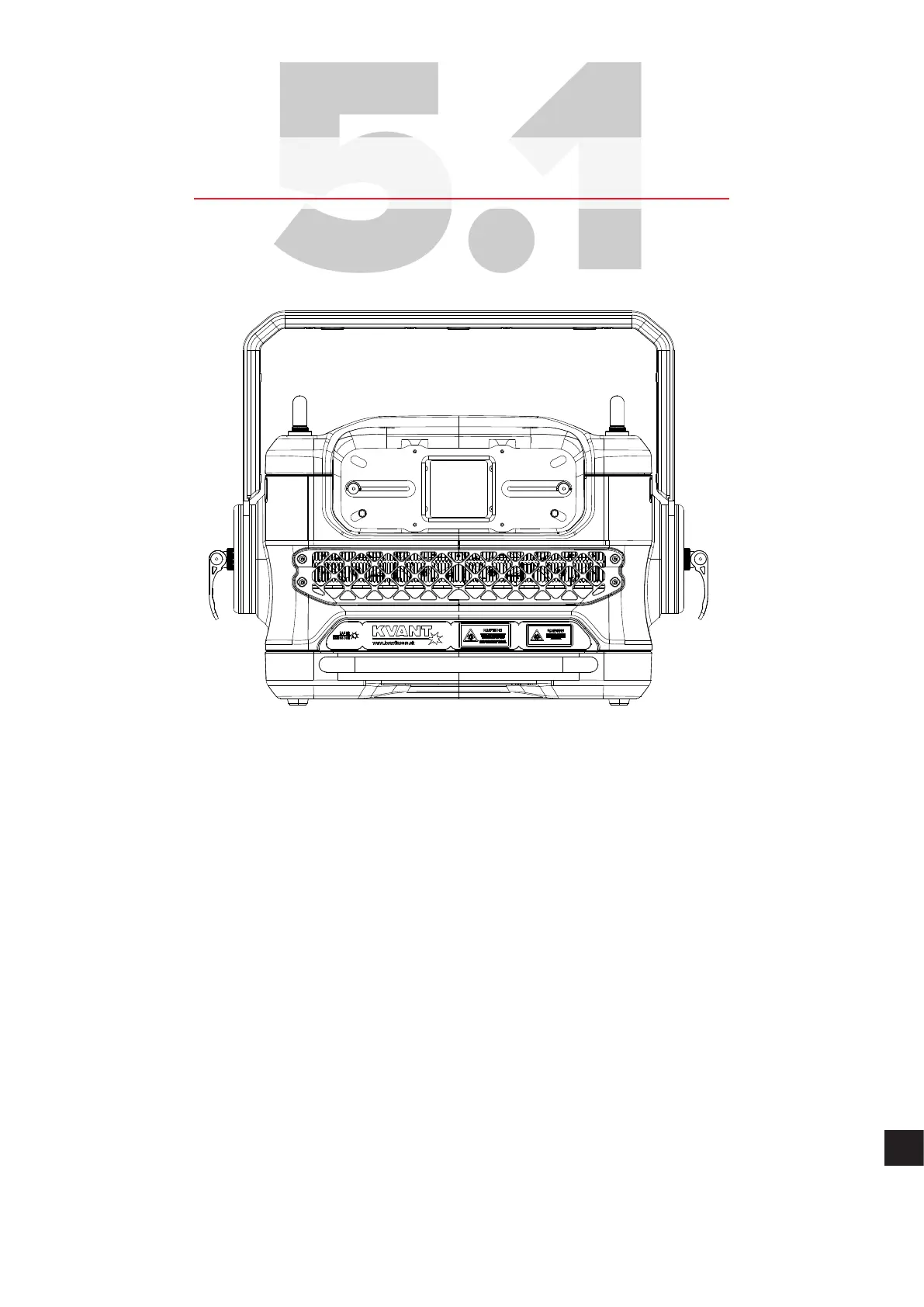

1. Laser aperture.
Toclean the laser aperture window from inside ortoswap the
aperture plate for dierent type ofaperture (i.e.DiscoScan
lens attachment bracket), remove the six socket bolts that
hold the laser aperture inplace and removeit.
2. Aperture masking plate.
This metal masking plate can bemoved left and right when
locking bolt isloosened.
3. Attachment bracket.
The attachment bracket spins 360 degrees around the
laser body whilst itcan belocked indesired position bytwo
small locking handles onsides. Due tothe sophisticated
locking mechanism there’s noneed touse excessive force
when locking the system inposition.
4. Laser emission indicator.
When this indicator islit upthe laser system isready toemit
the laser radiation assoon asitreceives instructions from
control software.

KVANT Spectrum Series Specifications

General

Brand	KVANT
Model	Spectrum Series
Category	Measuring Instruments
Language	English
